SDO HMI 2014-09-30 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.91 | 0.00 | 16.52 | -20.62 | 200.86 | 4.04 | 189.53 | 0.4807 | -99.3 | -68.4 | |
|
previous
or next observation for the same group /

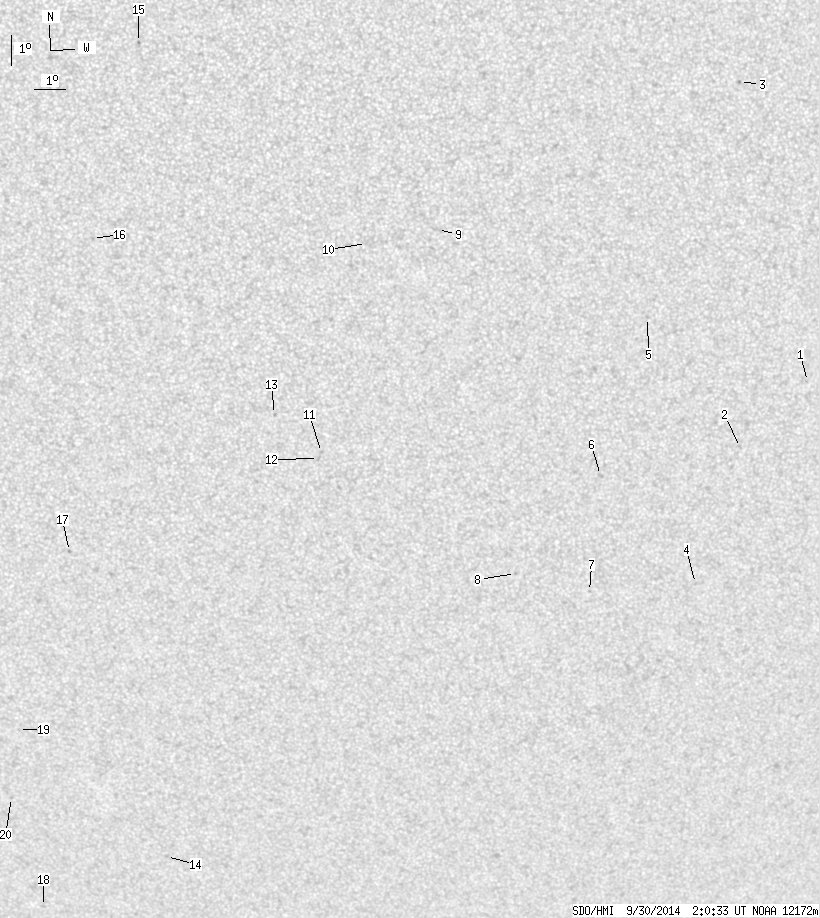

back to the solar disc SDO HMI 2014-09-30 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.66 | -18.21 | 214.18 | 17.36 | 214.19 | 0.5065 | 651.0 | 587.5 | |
| 0.00 | 1.94 | 0.00 | 1.12 | -20.34 | 212.18 | 15.36 | 208.79 | 0.5177 | 125.0 | 163.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -8.51 | 211.34 | 14.52 | 223.65 | 0.3608 | -768.0 | -662.9 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -24.99 | 211.18 | 14.35 | 203.24 | 0.5716 | 683.0 | 479.0 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -15.93 | 208.80 | 11.98 | 207.49 | 0.4342 | 710.0 | 551.6 | |
| 0.00 | 2.20 | 0.00 | 1.26 | -21.15 | 207.63 | 10.81 | 200.56 | 0.5002 | 762.0 | 542.6 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -25.17 | 207.59 | 10.77 | 197.78 | 0.5559 | 778.0 | 606.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -24.48 | 205.05 | 8.23 | 194.13 | 0.5361 | 647.0 | 534.8 | |
| 0.00 | 5.29 | 0.00 | 2.80 | -12.96 | 202.10 | 5.28 | 194.88 | 0.3505 | -6.0 | 1.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.38 | 199.91 | 3.09 | 188.65 | 0.3500 | -10.0 | -9.0 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -20.23 | 198.57 | 1.75 | 183.61 | 0.4569 | -885.0 | -694.6 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -20.43 | 198.48 | 1.66 | 183.39 | 0.4600 | -602.0 | -529.4 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -18.95 | 197.07 | 0.25 | 180.54 | 0.4360 | -710.0 | -588.9 | |
| 0.00 | 1.41 | 0.00 | 0.94 | -35.01 | 193.12 | -3.70 | 175.46 | 0.6707 | -71.0 | -54.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.06 | 192.95 | -3.87 | 164.36 | 0.2494 | -723.0 | -600.9 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.23 | 191.45 | -5.37 | 165.06 | 0.3553 | -645.0 | -491.7 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -23.66 | 190.33 | -6.49 | 168.44 | 0.5185 | -746.0 | -611.3 | |
| 0.00 | 1.41 | 0.00 | 0.98 | -37.13 | 188.35 | -8.47 | 170.38 | 0.7047 | -81.0 | -151.8 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -30.13 | 188.15 | -8.67 | 167.73 | 0.6157 | -488.0 | -419.8 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -32.74 | 187.65 | -9.17 | 168.08 | 0.6515 | -608.0 | -529.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
