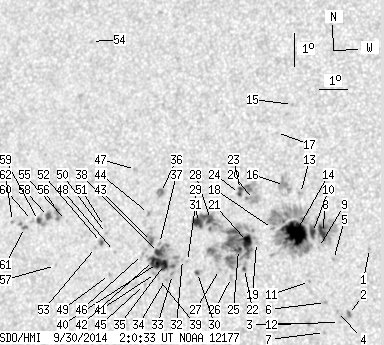

SDO HMI 2014-09-30 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.89 | 505.59 | 54.66 | 285.21 | 12.12 | 168.45 | -28.37 | 76.95 | 0.4784 | -114.1 | 47.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.67 | 11.92 | 173.07 | -23.75 | 75.86 | 0.4081 | -839.0 | -676.3 | |
| 0.00 | 3.53 | 0.00 | 1.92 | 9.90 | 172.54 | -24.28 | 80.92 | 0.4120 | -930.0 | -810.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 9.65 | 172.26 | -24.57 | 81.60 | 0.4161 | -766.0 | -658.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 9.98 | 172.16 | -24.66 | 80.83 | 0.4180 | -842.0 | -669.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 11.53 | 171.89 | -24.93 | 77.23 | 0.4252 | -703.0 | -498.1 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 10.23 | 171.74 | -25.08 | 80.34 | 0.4250 | -847.0 | -650.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 9.32 | 171.78 | -25.04 | 82.46 | 0.4232 | -659.0 | -559.3 | |
| 6.44 | 37.56 | 3.54 | 20.61 | 12.32 | 171.44 | -25.38 | 75.57 | 0.4342 | -1164.5 | -562.6 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 11.87 | 171.35 | -25.47 | 76.65 | 0.4343 | -749.0 | -581.8 | |
| 3.26 | 156.50 | 1.80 | 86.72 | 12.31 | 171.10 | -25.72 | 75.74 | 0.4393 | -1100.9 | -287.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 10.83 | 171.14 | -25.68 | 79.09 | 0.4352 | -467.0 | -323.5 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 9.57 | 171.22 | -25.60 | 81.98 | 0.4321 | -809.0 | -681.2 | |
| 0.00 | 2.03 | 0.00 | 1.12 | 13.46 | 170.56 | -26.26 | 73.41 | 0.4508 | -845.0 | -640.5 | |
| 36.59 | -10.00 | 20.25 | -10.00 | 12.28 | 170.52 | -26.30 | 76.02 | 0.4480 | -1135.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 16.14 | 169.93 | -26.89 | 68.07 | 0.4702 | -740.0 | -594.6 | |
| 0.00 | 11.20 | 0.00 | 6.24 | 13.68 | 169.98 | -26.84 | 73.20 | 0.4601 | 64.0 | -136.2 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 15.26 | 169.50 | -27.32 | 70.11 | 0.4728 | -571.0 | -478.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 12.36 | 169.72 | -27.10 | 76.13 | 0.4602 | -640.0 | -549.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 11.91 | 169.22 | -27.60 | 77.25 | 0.4667 | -704.0 | -520.2 | |
| 0.00 | 8.73 | 0.00 | 4.90 | 13.20 | 168.96 | -27.86 | 74.63 | 0.4737 | 564.0 | 566.7 | |
| 8.29 | 132.43 | 4.65 | 74.77 | 11.92 | 168.90 | -27.92 | 77.32 | 0.4715 | -977.7 | 128.0 | |
| 0.88 | 3.61 | 0.49 | 2.03 | 11.11 | 168.89 | -27.93 | 79.05 | 0.4701 | 838.1 | 342.3 | |
| 0.97 | 14.11 | 0.55 | 7.95 | 13.48 | 168.47 | -28.35 | 74.24 | 0.4817 | 793.3 | 663.7 | |
| 0.88 | -23.00 | 0.50 | -23.00 | 13.35 | 168.46 | -28.37 | 74.49 | 0.4817 | 930.7 | 999999 | |
| 2.73 | -21.00 | 1.54 | -21.00 | 11.67 | 168.62 | -28.20 | 77.94 | 0.4752 | -822.6 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.44 | 10.81 | 168.47 | -28.35 | 79.77 | 0.4760 | 648.0 | 667.3 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 11.03 | 168.03 | -28.80 | 79.41 | 0.4830 | 840.0 | 671.2 | |
| 3.00 | -21.00 | 1.70 | -21.00 | 12.52 | 167.54 | -29.28 | 76.50 | 0.4931 | 1092.4 | 999999 | |
| 6.35 | -21.00 | 3.62 | -21.00 | 12.40 | 167.09 | -29.73 | 76.86 | 0.4993 | 886.5 | 999999 | |
| 0.88 | 3.09 | 0.50 | 1.76 | 10.90 | 167.27 | -29.55 | 79.83 | 0.4941 | 917.3 | 609.6 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 11.21 | 166.88 | -29.94 | 79.29 | 0.5003 | 789.0 | 604.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 11.26 | 166.70 | -30.12 | 79.22 | 0.5031 | 856.0 | 742.6 | |
| 0.00 | 2.12 | 0.00 | 1.21 | 10.79 | 166.40 | -30.43 | 80.21 | 0.5068 | 705.0 | 725.1 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 10.62 | 166.17 | -30.66 | 80.57 | 0.5100 | 625.0 | 614.2 | |
| 5.82 | 46.38 | 3.35 | 26.74 | 11.07 | 166.08 | -30.74 | 79.71 | 0.5119 | 1067.8 | 702.8 | |
| 0.00 | 5.11 | 0.00 | 2.97 | 13.23 | 165.66 | -31.16 | 75.65 | 0.5220 | 980.0 | 806.7 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 11.69 | 165.83 | -30.99 | 78.55 | 0.5166 | 758.0 | 637.7 | |
| 4.06 | -35.00 | 2.34 | -35.00 | 11.42 | 165.82 | -31.00 | 79.08 | 0.5162 | 1052.8 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 10.64 | 165.91 | -30.91 | 80.58 | 0.5138 | 605.0 | 545.7 | |
| 5.38 | -35.00 | 3.10 | -35.00 | 11.09 | 165.83 | -30.99 | 79.72 | 0.5156 | 1025.5 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.83 | 10.78 | 165.79 | -31.03 | 80.32 | 0.5158 | 477.0 | 446.3 | |
| 4.14 | -35.00 | 2.40 | -35.00 | 11.17 | 165.67 | -31.15 | 79.59 | 0.5180 | 784.1 | 999999 | |
| 0.88 | 8.91 | 0.51 | 5.16 | 11.73 | 165.53 | -31.29 | 78.53 | 0.5209 | 928.7 | 680.1 | |
| 0.00 | 1.85 | 0.00 | 1.08 | 12.57 | 165.32 | -31.50 | 76.99 | 0.5255 | 886.0 | 706.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 10.43 | 165.44 | -31.38 | 81.06 | 0.5205 | 474.0 | 369.2 | |
| 0.00 | 4.06 | 0.00 | 2.36 | 11.32 | 165.26 | -31.56 | 79.37 | 0.5242 | 493.0 | 380.6 | |
| 0.00 | 1.85 | 0.00 | 1.09 | 13.86 | 164.66 | -32.16 | 74.75 | 0.5378 | 840.0 | 562.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 11.35 | 164.24 | -32.58 | 79.49 | 0.5390 | -721.0 | -555.1 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 10.65 | 164.15 | -32.67 | 80.80 | 0.5396 | -705.0 | -557.7 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 11.88 | 163.88 | -32.94 | 78.59 | 0.5449 | -740.0 | -570.5 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 12.08 | 163.78 | -33.04 | 78.23 | 0.5467 | -533.0 | -410.4 | |
| 0.97 | 3.44 | 0.57 | 2.03 | 11.59 | 163.74 | -33.08 | 79.13 | 0.5466 | -836.8 | -621.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 11.43 | 163.54 | -33.28 | 79.46 | 0.5492 | -622.0 | -463.0 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 17.63 | 162.31 | -34.51 | 68.92 | 0.5808 | 577.0 | 378.6 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 12.17 | 162.36 | -34.46 | 78.33 | 0.5669 | 785.0 | 702.7 | |
| 0.62 | 7.41 | 0.37 | 4.47 | 12.45 | 161.98 | -34.84 | 77.91 | 0.5726 | 882.7 | 762.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 10.80 | 162.14 | -34.68 | 80.79 | 0.5684 | 432.0 | 349.7 | |
| 2.20 | 4.58 | 1.33 | 2.78 | 12.25 | 161.68 | -35.15 | 78.32 | 0.5766 | 891.1 | 726.8 | |
| 1.76 | 5.55 | 1.07 | 3.37 | 12.11 | 161.32 | -35.50 | 78.62 | 0.5814 | 908.7 | 691.3 | |
| 0.00 | 1.85 | 0.00 | 1.13 | 12.09 | 161.10 | -35.73 | 78.68 | 0.5845 | 709.0 | 607.8 | |
| 0.79 | 4.50 | 0.48 | 2.75 | 11.86 | 160.83 | -35.99 | 79.12 | 0.5879 | 831.4 | 655.5 | |
| 0.00 | 1.23 | 0.00 | 0.76 | 12.01 | 160.35 | -36.47 | 78.93 | 0.5947 | 556.0 | 447.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
