SDO HMI 2014-09-30 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.49 | 653.68 | 149.81 | 737.02 | 15.15 | 260.91 | 64.64 | 283.63 | 0.8981 | -23.9 | -93.3 | |
|
previous
or next observation for the same group /

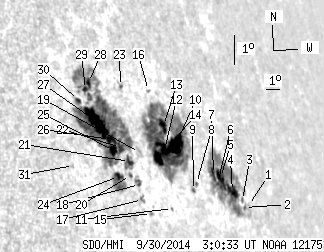

back to the solar disc SDO HMI 2014-09-30 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 1.77 | 12.78 | 266.94 | 70.66 | 281.16 | 0.9395 | 329.0 | 286.5 | |
| 0.62 | 4.23 | 0.87 | 5.99 | 12.76 | 266.55 | 70.28 | 281.12 | 0.9372 | -209.9 | 66.0 | |
| 0.00 | 1.68 | 0.00 | 2.35 | 12.98 | 266.51 | 70.24 | 281.35 | 0.9369 | -143.0 | -83.4 | |
| 9.44 | 122.22 | 12.83 | 162.90 | 13.33 | 265.83 | 69.55 | 281.70 | 0.9327 | -424.5 | -208.1 | |
| 5.11 | -4.00 | 6.72 | -4.00 | 13.84 | 265.10 | 68.83 | 282.23 | 0.9280 | -513.4 | 999999 | |
| 1.59 | -4.00 | 2.06 | -4.00 | 13.70 | 264.75 | 68.48 | 282.06 | 0.9258 | -695.6 | 999999 | |
| 5.38 | -4.00 | 6.93 | -4.00 | 13.99 | 264.59 | 68.32 | 282.37 | 0.9248 | -721.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.93 | 13.87 | 263.12 | 66.85 | 282.20 | 0.9150 | -535.0 | -533.4 | |
| 0.62 | 2.12 | 0.74 | 2.54 | 13.69 | 262.78 | 66.51 | 282.00 | 0.9127 | -530.6 | -498.9 | |
| 19.93 | 213.30 | 23.48 | 246.69 | 15.14 | 262.24 | 65.97 | 283.58 | 0.9087 | -604.7 | -380.3 | |
| 0.00 | 0.97 | 0.00 | 1.09 | 13.33 | 261.00 | 64.72 | 281.56 | 0.8999 | 191.0 | 196.2 | |
| 9.88 | -10.00 | 11.25 | -10.00 | 15.11 | 261.38 | 65.11 | 283.54 | 0.9026 | -1010.1 | 999999 | |
| 6.97 | -10.00 | 8.04 | -10.00 | 15.82 | 261.74 | 65.47 | 284.33 | 0.9052 | -636.1 | 999999 | |
| 8.64 | -10.00 | 9.66 | -10.00 | 14.89 | 260.81 | 64.54 | 283.30 | 0.8984 | 145.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.51 | 13.33 | 259.50 | 63.23 | 281.53 | 0.8886 | -23.0 | -19.1 | |
| 0.00 | 1.41 | 0.00 | 1.61 | 16.95 | 261.34 | 65.07 | 285.58 | 0.9023 | -557.0 | -521.4 | |
| 0.00 | 3.00 | 0.00 | 3.17 | 13.81 | 259.11 | 62.84 | 282.06 | 0.8855 | 585.0 | 476.8 | |
| 0.71 | 6.00 | 0.75 | 6.34 | 14.27 | 259.13 | 62.86 | 282.58 | 0.8856 | 491.9 | 395.9 | |
| 0.00 | 4.41 | 0.00 | 4.74 | 15.20 | 259.63 | 63.36 | 283.64 | 0.8895 | -233.0 | -234.9 | |
| 0.62 | 1.85 | 0.64 | 1.93 | 14.59 | 258.68 | 62.41 | 282.95 | 0.8821 | 404.3 | 336.1 | |
| 3.53 | 11.11 | 3.70 | 11.62 | 15.01 | 258.83 | 62.56 | 283.42 | 0.8832 | 413.3 | 368.9 | |
| 5.38 | 255.90 | 5.56 | 259.17 | 15.48 | 258.47 | 62.20 | 283.96 | 0.8804 | 279.0 | 180.8 | |
| 0.53 | 1.59 | 0.57 | 1.70 | 17.27 | 259.50 | 63.23 | 285.97 | 0.8887 | 118.5 | 8.5 | |
| 4.23 | 19.13 | 4.32 | 19.47 | 14.64 | 257.91 | 61.64 | 283.01 | 0.8758 | 725.0 | 413.9 | |
| 5.73 | -22.00 | 5.85 | -22.00 | 15.44 | 257.98 | 61.71 | 283.92 | 0.8764 | 750.7 | 999999 | |
| 6.08 | -22.00 | 6.22 | -22.00 | 15.78 | 257.96 | 61.69 | 284.31 | 0.8763 | 519.6 | 999999 | |
| 32.27 | -22.00 | 32.40 | -22.00 | 16.36 | 257.41 | 61.14 | 284.99 | 0.8720 | 710.5 | 999999 | |
| 3.26 | -22.00 | 3.29 | -22.00 | 17.60 | 257.52 | 61.25 | 286.41 | 0.8731 | 327.0 | 999999 | |
| 2.03 | -22.00 | 2.03 | -22.00 | 17.41 | 257.21 | 60.94 | 286.21 | 0.8706 | 627.6 | 999999 | |
| 1.94 | -22.00 | 1.90 | -22.00 | 17.13 | 256.60 | 60.33 | 285.91 | 0.8654 | 705.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.50 | 15.24 | 255.34 | 59.07 | 283.75 | 0.8541 | 525.0 | 485.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
