SDO HMI 2014-09-30 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.30 | 40.30 | 1.16 | 20.40 | 7.71 | 208.19 | 11.92 | 275.49 | 0.2068 | -264.6 | 66.8 | |
|
previous
or next observation for the same group /

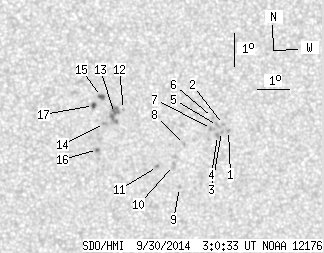

back to the solar disc SDO HMI 2014-09-30 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.77 | 7.56 | 210.52 | 14.25 | 274.05 | 0.2458 | -902.0 | -745.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 7.75 | 210.38 | 14.10 | 274.84 | 0.2434 | -783.0 | -669.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 7.54 | 210.31 | 14.03 | 273.99 | 0.2421 | -899.0 | -828.9 | |
| 0.00 | 2.20 | 0.00 | 1.12 | 7.42 | 210.18 | 13.90 | 273.53 | 0.2398 | -995.0 | -818.2 | |
| 0.00 | 2.29 | 0.00 | 1.17 | 7.72 | 210.19 | 13.91 | 274.78 | 0.2402 | -955.0 | -744.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 7.97 | 210.04 | 13.77 | 275.84 | 0.2380 | -710.0 | -546.3 | |
| 0.00 | 2.56 | 0.00 | 1.30 | 7.64 | 210.00 | 13.72 | 274.46 | 0.2369 | -828.0 | -748.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 7.18 | 209.14 | 12.87 | 272.59 | 0.2222 | -912.0 | -712.6 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 5.89 | 208.95 | 12.68 | 266.71 | 0.2197 | -692.0 | -521.7 | |
| 0.00 | 3.62 | 0.00 | 1.83 | 6.56 | 208.78 | 12.51 | 269.73 | 0.2162 | -630.0 | -382.3 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 6.54 | 208.29 | 12.02 | 269.58 | 0.2078 | -1075.0 | -841.1 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 8.28 | 207.29 | 11.01 | 278.53 | 0.1920 | 652.0 | 525.9 | |
| 0.00 | 11.55 | 0.00 | 5.82 | 8.17 | 207.00 | 10.73 | 278.11 | 0.1870 | 1033.0 | 842.0 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 7.87 | 206.69 | 10.42 | 276.70 | 0.1811 | 1085.0 | 844.0 | |
| 1.15 | 3.17 | 0.58 | 1.60 | 8.69 | 206.62 | 10.35 | 281.21 | 0.1818 | 1048.5 | 827.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 7.10 | 206.45 | 10.18 | 272.43 | 0.1764 | 1073.0 | 920.8 | |
| 1.15 | 2.20 | 0.58 | 1.11 | 8.42 | 206.36 | 10.09 | 279.97 | 0.1768 | 1128.5 | 874.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
