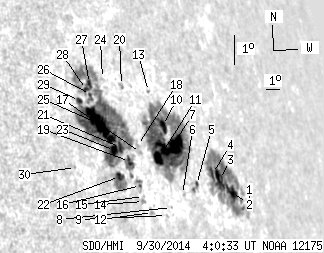

SDO HMI 2014-09-30 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.21 | 658.31 | 156.82 | 754.81 | 15.19 | 260.84 | 65.12 | 283.68 | 0.9016 | -37.2 | -83.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.56 | 0.00 | 3.74 | 12.47 | 266.87 | 71.15 | 280.86 | 0.9423 | 189.0 | 149.2 | |
| 10.58 | 121.70 | 14.74 | 166.26 | 13.30 | 265.82 | 70.09 | 281.69 | 0.9360 | -432.7 | -167.9 | |
| 10.85 | -2.00 | 14.59 | -2.00 | 13.79 | 265.05 | 69.33 | 282.18 | 0.9312 | -512.2 | 999999 | |
| 5.11 | -2.00 | 6.73 | -2.00 | 14.02 | 264.59 | 68.87 | 282.42 | 0.9283 | -721.8 | 999999 | |
| 1.06 | 4.76 | 1.32 | 5.90 | 13.84 | 263.13 | 67.41 | 282.18 | 0.9188 | -473.2 | -519.5 | |
| 0.00 | 0.71 | 0.00 | 0.84 | 13.66 | 261.92 | 66.19 | 281.96 | 0.9105 | -275.0 | -280.6 | |
| 29.01 | 215.88 | 34.47 | 254.46 | 15.15 | 261.94 | 66.21 | 283.59 | 0.9105 | -737.2 | -357.4 | |
| 0.00 | 0.26 | 0.00 | 0.30 | 13.37 | 260.92 | 65.20 | 281.61 | 0.9034 | 233.0 | 230.0 | |
| 0.00 | 0.79 | 0.00 | 0.89 | 13.17 | 260.45 | 64.73 | 281.38 | 0.9000 | 310.0 | 290.2 | |
| 7.67 | -7.00 | 9.02 | -7.00 | 15.83 | 261.67 | 65.94 | 284.34 | 0.9086 | -633.5 | 999999 | |
| 8.29 | -7.00 | 9.43 | -7.00 | 14.89 | 260.79 | 65.07 | 283.30 | 0.9023 | 136.1 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.64 | 13.36 | 259.54 | 63.82 | 281.58 | 0.8931 | -58.0 | -28.6 | |
| 0.00 | 0.97 | 0.00 | 1.13 | 16.92 | 261.31 | 65.59 | 285.55 | 0.9061 | -606.0 | -532.0 | |
| 0.00 | 2.56 | 0.00 | 2.75 | 13.75 | 259.10 | 63.37 | 282.00 | 0.8897 | 615.0 | 472.7 | |
| 0.00 | 0.26 | 0.00 | 0.29 | 13.89 | 259.17 | 63.45 | 282.17 | 0.8902 | 528.0 | 455.7 | |
| 0.62 | 6.00 | 0.66 | 6.45 | 14.23 | 259.14 | 63.41 | 282.55 | 0.8899 | 485.1 | 404.9 | |
| 0.00 | 2.29 | 0.00 | 2.51 | 15.20 | 259.65 | 63.93 | 283.64 | 0.8939 | -211.0 | -212.1 | |
| 0.00 | 1.50 | 0.00 | 1.64 | 15.43 | 259.57 | 63.84 | 283.89 | 0.8932 | -316.0 | -278.2 | |
| 3.35 | 14.99 | 3.57 | 15.96 | 15.01 | 258.78 | 63.05 | 283.43 | 0.8871 | 430.9 | 284.9 | |
| 0.00 | 3.09 | 0.00 | 3.37 | 17.30 | 259.55 | 63.83 | 285.99 | 0.8933 | 187.0 | 52.7 | |
| 4.32 | 257.85 | 4.55 | 265.37 | 15.49 | 258.41 | 62.69 | 283.97 | 0.8843 | 270.3 | 161.3 | |
| 4.94 | 19.49 | 5.12 | 20.15 | 14.64 | 257.90 | 62.18 | 283.01 | 0.8802 | 744.2 | 397.7 | |
| 6.44 | -21.00 | 6.68 | -21.00 | 15.44 | 257.98 | 62.25 | 283.92 | 0.8808 | 735.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.74 | 17.63 | 258.42 | 62.70 | 286.40 | 0.8847 | -228.0 | -195.2 | |
| 36.60 | -21.00 | 37.44 | -21.00 | 16.29 | 257.50 | 61.78 | 284.90 | 0.8771 | 688.9 | 999999 | |
| 0.88 | -21.00 | 0.90 | -21.00 | 17.24 | 257.37 | 61.65 | 285.99 | 0.8763 | 365.2 | 999999 | |
| 3.17 | -21.00 | 3.25 | -21.00 | 17.57 | 257.50 | 61.77 | 286.36 | 0.8774 | 371.4 | 999999 | |
| 2.12 | -21.00 | 2.15 | -21.00 | 17.41 | 257.20 | 61.48 | 286.19 | 0.8750 | 610.2 | 999999 | |
| 2.20 | -21.00 | 2.20 | -21.00 | 17.13 | 256.58 | 60.86 | 285.89 | 0.8698 | 694.4 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.42 | 15.18 | 255.33 | 59.60 | 283.67 | 0.8588 | 513.0 | 436.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
