SDO HMI 2014-09-30 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.94 | 456.85 | 53.51 | 255.06 | 12.07 | 168.61 | -27.11 | 76.65 | 0.4596 | -80.1 | 15.0 | |
|
previous
or next observation for the same group /

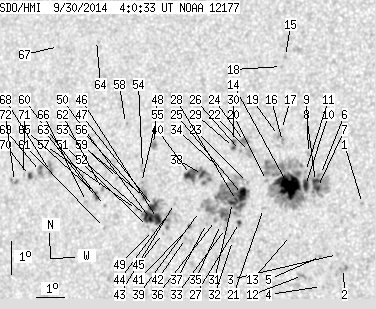

back to the solar disc SDO HMI 2014-09-30 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.57 | 11.86 | 173.01 | -22.71 | 75.50 | 0.3919 | -906.0 | -709.4 | |
| 0.00 | 4.32 | 0.00 | 2.33 | 9.88 | 172.54 | -23.18 | 80.68 | 0.3947 | -677.0 | -785.0 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 10.29 | 172.31 | -23.41 | 79.71 | 0.3991 | -838.0 | -603.9 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 9.31 | 171.85 | -23.87 | 82.27 | 0.4048 | -388.0 | -465.0 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 10.21 | 171.75 | -23.97 | 80.08 | 0.4077 | -888.0 | -794.5 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 12.67 | 171.53 | -24.19 | 74.23 | 0.4172 | -428.0 | -548.6 | |
| 3.00 | 171.08 | 1.63 | 93.79 | 12.28 | 171.47 | -24.26 | 75.19 | 0.4170 | -1274.9 | -379.3 | |
| 3.09 | -7.00 | 1.68 | -7.00 | 12.46 | 171.38 | -24.34 | 74.81 | 0.4188 | -1116.4 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.21 | 13.29 | 171.06 | -24.66 | 73.03 | 0.4264 | -771.0 | -534.8 | |
| 4.14 | -7.00 | 2.26 | -7.00 | 12.32 | 171.06 | -24.67 | 75.27 | 0.4234 | -1077.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 12.74 | 171.01 | -24.71 | 74.31 | 0.4253 | -502.0 | -367.1 | |
| 0.00 | 2.82 | 0.00 | 1.54 | 9.61 | 171.19 | -24.53 | 81.66 | 0.4155 | -613.0 | -474.0 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 10.79 | 170.69 | -25.03 | 78.98 | 0.4252 | 432.0 | 424.6 | |
| 36.24 | -7.00 | 19.89 | -7.00 | 12.29 | 170.48 | -25.24 | 75.57 | 0.4320 | -1136.4 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 16.18 | 169.91 | -25.81 | 67.31 | 0.4551 | -738.0 | -618.4 | |
| 0.00 | 2.12 | 0.00 | 1.17 | 13.61 | 170.14 | -25.59 | 72.76 | 0.4413 | -574.0 | -529.7 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 13.97 | 170.06 | -25.66 | 72.00 | 0.4438 | -534.0 | -414.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 15.87 | 169.82 | -25.91 | 68.03 | 0.4551 | -788.0 | -613.4 | |
| 0.00 | 1.94 | 0.00 | 1.07 | 13.78 | 169.98 | -25.74 | 72.45 | 0.4443 | -38.0 | -18.3 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 12.41 | 169.72 | -26.00 | 75.61 | 0.4439 | -702.0 | -493.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 11.56 | 169.70 | -26.02 | 77.52 | 0.4420 | -718.0 | -622.1 | |
| 0.00 | 7.67 | 0.00 | 4.27 | 13.25 | 169.04 | -26.68 | 74.04 | 0.4565 | 392.0 | 411.6 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 12.31 | 169.08 | -26.65 | 76.06 | 0.4533 | -616.0 | -531.5 | |
| 0.00 | 5.38 | 0.00 | 3.00 | 13.54 | 168.83 | -26.89 | 73.50 | 0.4605 | 969.0 | 757.3 | |
| 8.20 | 104.76 | 4.56 | 58.42 | 11.94 | 168.95 | -26.78 | 76.91 | 0.4544 | -1054.6 | -44.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 13.26 | 168.73 | -27.00 | 74.13 | 0.4612 | 909.0 | 746.1 | |
| 0.97 | 2.12 | 0.54 | 1.17 | 11.10 | 168.93 | -26.79 | 78.77 | 0.4529 | 879.8 | 642.8 | |
| 2.20 | -25.00 | 1.23 | -25.00 | 11.75 | 168.76 | -26.96 | 77.38 | 0.4568 | -883.3 | 999999 | |
| 0.71 | 1.76 | 0.39 | 0.99 | 13.34 | 168.48 | -27.25 | 74.07 | 0.4652 | 933.2 | 771.1 | |
| 0.71 | 2.03 | 0.39 | 1.13 | 13.52 | 168.45 | -27.27 | 73.70 | 0.4661 | 780.8 | 650.7 | |
| 1.76 | -25.00 | 0.98 | -25.00 | 11.69 | 168.63 | -27.10 | 77.57 | 0.4586 | -776.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 10.54 | 168.74 | -26.98 | 80.03 | 0.4548 | 730.0 | 502.1 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 10.89 | 168.47 | -27.26 | 79.34 | 0.4595 | 896.0 | 775.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 12.63 | 168.14 | -27.58 | 75.71 | 0.4681 | 676.0 | 559.0 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 11.00 | 168.28 | -27.44 | 79.14 | 0.4625 | 710.0 | 557.2 | |
| 0.00 | 1.85 | 0.00 | 1.04 | 11.11 | 168.10 | -27.62 | 78.94 | 0.4655 | 980.0 | 752.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 11.01 | 167.80 | -27.92 | 79.24 | 0.4698 | 830.0 | 692.0 | |
| 2.38 | 26.37 | 1.34 | 14.87 | 12.47 | 167.50 | -28.22 | 76.25 | 0.4773 | 1076.9 | 772.6 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 11.35 | 167.52 | -28.20 | 78.58 | 0.4747 | -236.0 | -237.2 | |
| 8.29 | -38.00 | 4.68 | -38.00 | 12.45 | 167.08 | -28.64 | 76.42 | 0.4835 | 867.5 | 999999 | |
| 0.53 | 1.32 | 0.30 | 0.75 | 10.89 | 167.22 | -28.50 | 79.63 | 0.4783 | 912.0 | 810.4 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 10.52 | 167.12 | -28.60 | 80.42 | 0.4793 | 835.0 | 627.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 11.55 | 166.62 | -29.10 | 78.40 | 0.4884 | 749.0 | 618.1 | |
| 0.00 | 3.17 | 0.00 | 1.80 | 11.24 | 166.45 | -29.27 | 79.07 | 0.4905 | 894.0 | 804.7 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 10.62 | 166.30 | -29.42 | 80.35 | 0.4917 | 809.0 | 664.8 | |
| 6.17 | 42.51 | 3.52 | 24.23 | 11.06 | 166.08 | -29.64 | 79.50 | 0.4957 | 1086.2 | 723.5 | |
| 4.41 | -46.00 | 2.52 | -46.00 | 11.42 | 165.90 | -29.82 | 78.83 | 0.4989 | 1083.0 | 999999 | |
| 0.00 | 4.23 | 0.00 | 2.43 | 13.28 | 165.67 | -30.06 | 75.20 | 0.5062 | 813.0 | 742.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 10.69 | 165.94 | -29.78 | 80.27 | 0.4972 | 642.0 | 515.8 | |
| 4.14 | -46.00 | 2.37 | -46.00 | 11.05 | 165.84 | -29.89 | 79.57 | 0.4993 | 1062.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 10.80 | 165.76 | -29.97 | 80.08 | 0.5001 | 605.0 | 447.8 | |
| 3.97 | -46.00 | 2.27 | -46.00 | 11.10 | 165.69 | -30.04 | 79.50 | 0.5016 | 829.5 | 999999 | |
| 1.32 | 5.20 | 0.76 | 2.98 | 11.67 | 165.55 | -30.17 | 78.40 | 0.5045 | 914.5 | 724.7 | |
| 0.00 | 2.91 | 0.00 | 1.67 | 12.54 | 165.37 | -30.35 | 76.74 | 0.5088 | 404.0 | 582.2 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 12.11 | 165.39 | -30.33 | 77.57 | 0.5077 | 713.0 | 612.1 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 11.81 | 165.32 | -30.40 | 78.18 | 0.5081 | 527.0 | 455.2 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 11.29 | 165.31 | -30.41 | 79.20 | 0.5074 | 610.0 | 516.6 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 13.86 | 164.58 | -31.14 | 74.44 | 0.5233 | 680.0 | 727.2 | |
| 0.00 | 1.23 | 0.00 | 0.72 | 12.18 | 164.52 | -31.20 | 77.64 | 0.5205 | 364.0 | 396.4 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 11.35 | 164.16 | -31.56 | 79.31 | 0.5243 | -880.0 | -642.3 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 10.69 | 164.24 | -31.49 | 80.56 | 0.5223 | -685.0 | -541.6 | |
| 0.00 | 2.03 | 0.00 | 1.18 | 11.82 | 164.03 | -31.70 | 78.44 | 0.5270 | -787.0 | -614.7 | |
| 0.62 | 3.70 | 0.36 | 2.16 | 11.57 | 163.84 | -31.88 | 78.95 | 0.5293 | -885.6 | -626.9 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 16.30 | 163.11 | -32.62 | 70.48 | 0.5510 | 472.0 | 575.0 | |
| 0.62 | -63.00 | 0.36 | -63.00 | 11.69 | 163.79 | -31.93 | 78.74 | 0.5302 | -670.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 11.43 | 163.50 | -32.22 | 79.28 | 0.5340 | -720.0 | -548.9 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 16.03 | 161.73 | -33.99 | 71.45 | 0.5689 | 556.0 | 351.3 | |
| 0.71 | 5.56 | 0.42 | 3.31 | 12.25 | 162.07 | -33.65 | 78.04 | 0.5557 | 985.2 | 754.4 | |
| 0.00 | 6.08 | 0.00 | 3.63 | 12.22 | 161.70 | -34.02 | 78.15 | 0.5609 | 920.0 | 721.8 | |
| 1.76 | 3.09 | 1.06 | 1.85 | 12.08 | 161.31 | -34.41 | 78.48 | 0.5661 | 893.0 | 686.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 12.09 | 161.09 | -34.64 | 78.49 | 0.5693 | 666.0 | 481.6 | |
| 0.00 | 4.14 | 0.00 | 2.50 | 11.86 | 160.79 | -34.94 | 78.95 | 0.5732 | 698.0 | 680.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
