SDO HMI 2014-09-30 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.70 | 49.91 | 10.06 | 32.26 | -12.00 | 160.57 | -35.15 | 118.16 | 0.6414 | -160.9 | 141.8 | |
|
previous
or next observation for the same group /

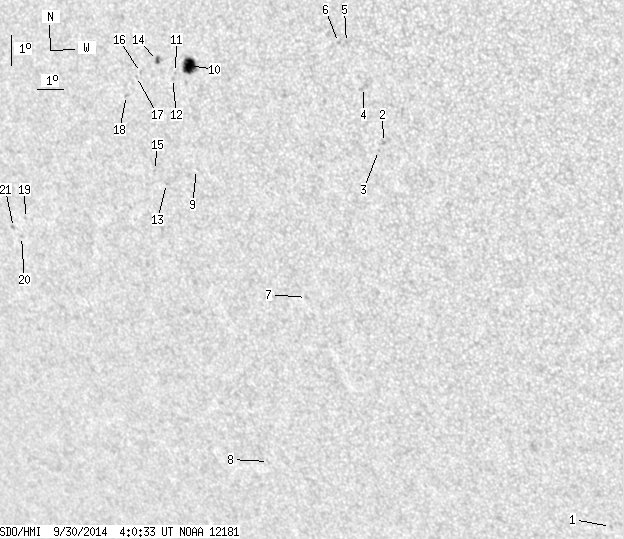

back to the solar disc SDO HMI 2014-09-30 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.72 | -24.53 | 172.92 | -22.80 | 145.40 | 0.6232 | 619.0 | 526.2 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -12.12 | 166.90 | -28.82 | 123.30 | 0.5660 | 809.0 | 723.0 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -12.39 | 166.70 | -29.03 | 123.51 | 0.5706 | 608.0 | 461.8 | |
| 0.00 | 4.67 | 0.00 | 2.79 | -10.42 | 166.39 | -29.33 | 120.23 | 0.5597 | 720.0 | 528.2 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -9.04 | 165.94 | -29.79 | 117.65 | 0.5561 | 779.0 | 610.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -9.06 | 165.65 | -30.07 | 117.45 | 0.5598 | 625.0 | 502.8 | |
| 0.00 | 2.12 | 0.00 | 1.37 | -17.33 | 163.29 | -32.43 | 127.36 | 0.6464 | 528.0 | 449.9 | |
| 0.00 | 1.41 | 0.00 | 1.00 | -23.03 | 160.40 | -35.32 | 131.88 | 0.7170 | 532.0 | 515.1 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -13.44 | 159.88 | -35.84 | 119.61 | 0.6574 | -477.0 | -478.0 | |
| 14.20 | 19.14 | 9.09 | 12.25 | -10.14 | 160.12 | -35.61 | 115.15 | 0.6354 | -902.3 | -405.8 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -10.39 | 159.55 | -36.17 | 115.17 | 0.6437 | -445.0 | -398.3 | |
| 0.00 | 1.41 | 0.00 | 0.91 | -10.59 | 159.41 | -36.31 | 115.36 | 0.6465 | -575.0 | -404.9 | |
| 0.00 | 1.41 | 0.00 | 0.94 | -13.97 | 158.62 | -37.10 | 119.49 | 0.6748 | -705.0 | -504.6 | |
| 1.50 | 4.23 | 0.97 | 2.75 | -10.06 | 158.91 | -36.81 | 114.31 | 0.6496 | 751.5 | 641.3 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -13.59 | 158.23 | -37.49 | 118.72 | 0.6770 | -570.0 | -480.5 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -10.49 | 158.20 | -37.52 | 114.49 | 0.6604 | 700.0 | 601.8 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -10.63 | 158.03 | -37.70 | 114.58 | 0.6632 | 614.0 | 497.6 | |
| 0.00 | 1.85 | 0.00 | 1.24 | -11.26 | 157.54 | -38.18 | 115.17 | 0.6722 | 660.0 | 457.1 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -15.58 | 152.51 | -43.21 | 117.91 | 0.7487 | -608.0 | -516.0 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -16.19 | 152.17 | -43.55 | 118.47 | 0.7551 | -583.0 | -483.3 | |
| 0.00 | 1.68 | 0.00 | 1.26 | -15.92 | 151.90 | -43.82 | 118.01 | 0.7565 | -434.0 | -332.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
