SDO HMI 2014-09-30 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.52 | 453.60 | 53.02 | 251.84 | 12.01 | 168.74 | -26.44 | 76.53 | 0.4494 | -49.8 | 11.6 | |
|
previous
or next observation for the same group /

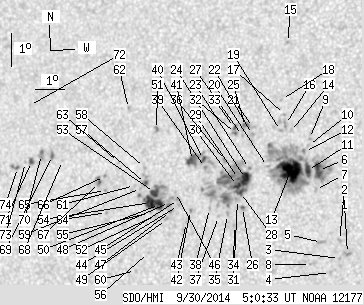

back to the solar disc SDO HMI 2014-09-30 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.91 | 0.00 | 1.56 | 9.88 | 172.59 | -22.59 | 80.52 | 0.3853 | -940.0 | -871.5 | |
| 0.00 | 1.85 | 0.00 | 1.00 | 10.26 | 172.29 | -22.88 | 79.63 | 0.3906 | -853.0 | -670.4 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 9.72 | 172.33 | -22.84 | 81.01 | 0.3891 | -881.0 | -678.8 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 9.28 | 172.07 | -23.11 | 82.18 | 0.3927 | -710.0 | -545.0 | |
| 0.00 | 3.26 | 0.00 | 1.76 | 10.17 | 171.70 | -23.47 | 80.02 | 0.3998 | -785.0 | -674.2 | |
| 7.14 | 32.63 | 3.88 | 17.69 | 12.33 | 171.42 | -23.76 | 74.83 | 0.4095 | -1177.4 | -617.8 | |
| 0.00 | 1.85 | 0.00 | 1.00 | 11.75 | 171.37 | -23.81 | 76.24 | 0.4086 | -724.0 | -531.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 9.49 | 171.39 | -23.79 | 81.79 | 0.4037 | -649.0 | -542.1 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 13.28 | 171.02 | -24.16 | 72.78 | 0.4188 | -867.0 | -726.1 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 13.07 | 171.01 | -24.17 | 73.28 | 0.4182 | -345.0 | -346.7 | |
| 5.56 | 142.07 | 3.02 | 77.68 | 12.31 | 171.05 | -24.13 | 75.04 | 0.4151 | -1046.9 | -335.4 | |
| 0.00 | 1.94 | 0.00 | 1.06 | 12.88 | 170.89 | -24.28 | 73.78 | 0.4193 | -472.0 | -483.7 | |
| 32.28 | -11.00 | 17.64 | -11.00 | 12.29 | 170.48 | -24.70 | 75.35 | 0.4238 | -1171.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 13.46 | 170.35 | -24.82 | 72.70 | 0.4294 | -540.0 | -355.3 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 16.15 | 169.92 | -25.25 | 67.01 | 0.4470 | -791.0 | -607.8 | |
| 0.00 | 2.38 | 0.00 | 1.31 | 13.66 | 170.16 | -25.01 | 72.34 | 0.4330 | -651.0 | -519.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 13.97 | 170.09 | -25.08 | 71.70 | 0.4351 | -627.0 | -426.1 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 14.41 | 169.94 | -25.24 | 70.78 | 0.4392 | 155.0 | 200.3 | |
| 0.00 | 1.76 | 0.00 | 0.97 | 13.48 | 170.01 | -25.16 | 72.84 | 0.4346 | 290.0 | 229.4 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 12.37 | 169.69 | -25.49 | 75.48 | 0.4360 | -567.0 | -360.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 13.52 | 169.08 | -26.09 | 73.18 | 0.4486 | 346.0 | 310.4 | |
| 0.00 | 2.12 | 0.00 | 1.17 | 13.31 | 169.07 | -26.10 | 73.65 | 0.4481 | 361.0 | 314.6 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 12.28 | 169.08 | -26.09 | 75.92 | 0.4450 | -611.0 | -487.3 | |
| 9.61 | 105.21 | 5.31 | 58.41 | 11.97 | 168.98 | -26.20 | 76.64 | 0.4458 | -1046.9 | 29.9 | |
| 0.00 | 4.85 | 0.00 | 2.69 | 13.54 | 168.80 | -26.37 | 73.27 | 0.4528 | 785.0 | 753.3 | |
| 0.44 | 1.23 | 0.24 | 0.68 | 11.10 | 168.96 | -26.21 | 78.61 | 0.4440 | 895.8 | 761.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 13.26 | 168.73 | -26.44 | 73.90 | 0.4530 | 970.0 | 777.5 | |
| 1.68 | -24.00 | 0.93 | -24.00 | 11.54 | 168.85 | -26.33 | 77.64 | 0.4467 | -877.5 | 999999 | |
| 0.26 | -24.00 | 0.15 | -24.00 | 11.96 | 168.74 | -26.44 | 76.75 | 0.4493 | -762.0 | 999999 | |
| 3.44 | -24.00 | 1.90 | -24.00 | 11.75 | 168.73 | -26.45 | 77.22 | 0.4490 | -884.9 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.22 | 11.33 | 168.77 | -26.41 | 78.14 | 0.4475 | -124.0 | -184.9 | |
| 0.53 | 3.88 | 0.29 | 2.16 | 13.31 | 168.48 | -26.69 | 73.90 | 0.4568 | 953.8 | 591.4 | |
| 0.71 | -32.00 | 0.39 | -32.00 | 13.49 | 168.43 | -26.75 | 73.54 | 0.4582 | 689.6 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 10.54 | 168.74 | -26.44 | 79.90 | 0.4464 | 522.0 | 433.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 10.86 | 168.47 | -26.71 | 79.26 | 0.4511 | 853.0 | 737.0 | |
| 0.00 | 2.82 | 0.00 | 1.57 | 12.48 | 168.23 | -26.94 | 75.79 | 0.4582 | 768.0 | 558.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 10.78 | 168.17 | -27.01 | 79.50 | 0.4556 | 742.0 | 535.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 11.01 | 167.84 | -27.34 | 79.09 | 0.4610 | 865.0 | 609.9 | |
| 0.00 | 1.59 | 0.00 | 0.89 | 12.23 | 167.57 | -27.61 | 76.54 | 0.4676 | 1048.0 | 905.8 | |
| 1.41 | 21.34 | 0.79 | 11.98 | 12.47 | 167.47 | -27.70 | 76.07 | 0.4696 | 1049.6 | 765.3 | |
| 6.09 | -40.00 | 3.42 | -40.00 | 12.42 | 167.10 | -28.08 | 76.30 | 0.4751 | 925.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 10.91 | 167.19 | -27.99 | 79.45 | 0.4706 | 934.0 | 832.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 10.55 | 167.09 | -28.09 | 80.25 | 0.4716 | 787.0 | 579.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 11.04 | 166.76 | -28.42 | 79.28 | 0.4773 | 912.0 | 838.1 | |
| 0.00 | 2.20 | 0.00 | 1.24 | 11.22 | 166.74 | -28.44 | 78.90 | 0.4779 | 916.0 | 873.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 11.43 | 166.61 | -28.56 | 78.51 | 0.4802 | 864.0 | 748.3 | |
| 0.00 | 1.76 | 0.00 | 1.00 | 10.85 | 166.50 | -28.67 | 79.74 | 0.4809 | 958.0 | 771.8 | |
| 0.00 | 5.73 | 0.00 | 3.24 | 11.11 | 166.44 | -28.74 | 79.20 | 0.4823 | 752.0 | 833.5 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 10.60 | 166.39 | -28.79 | 80.28 | 0.4822 | 681.0 | 623.7 | |
| 6.17 | 40.13 | 3.50 | 22.77 | 11.03 | 166.10 | -29.08 | 79.43 | 0.4872 | 1070.5 | 667.3 | |
| 0.00 | 2.56 | 0.00 | 1.46 | 13.28 | 165.72 | -29.45 | 74.99 | 0.4975 | 926.0 | 749.6 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 10.70 | 165.99 | -29.18 | 80.15 | 0.4883 | 691.0 | 550.8 | |
| 5.20 | -50.00 | 2.95 | -50.00 | 11.39 | 165.88 | -29.29 | 78.76 | 0.4910 | 1059.9 | 999999 | |
| 9.97 | -50.00 | 5.66 | -50.00 | 11.08 | 165.78 | -29.40 | 79.41 | 0.4921 | 904.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 10.78 | 165.81 | -29.37 | 80.02 | 0.4912 | 666.0 | 496.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 9.57 | 165.86 | -29.32 | 82.47 | 0.4890 | 696.0 | 511.7 | |
| 1.15 | 5.73 | 0.65 | 3.27 | 11.64 | 165.54 | -29.64 | 78.33 | 0.4966 | 900.7 | 715.3 | |
| 0.00 | 1.32 | 0.00 | 0.76 | 12.12 | 165.44 | -29.73 | 77.40 | 0.4989 | 792.0 | 674.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 11.48 | 165.38 | -29.80 | 78.69 | 0.4987 | 583.0 | 506.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 9.01 | 165.45 | -29.72 | 83.66 | 0.4947 | 543.0 | 407.4 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 11.56 | 165.16 | -30.02 | 78.58 | 0.5021 | 557.0 | 493.8 | |
| 0.00 | 1.50 | 0.00 | 0.86 | 13.86 | 164.64 | -30.53 | 74.22 | 0.5146 | 819.0 | 592.4 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 12.22 | 164.51 | -30.67 | 77.44 | 0.5128 | 474.0 | 386.2 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 10.69 | 164.26 | -30.92 | 80.46 | 0.5140 | -714.0 | -535.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 11.35 | 164.15 | -31.03 | 79.20 | 0.5165 | -780.0 | -654.8 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 11.77 | 164.06 | -31.11 | 78.41 | 0.5185 | -793.0 | -607.1 | |
| 0.79 | 5.20 | 0.46 | 3.02 | 11.57 | 163.91 | -31.27 | 78.81 | 0.5204 | -859.0 | -576.3 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 12.16 | 162.49 | -32.69 | 78.01 | 0.5418 | 691.0 | 455.7 | |
| 0.97 | 3.53 | 0.57 | 2.09 | 12.28 | 162.10 | -33.07 | 77.85 | 0.5475 | 952.1 | 786.1 | |
| 0.00 | 5.11 | 0.00 | 3.04 | 12.29 | 161.70 | -33.48 | 77.92 | 0.5533 | 915.0 | 779.1 | |
| 1.59 | 2.91 | 0.95 | 1.73 | 12.05 | 161.36 | -33.81 | 78.41 | 0.5577 | 928.1 | 747.1 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 13.73 | 161.03 | -34.14 | 75.50 | 0.5653 | 687.0 | 591.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 12.01 | 161.15 | -34.03 | 78.52 | 0.5607 | 470.0 | 443.9 | |
| 0.53 | 3.62 | 0.32 | 2.17 | 11.84 | 160.87 | -34.30 | 78.87 | 0.5643 | 795.8 | 660.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
