SDO HMI 2014-09-30 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.99 | 48.77 | 9.52 | 31.31 | -11.76 | 160.40 | -34.78 | 118.19 | 0.6357 | -194.2 | 36.5 | |
|
previous
or next observation for the same group /

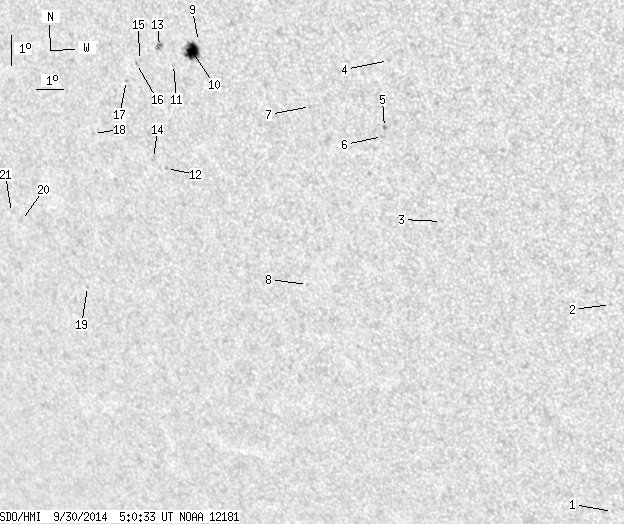

back to the solar disc SDO HMI 2014-09-30 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.44 | -24.54 | 172.94 | -22.23 | 146.07 | 0.6189 | 552.0 | 529.2 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -17.47 | 173.97 | -21.21 | 139.43 | 0.5326 | 676.0 | 469.5 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -15.04 | 168.49 | -26.68 | 129.65 | 0.5654 | 695.0 | 531.6 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -9.99 | 167.24 | -27.93 | 120.79 | 0.5391 | 714.0 | 550.8 | |
| 0.00 | 1.59 | 0.00 | 0.95 | -12.12 | 166.88 | -28.30 | 123.78 | 0.5598 | 765.0 | 702.8 | |
| 0.00 | 1.59 | 0.00 | 0.95 | -12.42 | 166.77 | -28.40 | 124.12 | 0.5633 | 590.0 | 555.1 | |
| 0.00 | 1.41 | 0.00 | 0.86 | -11.61 | 164.33 | -30.85 | 120.76 | 0.5868 | 146.0 | 274.6 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -17.40 | 163.29 | -31.89 | 127.90 | 0.6411 | 606.0 | 528.4 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -9.82 | 160.47 | -34.71 | 115.27 | 0.6227 | -580.0 | -309.9 | |
| 14.99 | 22.49 | 9.52 | 14.28 | -10.15 | 160.20 | -34.97 | 115.58 | 0.6278 | -917.8 | -352.8 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -10.62 | 159.43 | -35.75 | 115.75 | 0.6398 | -633.0 | -426.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -13.97 | 158.62 | -36.56 | 119.84 | 0.6687 | -692.0 | -620.3 | |
| 0.00 | 4.23 | 0.00 | 2.73 | -10.08 | 158.97 | -36.21 | 114.70 | 0.6424 | 800.0 | 721.7 | |
| 0.00 | 2.20 | 0.00 | 1.47 | -13.68 | 158.17 | -37.01 | 119.16 | 0.6720 | -565.0 | -554.7 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -10.58 | 158.14 | -37.04 | 114.90 | 0.6551 | 869.0 | 689.4 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -10.69 | 158.01 | -37.17 | 114.97 | 0.6572 | 686.0 | 533.0 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -11.25 | 157.54 | -37.64 | 115.47 | 0.6657 | 540.0 | 493.0 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -13.05 | 155.93 | -39.25 | 116.93 | 0.6937 | -496.0 | -406.1 | |
| 0.00 | 1.23 | 0.00 | 0.90 | -18.10 | 154.48 | -40.69 | 122.41 | 0.7364 | -597.0 | -546.7 | |
| 0.00 | 1.32 | 0.00 | 0.98 | -16.13 | 152.24 | -42.94 | 118.74 | 0.7486 | -657.0 | -519.7 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -15.91 | 151.87 | -43.30 | 118.26 | 0.7512 | -414.0 | -387.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
