SDO HMI 2014-09-30 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.28 | 452.20 | 50.45 | 249.66 | 12.03 | 168.81 | -25.81 | 76.27 | 0.4399 | -130.7 | 9.5 | |
|
previous
or next observation for the same group /

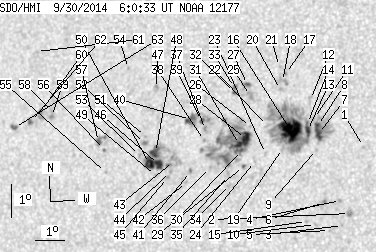

back to the solar disc SDO HMI 2014-09-30 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.52 | 11.90 | 172.94 | -21.69 | 74.88 | 0.3761 | -914.0 | -773.9 | |
| 0.00 | 4.06 | 0.00 | 2.17 | 9.87 | 172.64 | -21.99 | 80.37 | 0.3758 | -944.0 | -873.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 9.50 | 172.43 | -22.20 | 81.41 | 0.3785 | -868.0 | -722.8 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 10.24 | 172.31 | -22.32 | 79.48 | 0.3817 | -875.0 | -673.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 9.33 | 172.01 | -22.61 | 81.95 | 0.3849 | -624.0 | -606.3 | |
| 0.00 | 2.12 | 0.00 | 1.14 | 10.16 | 171.79 | -22.84 | 79.85 | 0.3898 | -900.0 | -718.1 | |
| 5.47 | 32.28 | 2.95 | 17.42 | 12.23 | 171.42 | -23.21 | 74.81 | 0.4008 | -1199.0 | -562.0 | |
| 2.12 | -7.00 | 1.14 | -7.00 | 12.47 | 171.36 | -23.27 | 74.26 | 0.4024 | -1082.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 11.74 | 171.39 | -23.23 | 76.02 | 0.3997 | -806.0 | -649.2 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 9.49 | 171.54 | -23.09 | 81.64 | 0.3926 | -666.0 | -579.1 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 12.67 | 171.21 | -23.42 | 73.83 | 0.4055 | -474.0 | -415.7 | |
| 0.00 | 3.17 | 0.00 | 1.72 | 13.24 | 171.05 | -23.58 | 72.55 | 0.4099 | -410.0 | -485.8 | |
| 3.70 | 138.20 | 2.01 | 75.24 | 12.30 | 171.04 | -23.59 | 74.81 | 0.4068 | -1099.1 | -354.7 | |
| 0.26 | -13.00 | 0.14 | -13.00 | 12.51 | 171.02 | -23.61 | 74.31 | 0.4078 | -869.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 9.56 | 171.24 | -23.39 | 81.51 | 0.3975 | -642.0 | -469.6 | |
| 32.45 | -13.00 | 17.66 | -13.00 | 12.30 | 170.47 | -24.16 | 75.06 | 0.4156 | -1182.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 13.98 | 170.13 | -24.50 | 71.33 | 0.4266 | -648.0 | -521.8 | |
| 0.00 | 6.09 | 0.00 | 3.33 | 13.74 | 170.05 | -24.58 | 71.93 | 0.4268 | -131.0 | -234.9 | |
| 0.00 | 2.03 | 0.00 | 1.10 | 11.72 | 170.26 | -24.37 | 76.54 | 0.4172 | -492.0 | -412.2 | |
| 0.00 | 1.85 | 0.00 | 1.01 | 13.49 | 170.01 | -24.62 | 72.51 | 0.4265 | 500.0 | 269.8 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 14.19 | 169.90 | -24.73 | 71.00 | 0.4308 | 559.0 | 400.2 | |
| 0.00 | 2.03 | 0.00 | 1.11 | 12.39 | 169.68 | -24.94 | 75.21 | 0.4278 | -480.0 | -322.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 11.54 | 169.70 | -24.93 | 77.16 | 0.4253 | -668.0 | -541.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 11.28 | 169.35 | -25.28 | 77.88 | 0.4301 | -540.0 | -348.6 | |
| 0.00 | 4.94 | 0.00 | 2.72 | 13.26 | 169.01 | -25.62 | 73.52 | 0.4407 | 333.0 | 444.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 12.33 | 169.11 | -25.52 | 75.57 | 0.4364 | -585.0 | -439.6 | |
| 1.15 | 4.85 | 0.63 | 2.68 | 13.59 | 168.87 | -25.76 | 72.86 | 0.4439 | 894.8 | 711.3 | |
| 8.64 | 112.71 | 4.76 | 62.28 | 11.96 | 168.98 | -25.65 | 76.46 | 0.4374 | -1076.3 | 41.0 | |
| 0.53 | 1.15 | 0.29 | 0.63 | 11.12 | 168.99 | -25.64 | 78.38 | 0.4352 | 748.5 | 631.4 | |
| 1.15 | -28.00 | 0.63 | -28.00 | 11.59 | 168.88 | -25.75 | 77.33 | 0.4380 | -926.9 | 999999 | |
| 3.79 | -28.00 | 2.09 | -28.00 | 11.77 | 168.79 | -25.83 | 76.96 | 0.4397 | -937.7 | 999999 | |
| 0.53 | 5.03 | 0.29 | 2.78 | 13.33 | 168.45 | -26.17 | 73.63 | 0.4492 | 933.8 | 687.8 | |
| 0.62 | -32.00 | 0.34 | -32.00 | 13.48 | 168.44 | -26.19 | 73.31 | 0.4500 | 794.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 10.55 | 168.57 | -26.06 | 79.78 | 0.4407 | 686.0 | 592.9 | |
| 0.00 | 2.82 | 0.00 | 1.56 | 10.82 | 168.51 | -26.12 | 79.19 | 0.4421 | 701.0 | 610.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 11.03 | 167.87 | -26.75 | 78.89 | 0.4522 | 910.0 | 730.3 | |
| 0.00 | 2.47 | 0.00 | 1.38 | 12.16 | 167.59 | -27.04 | 76.50 | 0.4590 | 941.0 | 831.8 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 11.83 | 167.59 | -27.04 | 77.22 | 0.4582 | 819.0 | 638.2 | |
| 1.06 | 19.93 | 0.59 | 11.13 | 12.43 | 167.42 | -27.21 | 75.99 | 0.4621 | 1153.0 | 793.6 | |
| 4.85 | -39.00 | 2.72 | -39.00 | 12.44 | 167.04 | -27.59 | 76.09 | 0.4679 | 928.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 10.87 | 167.20 | -27.43 | 79.39 | 0.4621 | 945.0 | 774.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 10.54 | 167.10 | -27.53 | 80.14 | 0.4632 | 747.0 | 640.8 | |
| 0.00 | 11.20 | 0.00 | 6.29 | 11.14 | 166.59 | -28.04 | 78.96 | 0.4719 | 426.0 | 848.9 | |
| 0.00 | 1.68 | 0.00 | 0.94 | 10.84 | 166.51 | -28.11 | 79.63 | 0.4725 | 961.0 | 791.8 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 10.65 | 166.43 | -28.20 | 80.04 | 0.4735 | 776.0 | 615.7 | |
| 5.38 | 37.57 | 3.03 | 21.20 | 11.03 | 166.08 | -28.55 | 79.33 | 0.4793 | 1096.8 | 677.3 | |
| 0.00 | 3.62 | 0.00 | 2.05 | 13.31 | 165.74 | -28.89 | 74.74 | 0.4893 | 874.0 | 684.6 | |
| 6.17 | -46.00 | 3.49 | -46.00 | 11.38 | 165.93 | -28.69 | 78.62 | 0.4821 | 1025.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 10.69 | 166.01 | -28.62 | 80.04 | 0.4799 | 695.0 | 568.8 | |
| 8.91 | -46.00 | 5.04 | -46.00 | 11.04 | 165.76 | -28.87 | 79.37 | 0.4841 | 932.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 11.84 | 165.53 | -29.10 | 77.78 | 0.4890 | 862.0 | 710.8 | |
| 0.00 | 3.09 | 0.00 | 1.75 | 11.63 | 165.52 | -29.11 | 78.21 | 0.4887 | 994.0 | 826.0 | |
| 0.00 | 1.59 | 0.00 | 0.90 | 11.26 | 165.39 | -29.24 | 79.00 | 0.4900 | 642.0 | 525.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 13.86 | 164.67 | -29.96 | 74.03 | 0.5063 | 862.0 | 679.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 10.68 | 164.25 | -30.38 | 80.38 | 0.5061 | -749.0 | -610.7 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 11.37 | 164.14 | -30.49 | 79.04 | 0.5087 | -758.0 | -697.6 | |
| 1.32 | 6.70 | 0.76 | 3.86 | 11.60 | 163.89 | -30.73 | 78.65 | 0.5126 | -820.5 | -618.8 | |
| 0.00 | 1.41 | 0.00 | 0.83 | 12.40 | 162.13 | -32.50 | 77.51 | 0.5396 | 624.0 | 581.9 | |
| 0.00 | 2.03 | 0.00 | 1.19 | 12.25 | 162.11 | -32.51 | 77.79 | 0.5395 | 962.0 | 846.2 | |
| 0.71 | 5.20 | 0.42 | 3.07 | 12.38 | 161.69 | -32.93 | 77.65 | 0.5458 | 834.1 | 738.5 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 14.17 | 161.27 | -33.36 | 74.51 | 0.5554 | 666.0 | 421.0 | |
| 1.06 | 2.91 | 0.63 | 1.72 | 12.05 | 161.37 | -33.26 | 78.30 | 0.5498 | 993.3 | 778.3 | |
| 1.41 | 3.62 | 0.84 | 2.15 | 11.84 | 160.81 | -33.82 | 78.79 | 0.5574 | 812.1 | 691.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
