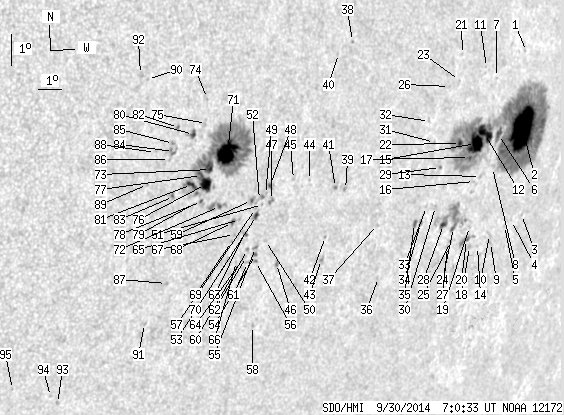

SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.62 | 872.58 | 137.63 | 707.22 | -11.12 | 243.20 | 49.11 | 249.94 | 0.7876 | 131.8 | 59.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.54 | -8.34 | 247.91 | 53.83 | 255.08 | 0.8288 | 528.0 | 443.9 | |
| 62.17 | 474.28 | 56.13 | 419.65 | -10.77 | 248.27 | 54.19 | 252.36 | 0.8380 | 914.3 | 313.2 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -13.56 | 249.06 | 54.98 | 249.45 | 0.8523 | 335.0 | 439.0 | |
| 0.00 | 0.79 | 0.00 | 0.74 | -13.70 | 248.57 | 54.49 | 249.13 | 0.8485 | -340.0 | -304.3 | |
| 0.00 | 0.79 | 0.00 | 0.73 | -13.82 | 248.24 | 54.16 | 248.87 | 0.8460 | -270.0 | -231.4 | |
| 4.41 | -2.00 | 3.86 | -2.00 | -10.84 | 247.04 | 52.96 | 251.89 | 0.8270 | 735.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.68 | -9.01 | 246.52 | 52.44 | 253.87 | 0.8172 | -144.0 | -153.8 | |
| 0.00 | 0.53 | 0.00 | 0.47 | -11.87 | 247.01 | 52.93 | 250.68 | 0.8295 | 255.0 | 271.2 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -14.31 | 247.67 | 53.59 | 248.12 | 0.8424 | 460.0 | 375.2 | |
| 0.00 | 2.03 | 0.00 | 1.84 | -14.04 | 247.52 | 53.44 | 248.38 | 0.8404 | 381.0 | 157.7 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -8.65 | 245.95 | 51.87 | 254.12 | 0.8107 | 487.0 | 461.8 | |
| 13.40 | -2.00 | 11.54 | -2.00 | -10.74 | 246.31 | 52.22 | 251.77 | 0.8198 | 796.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.38 | -12.10 | 246.46 | 52.38 | 250.23 | 0.8252 | -103.0 | -68.4 | |
| 0.00 | 0.97 | 0.00 | 0.87 | -14.37 | 247.01 | 52.93 | 247.82 | 0.8368 | 161.0 | 156.7 | |
| 21.52 | -2.00 | 18.39 | -2.00 | -11.01 | 245.92 | 51.84 | 251.31 | 0.8170 | 987.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -12.23 | 246.19 | 52.11 | 249.98 | 0.8231 | 580.0 | 510.2 | |
| 1.32 | -2.00 | 1.13 | -2.00 | -11.43 | 245.73 | 51.65 | 250.75 | 0.8164 | 795.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.41 | -14.33 | 246.58 | 52.50 | 247.71 | 0.8329 | 501.0 | 400.1 | |
| 0.00 | 1.41 | 0.00 | 1.24 | -13.67 | 246.37 | 52.29 | 248.38 | 0.8290 | 215.0 | 110.0 | |
| 0.00 | 6.61 | 0.00 | 5.84 | -14.08 | 246.35 | 52.27 | 247.90 | 0.8301 | -307.0 | -225.1 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -8.13 | 244.68 | 50.60 | 254.35 | 0.7967 | 478.0 | 395.0 | |
| 2.12 | -2.00 | 1.78 | -2.00 | -10.94 | 245.16 | 51.08 | 251.13 | 0.8095 | 946.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -8.93 | 244.68 | 50.60 | 253.37 | 0.7989 | 427.0 | 493.0 | |
| 1.76 | 38.10 | 1.52 | 32.68 | -13.62 | 245.55 | 51.47 | 248.13 | 0.8214 | -481.0 | 118.5 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -14.07 | 245.54 | 51.46 | 247.61 | 0.8227 | -505.0 | -418.1 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -9.08 | 244.23 | 50.15 | 253.05 | 0.7948 | -183.0 | -236.7 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -14.22 | 245.43 | 51.35 | 247.40 | 0.8222 | -592.0 | -526.7 | |
| 3.00 | -24.00 | 2.56 | -24.00 | -13.48 | 245.01 | 50.93 | 248.10 | 0.8159 | -525.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.10 | -11.62 | 244.36 | 50.28 | 250.04 | 0.8038 | 719.0 | 605.2 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -12.85 | 244.44 | 50.36 | 248.61 | 0.8085 | 384.0 | 313.4 | |
| 0.00 | 1.23 | 0.00 | 1.01 | -10.79 | 243.87 | 49.79 | 250.85 | 0.7964 | 620.0 | 567.1 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -10.10 | 243.49 | 49.40 | 251.55 | 0.7903 | 751.0 | 678.7 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -12.81 | 243.99 | 49.91 | 248.48 | 0.8041 | -308.0 | -278.2 | |
| 0.00 | 2.29 | 0.00 | 1.90 | -13.34 | 243.85 | 49.77 | 247.81 | 0.8045 | -551.0 | -403.8 | |
| 1.41 | 2.91 | 1.16 | 2.40 | -13.31 | 243.55 | 49.47 | 247.72 | 0.8016 | -675.3 | -538.1 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -14.91 | 242.31 | 48.23 | 245.31 | 0.7955 | 280.0 | 224.0 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -13.18 | 241.78 | 47.70 | 247.15 | 0.7838 | 376.0 | 363.4 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -7.26 | 239.54 | 45.46 | 253.65 | 0.7391 | -506.0 | -432.9 | |
| 0.00 | 1.76 | 0.00 | 1.34 | -11.91 | 240.04 | 45.96 | 247.94 | 0.7612 | 495.0 | 493.2 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -7.58 | 238.98 | 44.89 | 253.02 | 0.7338 | -449.0 | -324.4 | |
| 0.00 | 1.59 | 0.00 | 1.20 | -11.81 | 239.57 | 45.49 | 247.86 | 0.7559 | 743.0 | 654.6 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -13.35 | 239.48 | 45.40 | 245.91 | 0.7612 | 353.0 | 358.3 | |
| 0.00 | 2.91 | 0.00 | 2.23 | -14.08 | 239.49 | 45.41 | 245.02 | 0.7643 | 634.0 | 509.3 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -11.49 | 238.38 | 44.29 | 247.73 | 0.7418 | -447.0 | -423.2 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -11.39 | 237.67 | 43.59 | 247.52 | 0.7339 | -552.0 | -404.1 | |
| 0.00 | 2.12 | 0.00 | 1.56 | -14.04 | 237.52 | 43.44 | 244.11 | 0.7438 | -636.0 | -567.2 | |
| 0.00 | 3.17 | 0.00 | 2.28 | -11.99 | 236.86 | 42.78 | 246.37 | 0.7275 | -436.0 | -360.3 | |
| 0.88 | 1.85 | 0.63 | 1.33 | -11.53 | 236.69 | 42.61 | 246.87 | 0.7236 | -822.7 | -776.1 | |
| 0.00 | 1.50 | 0.00 | 1.07 | -11.77 | 236.57 | 42.49 | 246.50 | 0.7234 | -506.0 | -481.5 | |
| 0.00 | 1.32 | 0.00 | 0.96 | -13.25 | 236.87 | 42.79 | 244.76 | 0.7333 | 220.0 | 197.4 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -12.08 | 236.50 | 42.42 | 246.06 | 0.7240 | -504.0 | -371.7 | |
| 0.00 | 3.53 | 0.00 | 2.52 | -11.91 | 236.34 | 42.26 | 246.20 | 0.7215 | -705.0 | -653.2 | |
| 1.85 | 4.41 | 1.32 | 3.15 | -12.41 | 236.32 | 42.24 | 245.54 | 0.7235 | -508.0 | -384.0 | |
| 0.53 | 2.29 | 0.38 | 1.66 | -13.67 | 236.54 | 42.46 | 244.06 | 0.7317 | -612.3 | -503.8 | |
| 0.00 | 1.94 | 0.00 | 1.40 | -13.44 | 236.49 | 42.41 | 244.32 | 0.7301 | -364.0 | -290.7 | |
| 0.00 | 1.68 | 0.00 | 1.22 | -13.90 | 236.59 | 42.51 | 243.80 | 0.7334 | -559.0 | -372.1 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -12.19 | 236.23 | 42.15 | 245.79 | 0.7215 | -587.0 | -508.7 | |
| 0.00 | 1.41 | 0.00 | 1.05 | -15.98 | 236.98 | 42.90 | 241.43 | 0.7474 | -548.0 | -478.9 | |
| 0.62 | 2.47 | 0.44 | 1.75 | -11.92 | 236.01 | 41.93 | 246.03 | 0.7179 | -785.9 | -673.2 | |
| 0.00 | 1.50 | 0.00 | 1.08 | -13.48 | 236.16 | 42.08 | 244.10 | 0.7268 | -696.0 | -535.7 | |
| 0.00 | 1.59 | 0.00 | 1.15 | -13.90 | 236.26 | 42.18 | 243.62 | 0.7298 | -505.0 | -435.6 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -13.70 | 236.17 | 42.09 | 243.83 | 0.7279 | -627.0 | -579.7 | |
| 0.00 | 3.17 | 0.00 | 2.26 | -12.95 | 235.93 | 41.85 | 244.65 | 0.7217 | -789.0 | -539.7 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -13.82 | 235.99 | 41.91 | 243.58 | 0.7265 | -506.0 | -521.9 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -12.48 | 235.63 | 41.55 | 245.09 | 0.7162 | -654.0 | -590.2 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -13.83 | 235.78 | 41.70 | 243.46 | 0.7244 | -519.0 | -412.6 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -12.95 | 235.51 | 41.43 | 244.43 | 0.7172 | -508.0 | -532.4 | |
| 1.15 | 2.82 | 0.81 | 1.99 | -12.56 | 235.35 | 41.27 | 244.86 | 0.7136 | -675.3 | -530.4 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -13.17 | 235.43 | 41.35 | 244.11 | 0.7174 | -648.0 | -589.5 | |
| 0.00 | 1.68 | 0.00 | 1.19 | -13.74 | 235.43 | 41.35 | 243.38 | 0.7202 | -516.0 | -444.9 | |
| 31.84 | 227.97 | 21.90 | 156.44 | -10.31 | 234.75 | 40.67 | 247.51 | 0.6963 | -1010.8 | -382.4 | |
| 1.06 | 9.61 | 0.74 | 6.67 | -12.00 | 234.72 | 40.63 | 245.24 | 0.7038 | -691.2 | -573.8 | |
| 1.50 | -71.00 | 1.03 | -71.00 | -10.79 | 234.15 | 40.06 | 246.54 | 0.6916 | -846.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -8.54 | 233.71 | 39.63 | 249.40 | 0.6761 | 538.0 | 333.9 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -9.32 | 233.77 | 39.69 | 248.34 | 0.6804 | -497.0 | -530.3 | |
| 10.76 | -71.00 | 7.36 | -71.00 | -11.25 | 234.02 | 39.94 | 245.86 | 0.6923 | -863.4 | 999999 | |
| 0.97 | -71.00 | 0.66 | -71.00 | -10.95 | 233.81 | 39.73 | 246.14 | 0.6885 | -1030.0 | 999999 | |
| 0.53 | 2.65 | 0.36 | 1.82 | -11.78 | 233.95 | 39.87 | 245.11 | 0.6941 | -606.3 | -542.5 | |
| 0.00 | 1.23 | 0.00 | 0.84 | -11.80 | 233.75 | 39.67 | 244.98 | 0.6919 | -285.0 | -356.0 | |
| 1.85 | 3.70 | 1.24 | 2.48 | -9.63 | 233.30 | 39.22 | 247.67 | 0.6762 | -890.9 | -760.5 | |
| 3.97 | -71.00 | 2.69 | -71.00 | -11.21 | 233.45 | 39.37 | 245.61 | 0.6856 | -932.8 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.29 | -9.36 | 232.67 | 38.59 | 247.71 | 0.6675 | -736.0 | -636.2 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -11.53 | 232.80 | 38.71 | 244.79 | 0.6796 | -852.0 | -702.2 | |
| 0.00 | 4.94 | 0.00 | 3.28 | -10.10 | 232.58 | 38.50 | 246.63 | 0.6699 | -627.0 | -656.9 | |
| 0.00 | 1.32 | 0.00 | 0.88 | -9.85 | 232.54 | 38.46 | 246.96 | 0.6683 | -864.0 | -821.4 | |
| 0.00 | 1.32 | 0.00 | 0.88 | -10.34 | 232.46 | 38.37 | 246.22 | 0.6697 | -477.0 | -451.6 | |
| 0.00 | 1.41 | 0.00 | 0.97 | -14.31 | 233.03 | 38.95 | 241.25 | 0.6971 | -580.0 | -493.2 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -10.08 | 231.87 | 37.79 | 246.26 | 0.6614 | -533.0 | -486.8 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -11.07 | 231.71 | 37.63 | 244.78 | 0.6646 | -519.0 | -511.4 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -7.77 | 231.29 | 37.21 | 249.24 | 0.6430 | -642.0 | -576.8 | |
| 0.00 | 1.50 | 0.00 | 1.03 | -15.55 | 232.42 | 38.34 | 239.28 | 0.6974 | -459.0 | -456.5 | |
| 0.00 | 3.44 | 0.00 | 2.21 | -7.59 | 231.00 | 36.92 | 249.35 | 0.6387 | -128.0 | -291.6 | |
| 0.00 | 1.41 | 0.00 | 0.95 | -17.94 | 229.53 | 35.45 | 234.27 | 0.6821 | -687.0 | -578.6 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -17.68 | 229.20 | 35.12 | 234.34 | 0.6770 | -644.0 | -447.4 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -17.34 | 227.68 | 33.60 | 233.59 | 0.6586 | -708.0 | -544.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
