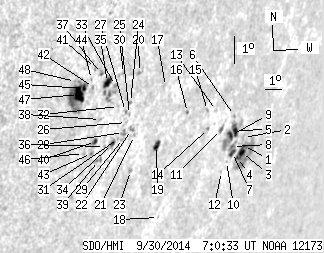

SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.55 | 181.12 | 44.90 | 186.50 | -16.66 | 251.16 | 57.08 | 246.66 | 0.8747 | -51.2 | -94.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 34.48 | 1.07 | 42.27 | -17.81 | 256.01 | 61.93 | 247.01 | 0.9143 | 300.5 | -199.2 | |
| 0.00 | 2.38 | 0.00 | 2.86 | -17.53 | 255.85 | 61.77 | 247.25 | 0.9127 | 201.0 | 169.1 | |
| 3.97 | -1.00 | 4.82 | -1.00 | -18.04 | 256.02 | 61.94 | 246.77 | 0.9148 | 235.6 | 999999 | |
| 1.32 | -1.00 | 1.60 | -1.00 | -18.18 | 255.83 | 61.75 | 246.57 | 0.9139 | 354.7 | 999999 | |
| 5.11 | 32.45 | 5.97 | 37.89 | -17.23 | 255.14 | 61.06 | 247.36 | 0.9074 | 506.2 | 390.3 | |
| 0.00 | 1.06 | 0.00 | 1.22 | -16.71 | 254.79 | 60.71 | 247.81 | 0.9039 | 413.0 | 416.4 | |
| 2.82 | -5.00 | 3.35 | -5.00 | -17.97 | 255.37 | 61.29 | 246.65 | 0.9104 | 513.3 | 999999 | |
| 1.68 | -5.00 | 1.98 | -5.00 | -17.76 | 255.25 | 61.17 | 246.84 | 0.9092 | 551.2 | 999999 | |
| 3.09 | -5.00 | 3.58 | -5.00 | -17.37 | 254.89 | 60.81 | 247.15 | 0.9060 | 709.0 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.31 | -18.23 | 255.13 | 61.05 | 246.30 | 0.9094 | 396.0 | 442.7 | |
| 0.97 | 3.44 | 1.09 | 3.88 | -17.09 | 254.16 | 60.08 | 247.22 | 0.9004 | 553.9 | 472.0 | |
| 0.00 | 0.71 | 0.00 | 0.83 | -18.55 | 254.99 | 60.91 | 245.93 | 0.9091 | 428.0 | 331.4 | |
| 0.00 | 1.41 | 0.00 | 1.55 | -16.41 | 253.49 | 59.41 | 247.74 | 0.8941 | 390.0 | 331.9 | |
| 0.00 | 1.32 | 0.00 | 1.45 | -16.97 | 253.28 | 59.20 | 247.08 | 0.8939 | 700.0 | 563.2 | |
| 0.00 | 1.06 | 0.00 | 1.14 | -16.35 | 252.91 | 58.83 | 247.63 | 0.8897 | 658.0 | 613.8 | |
| 0.00 | 0.97 | 0.00 | 1.01 | -16.28 | 251.68 | 57.60 | 247.30 | 0.8804 | 402.0 | 375.1 | |
| 0.00 | 1.06 | 0.00 | 1.04 | -15.28 | 249.98 | 55.90 | 247.84 | 0.8645 | 336.0 | 251.8 | |
| 0.00 | 0.26 | 0.00 | 0.28 | -19.70 | 251.72 | 57.64 | 243.64 | 0.8894 | 419.0 | 386.7 | |
| 3.70 | 5.91 | 3.73 | 5.95 | -17.21 | 250.31 | 56.23 | 245.84 | 0.8723 | -292.0 | -27.4 | |
| 0.00 | 2.73 | 0.00 | 2.55 | -14.66 | 248.32 | 54.24 | 247.96 | 0.8491 | 689.0 | 539.7 | |
| 0.00 | 1.06 | 0.00 | 1.02 | -16.74 | 248.87 | 54.79 | 245.84 | 0.8596 | -298.0 | -228.5 | |
| 0.00 | 2.20 | 0.00 | 2.11 | -16.52 | 248.62 | 54.54 | 245.99 | 0.8569 | -371.0 | -342.2 | |
| 0.00 | 1.85 | 0.00 | 1.82 | -17.90 | 249.17 | 55.09 | 244.67 | 0.8654 | -436.0 | -263.6 | |
| 0.00 | 1.06 | 0.00 | 0.99 | -15.61 | 248.20 | 54.12 | 246.85 | 0.8507 | -408.0 | -344.7 | |
| 0.00 | 1.23 | 0.00 | 1.16 | -16.00 | 248.30 | 54.22 | 246.45 | 0.8527 | -296.0 | -271.9 | |
| 0.00 | 0.97 | 0.00 | 0.92 | -16.25 | 248.24 | 54.16 | 246.15 | 0.8530 | -350.0 | -310.4 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -15.88 | 248.04 | 53.95 | 246.49 | 0.8502 | -531.0 | -496.1 | |
| 0.00 | 3.00 | 0.00 | 2.83 | -16.57 | 248.21 | 54.13 | 245.78 | 0.8537 | -485.0 | -456.7 | |
| 0.00 | 0.88 | 0.00 | 0.84 | -16.78 | 248.29 | 54.21 | 245.59 | 0.8550 | -239.0 | -225.8 | |
| 0.00 | 1.41 | 0.00 | 1.29 | -14.61 | 247.46 | 53.37 | 247.71 | 0.8414 | 394.0 | 313.7 | |
| 0.00 | 0.53 | 0.00 | 0.50 | -16.75 | 248.01 | 53.93 | 245.51 | 0.8526 | -433.0 | -366.7 | |
| 0.00 | 0.97 | 0.00 | 0.89 | -15.67 | 247.58 | 53.50 | 246.55 | 0.8458 | -296.0 | -232.1 | |
| 0.00 | 2.03 | 0.00 | 1.84 | -14.96 | 247.16 | 53.08 | 247.20 | 0.8400 | 281.0 | 257.0 | |
| 1.50 | 3.00 | 1.40 | 2.81 | -16.88 | 247.75 | 53.67 | 245.27 | 0.8508 | -466.5 | -376.6 | |
| 4.85 | 15.79 | 4.35 | 14.23 | -14.82 | 246.70 | 52.62 | 247.19 | 0.8355 | -389.4 | -214.2 | |
| 0.00 | 0.79 | 0.00 | 0.74 | -16.94 | 247.35 | 53.26 | 245.05 | 0.8476 | -546.0 | -507.9 | |
| 0.00 | 1.76 | 0.00 | 1.56 | -14.49 | 246.28 | 52.20 | 247.41 | 0.8307 | 135.0 | 106.8 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -16.01 | 246.77 | 52.69 | 245.87 | 0.8398 | -406.0 | -433.8 | |
| 0.00 | 3.00 | 0.00 | 2.78 | -17.38 | 247.21 | 53.13 | 244.51 | 0.8479 | -544.0 | -502.8 | |
| 1.32 | 3.79 | 1.21 | 3.46 | -16.72 | 246.79 | 52.70 | 245.08 | 0.8422 | -757.0 | -591.6 | |
| 0.00 | 1.41 | 0.00 | 1.24 | -14.30 | 245.91 | 51.83 | 247.49 | 0.8268 | -359.0 | -303.1 | |
| 0.00 | 1.06 | 0.00 | 0.93 | -14.91 | 246.02 | 51.93 | 246.83 | 0.8297 | -441.0 | -329.1 | |
| 0.00 | 1.32 | 0.00 | 1.21 | -17.11 | 246.73 | 52.65 | 244.63 | 0.8430 | -566.0 | -556.1 | |
| 0.00 | 0.88 | 0.00 | 0.77 | -14.64 | 245.82 | 51.74 | 247.07 | 0.8271 | -444.0 | -394.4 | |
| 1.76 | 38.01 | 1.54 | 33.04 | -14.90 | 245.56 | 51.48 | 246.66 | 0.8256 | -514.8 | -465.2 | |
| 0.00 | 1.59 | 0.00 | 1.44 | -17.06 | 246.30 | 52.22 | 244.50 | 0.8392 | -245.0 | -229.3 | |
| 10.58 | -45.00 | 9.21 | -45.00 | -15.07 | 245.31 | 51.23 | 246.38 | 0.8239 | -812.8 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.38 | -14.62 | 245.02 | 50.94 | 246.77 | 0.8198 | -556.0 | -492.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
