SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.36 | 596.16 | 142.11 | 727.61 | 15.18 | 260.88 | 66.80 | 283.68 | 0.9134 | -66.3 | -89.4 | |
|
previous
or next observation for the same group /

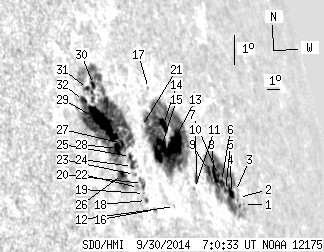

back to the solar disc SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 1.26 | 12.74 | 266.94 | 72.86 | 281.24 | 0.9517 | 379.0 | 311.2 | |
| 0.00 | 1.85 | 0.00 | 2.89 | 12.99 | 266.61 | 72.52 | 281.49 | 0.9498 | 116.0 | 95.4 | |
| 0.00 | 1.15 | 0.00 | 1.78 | 13.20 | 266.45 | 72.37 | 281.69 | 0.9489 | 238.0 | 218.8 | |
| 4.76 | 108.30 | 7.23 | 159.72 | 13.18 | 266.03 | 71.94 | 281.65 | 0.9466 | -333.4 | -162.0 | |
| 2.20 | -4.00 | 3.28 | -4.00 | 13.33 | 265.53 | 71.45 | 281.79 | 0.9439 | -562.9 | 999999 | |
| 2.03 | -4.00 | 2.97 | -4.00 | 13.63 | 265.36 | 71.28 | 282.10 | 0.9428 | -271.7 | 999999 | |
| 1.59 | -4.00 | 2.31 | -4.00 | 13.83 | 265.21 | 71.13 | 282.30 | 0.9419 | -174.6 | 999999 | |
| 4.67 | -4.00 | 6.71 | -4.00 | 13.87 | 264.85 | 70.77 | 282.33 | 0.9399 | -547.3 | 999999 | |
| 3.70 | -4.00 | 5.21 | -4.00 | 14.07 | 264.43 | 70.35 | 282.53 | 0.9373 | -702.5 | 999999 | |
| 2.03 | 2.82 | 2.71 | 3.77 | 13.95 | 263.26 | 69.18 | 282.36 | 0.9303 | -411.5 | -437.8 | |
| 0.00 | 0.97 | 0.00 | 1.28 | 13.68 | 262.91 | 68.83 | 282.06 | 0.9281 | -647.0 | -591.8 | |
| 0.00 | 0.26 | 0.00 | 0.32 | 13.33 | 261.04 | 66.95 | 281.62 | 0.9159 | 245.0 | 238.0 | |
| 30.69 | 207.60 | 38.76 | 260.22 | 15.15 | 261.92 | 67.84 | 283.62 | 0.9215 | -728.2 | -324.3 | |
| 6.97 | -13.00 | 8.71 | -13.00 | 15.79 | 261.69 | 67.61 | 284.32 | 0.9200 | -638.4 | 999999 | |
| 6.44 | -13.00 | 7.76 | -13.00 | 14.94 | 260.72 | 66.64 | 283.37 | 0.9135 | 18.1 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.84 | 13.39 | 259.60 | 65.52 | 281.65 | 0.9057 | 116.0 | 33.9 | |
| 0.00 | 0.35 | 0.00 | 0.43 | 16.96 | 261.29 | 67.21 | 285.59 | 0.9172 | -621.0 | -551.8 | |
| 0.00 | 1.68 | 0.00 | 1.91 | 13.72 | 259.10 | 65.02 | 282.00 | 0.9021 | 548.0 | 452.5 | |
| 0.00 | 0.71 | 0.00 | 0.80 | 13.94 | 259.07 | 64.99 | 282.25 | 0.9018 | 544.0 | 470.9 | |
| 0.00 | 5.82 | 0.00 | 6.62 | 14.24 | 259.09 | 65.01 | 282.59 | 0.9019 | 564.0 | 366.0 | |
| 0.00 | 0.88 | 0.00 | 1.03 | 15.91 | 260.01 | 65.93 | 284.44 | 0.9085 | -459.0 | -375.8 | |
| 0.00 | 3.26 | 0.00 | 3.66 | 14.16 | 258.75 | 64.66 | 282.49 | 0.8994 | -122.0 | -25.1 | |
| 0.00 | 1.23 | 0.00 | 1.38 | 14.57 | 258.68 | 64.60 | 282.94 | 0.8989 | 510.0 | 456.3 | |
| 1.06 | 8.38 | 1.19 | 9.40 | 14.81 | 258.67 | 64.59 | 283.22 | 0.8988 | 516.0 | 366.3 | |
| 1.23 | -24.00 | 1.38 | -24.00 | 15.12 | 258.70 | 64.62 | 283.56 | 0.8990 | 358.9 | 999999 | |
| 2.73 | 16.05 | 2.98 | 17.48 | 14.65 | 257.86 | 63.78 | 283.03 | 0.8927 | 811.9 | 422.3 | |
| 1.76 | 232.47 | 1.96 | 251.82 | 15.56 | 258.37 | 64.29 | 284.05 | 0.8966 | 160.7 | 116.3 | |
| 5.82 | -27.00 | 6.37 | -27.00 | 15.45 | 257.94 | 63.86 | 283.92 | 0.8934 | 685.3 | 999999 | |
| 33.25 | -27.00 | 35.76 | -27.00 | 16.31 | 257.45 | 63.37 | 284.89 | 0.8897 | 667.5 | 999999 | |
| 2.20 | -27.00 | 2.37 | -27.00 | 17.49 | 257.47 | 63.39 | 286.23 | 0.8900 | 320.0 | 999999 | |
| 1.32 | -27.00 | 1.40 | -27.00 | 17.41 | 257.00 | 62.92 | 286.15 | 0.8864 | 651.7 | 999999 | |
| 2.91 | -27.00 | 3.05 | -27.00 | 17.09 | 256.52 | 62.44 | 285.80 | 0.8826 | 691.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
