SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.81 | 464.24 | 49.93 | 255.25 | 12.06 | 168.80 | -25.28 | 75.97 | 0.4319 | -105.1 | 17.2 | |
|
previous
or next observation for the same group /

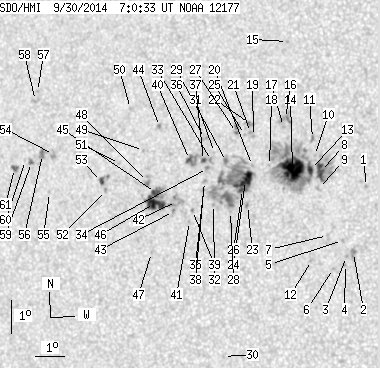

back to the solar disc SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.61 | 11.88 | 172.96 | -21.12 | 74.60 | 0.3673 | -995.0 | -795.0 | |
| 0.00 | 4.85 | 0.00 | 2.58 | 9.88 | 172.68 | -21.40 | 80.13 | 0.3665 | -1029.0 | -839.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 9.75 | 172.46 | -21.62 | 80.55 | 0.3698 | -893.0 | -744.8 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 9.51 | 172.44 | -21.64 | 81.21 | 0.3696 | -753.0 | -630.5 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 10.23 | 172.29 | -21.79 | 79.33 | 0.3733 | -812.0 | -668.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 9.38 | 172.06 | -22.02 | 81.67 | 0.3755 | -706.0 | -609.0 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 10.36 | 171.79 | -22.29 | 79.16 | 0.3815 | -721.0 | -569.8 | |
| 7.58 | 34.48 | 4.08 | 18.54 | 12.27 | 171.40 | -22.68 | 74.43 | 0.3928 | -1154.2 | -543.1 | |
| 0.00 | 2.56 | 0.00 | 1.38 | 11.76 | 171.38 | -22.70 | 75.73 | 0.3915 | -729.0 | -591.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 12.75 | 171.16 | -22.92 | 73.38 | 0.3982 | -638.0 | -544.2 | |
| 0.00 | 2.56 | 0.00 | 1.38 | 13.26 | 171.04 | -23.04 | 72.20 | 0.4018 | -744.0 | -514.3 | |
| 0.00 | 1.68 | 0.00 | 0.90 | 9.58 | 171.32 | -22.76 | 81.30 | 0.3876 | -553.0 | -500.1 | |
| 3.88 | 156.36 | 2.09 | 84.80 | 12.32 | 171.06 | -23.02 | 74.48 | 0.3981 | -1059.0 | -326.1 | |
| 35.28 | -13.00 | 19.12 | -13.00 | 12.32 | 170.46 | -23.62 | 74.77 | 0.4074 | -1145.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 16.15 | 169.86 | -24.22 | 66.27 | 0.4322 | -807.0 | -686.4 | |
| 0.00 | 9.26 | 0.00 | 5.05 | 13.82 | 170.07 | -24.01 | 71.42 | 0.4186 | -117.0 | -202.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 13.57 | 170.03 | -24.05 | 72.01 | 0.4183 | 142.0 | 187.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.38 | 169.68 | -24.40 | 74.99 | 0.4195 | -486.0 | -384.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 13.22 | 169.05 | -25.03 | 73.32 | 0.4318 | 377.0 | 337.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 12.35 | 169.11 | -24.97 | 75.30 | 0.4282 | -577.0 | -436.8 | |
| 0.00 | 1.59 | 0.00 | 0.87 | 13.34 | 168.94 | -25.15 | 73.11 | 0.4339 | 897.0 | 675.2 | |
| 0.00 | 4.06 | 0.00 | 2.23 | 13.61 | 168.87 | -25.21 | 72.54 | 0.4358 | 890.0 | 696.5 | |
| 0.00 | 2.03 | 0.00 | 1.11 | 11.14 | 169.05 | -25.03 | 78.13 | 0.4259 | 939.0 | 697.7 | |
| 13.05 | 100.89 | 7.15 | 55.48 | 11.89 | 168.92 | -25.16 | 76.44 | 0.4298 | -995.8 | 34.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 13.27 | 168.74 | -25.34 | 73.37 | 0.4366 | 847.0 | 693.7 | |
| 2.73 | -24.00 | 1.50 | -24.00 | 11.61 | 168.84 | -25.24 | 77.10 | 0.4303 | -866.1 | 999999 | |
| 0.35 | 5.56 | 0.19 | 3.06 | 13.32 | 168.46 | -25.62 | 73.39 | 0.4410 | 952.0 | 663.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 10.93 | 168.50 | -25.58 | 78.78 | 0.4341 | 841.0 | 627.8 | |
| 0.00 | 5.20 | 0.00 | 2.87 | 12.43 | 168.21 | -25.87 | 75.48 | 0.4419 | 434.0 | 529.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 6.57 | 168.58 | -25.50 | 88.91 | 0.4296 | 585.0 | 459.7 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 12.68 | 167.78 | -26.31 | 75.10 | 0.4493 | 677.0 | 581.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 11.11 | 167.90 | -26.18 | 78.54 | 0.4436 | 925.0 | 811.8 | |
| 0.00 | 1.94 | 0.00 | 1.08 | 12.43 | 167.70 | -26.38 | 75.67 | 0.4497 | 839.0 | 877.4 | |
| 0.00 | 2.20 | 0.00 | 1.22 | 12.18 | 167.59 | -26.49 | 76.25 | 0.4508 | 972.0 | 846.7 | |
| 0.00 | 1.76 | 0.00 | 0.98 | 11.79 | 167.53 | -26.55 | 77.15 | 0.4507 | 687.0 | 548.0 | |
| 0.00 | 3.00 | 0.00 | 1.67 | 13.08 | 167.39 | -26.70 | 74.37 | 0.4563 | 451.0 | 586.2 | |
| 1.23 | 14.82 | 0.69 | 8.25 | 12.42 | 167.43 | -26.66 | 75.80 | 0.4538 | 1055.4 | 788.1 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 11.52 | 167.52 | -26.56 | 77.75 | 0.4502 | 744.0 | 668.1 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 10.90 | 167.20 | -26.88 | 79.20 | 0.4538 | 863.0 | 779.7 | |
| 2.47 | -37.00 | 1.38 | -37.00 | 12.42 | 166.94 | -27.14 | 75.96 | 0.4611 | 867.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 10.56 | 167.13 | -26.95 | 79.96 | 0.4543 | 706.0 | 587.5 | |
| 0.00 | 10.49 | 0.00 | 5.86 | 11.14 | 166.63 | -27.45 | 78.82 | 0.4630 | 541.0 | 835.9 | |
| 0.00 | 1.68 | 0.00 | 0.94 | 10.83 | 166.56 | -27.52 | 79.50 | 0.4635 | 895.0 | 784.5 | |
| 0.00 | 1.76 | 0.00 | 1.00 | 13.36 | 165.78 | -28.30 | 74.41 | 0.4808 | 945.0 | 801.2 | |
| 4.76 | 32.28 | 2.68 | 18.13 | 11.37 | 165.88 | -28.20 | 78.52 | 0.4747 | 1039.4 | 798.2 | |
| 14.90 | -45.00 | 8.38 | -45.00 | 11.04 | 165.88 | -28.20 | 79.22 | 0.4741 | 976.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 9.56 | 165.92 | -28.17 | 82.33 | 0.4716 | 677.0 | 562.3 | |
| 0.00 | 4.59 | 0.00 | 2.59 | 11.69 | 165.56 | -28.52 | 77.94 | 0.4800 | 922.0 | 757.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 12.61 | 165.32 | -28.76 | 76.11 | 0.4857 | 720.0 | 583.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 13.85 | 164.70 | -29.38 | 73.83 | 0.4980 | 789.0 | 672.2 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 12.17 | 164.52 | -29.56 | 77.22 | 0.4965 | 570.0 | 451.1 | |
| 0.00 | 1.85 | 0.00 | 1.06 | 11.33 | 164.13 | -29.95 | 78.99 | 0.5008 | -951.0 | -749.3 | |
| 2.03 | 6.53 | 1.16 | 3.73 | 11.60 | 163.95 | -30.13 | 78.51 | 0.5037 | -762.5 | -627.7 | |
| 0.00 | 4.14 | 0.00 | 2.42 | 12.31 | 162.14 | -31.94 | 77.55 | 0.5314 | 717.0 | 737.4 | |
| 0.00 | 1.32 | 0.00 | 0.77 | 11.16 | 162.15 | -31.94 | 79.71 | 0.5295 | 679.0 | 466.7 | |
| 0.00 | 5.82 | 0.00 | 3.41 | 12.28 | 161.75 | -32.34 | 77.68 | 0.5371 | 978.0 | 750.8 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 14.17 | 161.28 | -32.80 | 74.35 | 0.5476 | 699.0 | 538.2 | |
| 0.00 | 3.44 | 0.00 | 2.03 | 13.89 | 161.25 | -32.83 | 74.85 | 0.5473 | 624.0 | 560.2 | |
| 0.79 | 3.62 | 0.47 | 2.13 | 12.02 | 161.38 | -32.70 | 78.25 | 0.5418 | 972.7 | 723.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 12.07 | 161.15 | -32.93 | 78.20 | 0.5451 | 307.0 | 460.5 | |
| 1.76 | 3.97 | 1.04 | 2.35 | 11.80 | 160.79 | -33.29 | 78.76 | 0.5500 | 776.0 | 620.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
