SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.32 | 52.31 | 10.21 | 33.03 | -12.27 | 160.99 | -33.10 | 120.05 | 0.6203 | -21.2 | 157.2 | |
|
previous
or next observation for the same group /

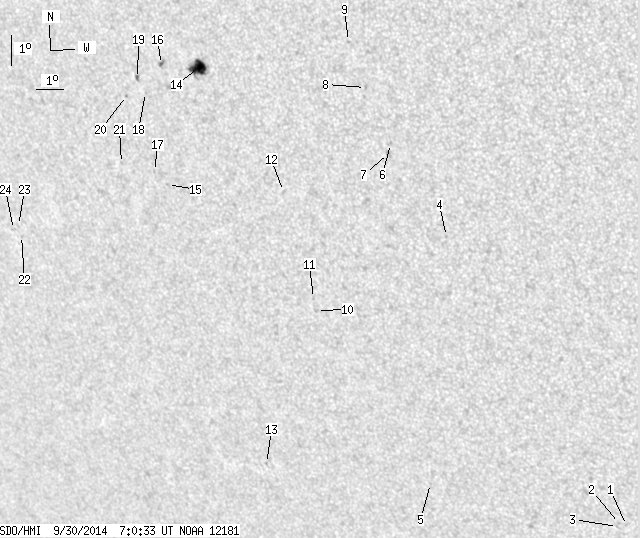

back to the solar disc SDO HMI 2014-09-30 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.38 | -24.49 | 173.32 | -20.77 | 147.77 | 0.6072 | 741.0 | 631.9 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -24.43 | 173.08 | -21.00 | 147.42 | 0.6083 | 676.0 | 525.8 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -24.54 | 172.99 | -21.09 | 147.42 | 0.6102 | 485.0 | 546.3 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -15.03 | 168.51 | -25.57 | 130.82 | 0.5529 | 601.0 | 494.7 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -23.37 | 166.47 | -27.61 | 139.01 | 0.6510 | 651.0 | 625.7 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -12.14 | 166.93 | -27.15 | 124.90 | 0.5460 | 840.0 | 684.2 | |
| 0.00 | 3.35 | 0.00 | 1.98 | -12.46 | 166.83 | -27.25 | 125.28 | 0.5499 | 699.0 | 523.2 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -10.41 | 166.25 | -27.83 | 121.54 | 0.5408 | 754.0 | 607.0 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -9.00 | 165.80 | -28.29 | 118.83 | 0.5364 | 519.0 | 432.3 | |
| 0.00 | 1.68 | 0.00 | 1.07 | -17.73 | 163.46 | -30.62 | 129.42 | 0.6303 | 192.0 | 347.1 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -17.33 | 163.43 | -30.65 | 128.88 | 0.6275 | 522.0 | 442.6 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -13.90 | 162.92 | -31.16 | 123.80 | 0.6068 | 623.0 | 555.9 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -23.07 | 160.29 | -33.79 | 133.12 | 0.7033 | 655.0 | 591.4 | |
| 15.79 | 24.96 | 9.87 | 15.61 | -10.15 | 160.33 | -33.75 | 116.38 | 0.6127 | -880.2 | -361.2 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -13.97 | 158.60 | -35.48 | 120.57 | 0.6565 | -723.0 | -680.4 | |
| 0.53 | 3.35 | 0.34 | 2.13 | -10.15 | 158.96 | -35.12 | 115.47 | 0.6295 | 882.0 | 745.9 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -13.58 | 158.17 | -35.91 | 119.75 | 0.6589 | -384.0 | -410.3 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -11.08 | 158.23 | -35.85 | 116.33 | 0.6435 | 575.0 | 521.7 | |
| 0.00 | 2.12 | 0.00 | 1.37 | -10.65 | 157.99 | -36.09 | 115.57 | 0.6441 | 715.0 | 647.2 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -11.22 | 157.49 | -36.59 | 116.06 | 0.6532 | 554.0 | 463.8 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -13.42 | 156.93 | -37.15 | 118.70 | 0.6720 | -634.0 | -505.5 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -16.08 | 152.31 | -41.77 | 119.32 | 0.7364 | -580.0 | -552.0 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -15.76 | 152.27 | -41.82 | 118.90 | 0.7352 | -260.0 | -379.3 | |
| 0.00 | 1.50 | 0.00 | 1.10 | -15.91 | 152.02 | -42.07 | 118.94 | 0.7386 | -421.0 | -399.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
