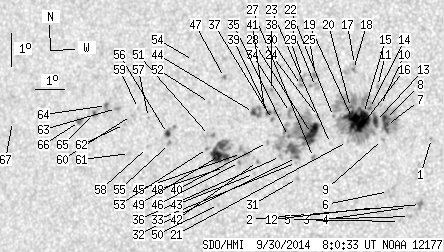

SDO HMI 2014-09-30 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.54 | 445.51 | 51.64 | 243.96 | 11.97 | 168.75 | -24.79 | 75.96 | 0.4242 | -186.0 | 54.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.70 | 11.87 | 172.94 | -20.60 | 74.32 | 0.3591 | -939.0 | -717.8 | |
| 0.00 | 4.14 | 0.00 | 2.20 | 9.87 | 172.72 | -20.81 | 79.95 | 0.3571 | -1116.0 | -879.7 | |
| 0.00 | 2.29 | 0.00 | 1.22 | 9.50 | 172.38 | -21.15 | 81.10 | 0.3618 | -788.0 | -637.7 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 9.77 | 172.30 | -21.23 | 80.38 | 0.3636 | -792.0 | -650.2 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 9.34 | 172.07 | -21.47 | 81.63 | 0.3666 | -630.0 | -510.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 10.22 | 171.65 | -21.89 | 79.37 | 0.3749 | -754.0 | -584.7 | |
| 3.97 | 32.01 | 2.13 | 17.15 | 12.20 | 171.42 | -22.11 | 74.29 | 0.3838 | -1194.9 | -597.6 | |
| 3.62 | -7.00 | 1.94 | -7.00 | 12.41 | 171.37 | -22.16 | 73.79 | 0.3853 | -1094.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 11.78 | 171.33 | -22.21 | 75.44 | 0.3839 | -856.0 | -691.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 12.80 | 171.17 | -22.36 | 72.93 | 0.3898 | -638.0 | -499.3 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 13.37 | 171.02 | -22.52 | 71.60 | 0.3943 | -682.0 | -562.3 | |
| 0.00 | 1.76 | 0.00 | 0.94 | 9.72 | 171.29 | -22.25 | 80.79 | 0.3797 | -658.0 | -514.5 | |
| 4.23 | 146.74 | 2.28 | 79.27 | 12.31 | 171.05 | -22.48 | 74.22 | 0.3899 | -1072.4 | -306.0 | |
| 0.62 | -13.00 | 0.33 | -13.00 | 12.69 | 170.81 | -22.72 | 73.39 | 0.3949 | -847.1 | 999999 | |
| 6.00 | -13.00 | 3.23 | -13.00 | 12.53 | 170.63 | -22.90 | 73.89 | 0.3972 | -990.1 | 999999 | |
| 16.05 | -13.00 | 8.65 | -13.00 | 12.17 | 170.60 | -22.94 | 74.80 | 0.3965 | -1251.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 14.00 | 170.18 | -23.35 | 70.60 | 0.4095 | -541.0 | -481.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 13.84 | 170.16 | -23.37 | 70.97 | 0.4091 | -628.0 | -570.0 | |
| 16.75 | -13.00 | 9.06 | -13.00 | 12.37 | 170.28 | -23.26 | 74.47 | 0.4020 | -1046.9 | 999999 | |
| 1.85 | -13.00 | 1.00 | -13.00 | 12.69 | 170.18 | -23.36 | 73.72 | 0.4046 | -622.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 11.67 | 170.17 | -23.36 | 76.24 | 0.4015 | -673.0 | -536.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 12.40 | 169.64 | -23.90 | 74.70 | 0.4119 | -587.0 | -401.8 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 11.58 | 169.61 | -23.92 | 76.68 | 0.4100 | -675.0 | -499.3 | |
| 0.00 | 1.59 | 0.00 | 0.87 | 12.37 | 169.13 | -24.40 | 74.99 | 0.4196 | -503.0 | -395.7 | |
| 0.00 | 3.09 | 0.00 | 1.69 | 13.61 | 168.90 | -24.63 | 72.24 | 0.4271 | 926.0 | 766.0 | |
| 0.00 | 5.56 | 0.00 | 3.04 | 13.27 | 168.94 | -24.60 | 72.99 | 0.4254 | 434.0 | 550.5 | |
| 0.00 | 1.94 | 0.00 | 1.06 | 11.13 | 169.08 | -24.45 | 77.95 | 0.4171 | 982.0 | 764.1 | |
| 17.11 | 104.76 | 9.33 | 57.36 | 11.85 | 168.95 | -24.59 | 76.29 | 0.4209 | -961.2 | 61.8 | |
| 0.00 | 3.97 | 0.00 | 2.18 | 13.52 | 168.47 | -25.07 | 72.65 | 0.4333 | 616.0 | 617.4 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 13.28 | 168.46 | -25.07 | 73.20 | 0.4326 | 1002.0 | 813.6 | |
| 0.00 | 2.12 | 0.00 | 1.16 | 10.48 | 168.60 | -24.94 | 79.65 | 0.4232 | 741.0 | 639.1 | |
| 0.62 | -28.00 | 0.34 | -28.00 | 11.11 | 168.51 | -25.02 | 78.20 | 0.4258 | 955.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 10.96 | 168.52 | -25.01 | 78.54 | 0.4253 | 656.0 | 589.9 | |
| 0.00 | 6.00 | 0.00 | 3.29 | 12.45 | 168.17 | -25.36 | 75.22 | 0.4343 | 527.0 | 602.2 | |
| 0.44 | -28.00 | 0.24 | -28.00 | 11.72 | 168.18 | -25.35 | 76.87 | 0.4323 | -603.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.16 | 11.11 | 167.97 | -25.57 | 78.35 | 0.4342 | 909.0 | 821.4 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 12.21 | 167.59 | -25.95 | 75.99 | 0.4426 | 945.0 | 834.4 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 13.08 | 167.46 | -26.08 | 74.11 | 0.4470 | 636.0 | 501.4 | |
| 1.41 | 6.61 | 0.78 | 3.65 | 12.41 | 167.43 | -26.11 | 75.60 | 0.4456 | 1048.8 | 808.1 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 11.51 | 167.49 | -26.05 | 77.60 | 0.4424 | 804.0 | 584.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 12.56 | 167.27 | -26.26 | 75.34 | 0.4483 | 891.0 | 731.9 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 10.92 | 167.20 | -26.33 | 79.00 | 0.4456 | 933.0 | 800.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 10.56 | 167.13 | -26.40 | 79.83 | 0.4460 | 812.0 | 639.6 | |
| 1.76 | 10.58 | 0.98 | 5.87 | 12.39 | 166.91 | -26.62 | 75.84 | 0.4532 | 879.6 | 774.2 | |
| 0.00 | 9.08 | 0.00 | 5.05 | 11.13 | 166.63 | -26.90 | 78.68 | 0.4546 | 498.0 | 886.5 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 10.86 | 166.59 | -26.94 | 79.29 | 0.4548 | 1000.0 | 832.5 | |
| 0.00 | 1.94 | 0.00 | 1.09 | 13.39 | 165.79 | -27.74 | 74.13 | 0.4727 | 860.0 | 749.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 10.68 | 166.09 | -27.44 | 79.79 | 0.4621 | 693.0 | 477.9 | |
| 14.64 | 33.77 | 8.19 | 18.88 | 11.03 | 165.88 | -27.65 | 79.08 | 0.4658 | 974.8 | 835.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 9.56 | 165.99 | -27.55 | 82.24 | 0.4622 | 647.0 | 491.5 | |
| 0.00 | 2.73 | 0.00 | 1.54 | 11.62 | 165.48 | -28.06 | 77.95 | 0.4730 | 747.0 | 673.9 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 12.61 | 165.36 | -28.17 | 75.91 | 0.4770 | 510.0 | 499.7 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 11.22 | 165.45 | -28.09 | 78.79 | 0.4727 | 578.0 | 477.8 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 13.84 | 164.64 | -28.89 | 73.64 | 0.4909 | 856.0 | 582.7 | |
| 0.00 | 2.20 | 0.00 | 1.25 | 11.30 | 164.11 | -29.42 | 78.94 | 0.4928 | -1017.0 | -811.2 | |
| 2.12 | 7.41 | 1.20 | 4.21 | 11.60 | 164.01 | -29.53 | 78.36 | 0.4949 | -828.5 | -641.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 12.04 | 163.28 | -30.25 | 77.66 | 0.5064 | 543.0 | 403.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 11.14 | 163.35 | -30.18 | 79.42 | 0.5038 | -674.0 | -572.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 12.29 | 162.89 | -30.64 | 77.26 | 0.5126 | 649.0 | 586.7 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 12.07 | 162.67 | -30.86 | 77.75 | 0.5154 | 928.0 | 799.9 | |
| 0.00 | 2.12 | 0.00 | 1.22 | 10.92 | 162.74 | -30.80 | 79.96 | 0.5126 | 798.0 | 548.0 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 11.78 | 162.46 | -31.08 | 78.35 | 0.5180 | 694.0 | 492.1 | |
| 0.00 | 2.20 | 0.00 | 1.28 | 12.25 | 162.11 | -31.43 | 77.54 | 0.5239 | 929.0 | 800.1 | |
| 0.79 | 4.23 | 0.46 | 2.47 | 12.31 | 161.74 | -31.80 | 77.50 | 0.5294 | 901.2 | 759.5 | |
| 1.06 | 4.41 | 0.62 | 2.58 | 12.05 | 161.34 | -32.20 | 78.08 | 0.5347 | 853.8 | 669.8 | |
| 1.50 | 3.88 | 0.88 | 2.28 | 11.77 | 160.83 | -32.71 | 78.69 | 0.5416 | 785.0 | 614.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 11.62 | 158.37 | -35.17 | 79.37 | 0.5762 | 547.0 | 362.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
