SDO HMI 2014-09-30 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.93 | 99.21 | 14.55 | 85.19 | -9.88 | 141.14 | -52.40 | 107.17 | 0.8191 | 722.8 | 249.8 | |
|
previous
or next observation for the same group /

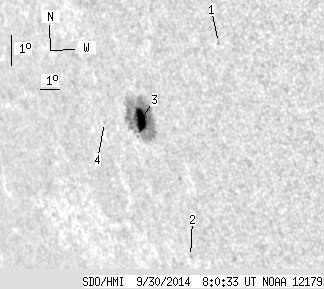

back to the solar disc SDO HMI 2014-09-30 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.82 | -7.09 | 145.34 | -48.20 | 105.15 | 0.7687 | 525.0 | 481.8 | |
| 0.00 | 1.06 | 0.00 | 0.91 | -14.05 | 142.45 | -51.08 | 112.50 | 0.8192 | 521.0 | 446.6 | |
| 16.93 | 96.30 | 14.55 | 82.74 | -9.86 | 141.10 | -52.44 | 107.13 | 0.8194 | 780.3 | 244.1 | |
| 0.00 | 0.79 | 0.00 | 0.72 | -10.14 | 139.18 | -54.36 | 106.85 | 0.8380 | 286.0 | 275.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
