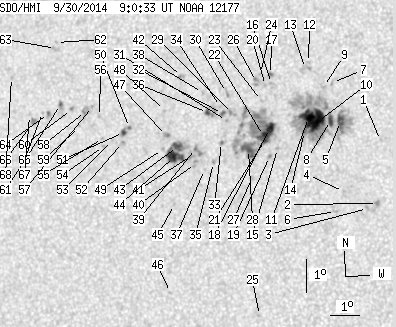

SDO HMI 2014-09-30 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.45 | 437.59 | 54.17 | 239.02 | 11.98 | 168.50 | -24.49 | 75.81 | 0.4196 | -33.6 | 31.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.65 | 11.79 | 172.72 | -20.26 | 74.35 | 0.3536 | -636.0 | -513.4 | |
| 0.00 | 2.65 | 0.00 | 1.40 | 9.89 | 172.76 | -20.23 | 79.69 | 0.3477 | -1091.0 | -933.5 | |
| 0.00 | 2.20 | 0.00 | 1.17 | 9.73 | 172.44 | -20.54 | 80.26 | 0.3525 | -841.0 | -664.0 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 10.21 | 171.63 | -21.36 | 79.21 | 0.3665 | -940.0 | -746.1 | |
| 6.35 | 31.83 | 3.39 | 17.00 | 12.31 | 171.37 | -21.62 | 73.74 | 0.3766 | -1172.7 | -661.2 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 9.60 | 171.41 | -21.58 | 80.94 | 0.3688 | -628.0 | -462.1 | |
| 0.00 | 1.94 | 0.00 | 1.04 | 13.47 | 170.99 | -21.99 | 70.99 | 0.3868 | -569.0 | -520.9 | |
| 4.32 | 131.91 | 2.31 | 70.97 | 12.33 | 171.03 | -21.95 | 73.88 | 0.3818 | -1043.6 | -389.0 | |
| 0.00 | 1.85 | 0.00 | 1.00 | 13.34 | 170.71 | -22.28 | 71.51 | 0.3906 | -771.0 | -507.9 | |
| 17.81 | -8.00 | 9.57 | -8.00 | 12.28 | 170.61 | -22.38 | 74.24 | 0.3883 | -1212.4 | 999999 | |
| 14.99 | -8.00 | 8.07 | -8.00 | 12.39 | 170.30 | -22.69 | 74.13 | 0.3934 | -1064.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 14.04 | 170.13 | -22.85 | 70.16 | 0.4022 | -423.0 | -284.4 | |
| 0.00 | 6.61 | 0.00 | 3.58 | 13.86 | 170.05 | -22.93 | 70.66 | 0.4027 | 37.0 | -127.8 | |
| 1.06 | -8.00 | 0.57 | -8.00 | 11.96 | 170.20 | -22.79 | 75.25 | 0.3935 | -535.9 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 11.41 | 169.35 | -23.64 | 76.98 | 0.4051 | -713.0 | -536.2 | |
| 0.00 | 1.59 | 0.00 | 0.86 | 13.35 | 168.96 | -24.03 | 72.49 | 0.4172 | 755.0 | 592.3 | |
| 0.35 | 2.29 | 0.19 | 1.25 | 13.62 | 168.90 | -24.09 | 71.90 | 0.4191 | 835.8 | 736.2 | |
| 8.11 | 111.72 | 4.41 | 60.89 | 12.00 | 169.03 | -23.96 | 75.68 | 0.4117 | -1030.0 | 70.0 | |
| 0.00 | 1.85 | 0.00 | 1.00 | 11.15 | 169.10 | -23.88 | 77.69 | 0.4083 | 888.0 | 665.0 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 13.29 | 168.76 | -24.22 | 72.76 | 0.4199 | 848.0 | 654.9 | |
| 3.79 | -18.00 | 2.06 | -18.00 | 11.63 | 168.89 | -24.09 | 76.62 | 0.4128 | -876.4 | 999999 | |
| 5.82 | -18.00 | 3.16 | -18.00 | 11.78 | 168.85 | -24.14 | 76.28 | 0.4139 | -880.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 12.83 | 168.68 | -24.31 | 73.87 | 0.4196 | 218.0 | 196.1 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 13.64 | 168.56 | -24.43 | 72.05 | 0.4243 | 536.0 | 470.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 6.37 | 169.09 | -23.90 | 89.52 | 0.4043 | 539.0 | 503.9 | |
| 0.00 | 4.76 | 0.00 | 2.60 | 13.39 | 168.45 | -24.54 | 72.68 | 0.4250 | 767.0 | 720.8 | |
| 0.00 | 2.65 | 0.00 | 1.44 | 10.47 | 168.56 | -24.43 | 79.53 | 0.4153 | 701.0 | 593.1 | |
| 9.79 | -18.00 | 5.34 | -18.00 | 11.33 | 168.38 | -24.61 | 77.52 | 0.4199 | 528.3 | 999999 | |
| 0.00 | 3.26 | 0.00 | 1.79 | 12.39 | 167.74 | -25.25 | 75.30 | 0.4325 | 856.0 | 812.0 | |
| 0.00 | 2.91 | 0.00 | 1.60 | 13.01 | 167.47 | -25.52 | 74.01 | 0.4385 | 561.0 | 510.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 12.17 | 167.56 | -25.43 | 75.88 | 0.4347 | 947.0 | 807.3 | |
| 1.06 | 2.29 | 0.58 | 1.26 | 12.37 | 167.40 | -25.59 | 75.48 | 0.4376 | 1028.3 | 849.3 | |
| 0.35 | 1.41 | 0.19 | 0.78 | 11.50 | 167.45 | -25.54 | 77.44 | 0.4346 | 765.8 | 683.6 | |
| 0.00 | 1.59 | 0.00 | 0.87 | 12.58 | 167.31 | -25.68 | 75.05 | 0.4396 | 708.0 | 631.7 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 10.88 | 167.24 | -25.75 | 78.91 | 0.4366 | 898.0 | 702.8 | |
| 1.85 | 8.99 | 1.02 | 4.97 | 12.38 | 166.88 | -26.10 | 75.67 | 0.4454 | 861.3 | 770.5 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 10.66 | 166.95 | -26.04 | 79.50 | 0.4405 | 773.0 | 622.4 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 12.97 | 166.65 | -26.34 | 74.45 | 0.4507 | 744.0 | 442.8 | |
| 0.35 | 6.08 | 0.20 | 3.36 | 11.28 | 166.59 | -26.40 | 78.22 | 0.4473 | 1014.0 | 859.6 | |
| 0.00 | 3.26 | 0.00 | 1.80 | 10.82 | 166.63 | -26.36 | 79.21 | 0.4458 | 658.0 | 759.0 | |
| 0.00 | 3.88 | 0.00 | 2.15 | 11.06 | 166.47 | -26.52 | 78.73 | 0.4486 | 939.0 | 778.3 | |
| 0.00 | 2.91 | 0.00 | 1.63 | 13.42 | 165.87 | -27.12 | 73.81 | 0.4636 | 888.0 | 711.9 | |
| 5.20 | 32.63 | 2.89 | 18.14 | 11.30 | 165.97 | -27.02 | 78.33 | 0.4568 | 1077.6 | 722.9 | |
| 14.37 | -43.00 | 8.00 | -43.00 | 11.00 | 165.89 | -27.09 | 79.02 | 0.4573 | 957.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 9.56 | 166.02 | -26.96 | 82.15 | 0.4532 | 545.0 | 450.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 6.91 | 166.08 | -26.91 | 88.02 | 0.4514 | 660.0 | 497.9 | |
| 0.00 | 3.62 | 0.00 | 2.02 | 11.61 | 165.55 | -27.43 | 77.77 | 0.4637 | 926.0 | 774.2 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 12.36 | 165.40 | -27.58 | 76.22 | 0.4676 | 606.0 | 487.8 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 11.19 | 165.46 | -27.53 | 78.72 | 0.4642 | 586.0 | 464.1 | |
| 0.53 | 6.26 | 0.30 | 3.54 | 11.79 | 164.25 | -28.74 | 77.77 | 0.4836 | -713.8 | -597.1 | |
| 1.94 | -50.00 | 1.10 | -50.00 | 11.63 | 164.06 | -28.93 | 78.15 | 0.4861 | -783.5 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.05 | 11.32 | 164.05 | -28.93 | 78.77 | 0.4856 | -949.0 | -782.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 11.36 | 163.70 | -29.29 | 78.77 | 0.4910 | -711.0 | -605.7 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 11.17 | 163.40 | -29.58 | 79.24 | 0.4950 | -793.0 | -664.2 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 11.40 | 163.34 | -29.65 | 78.77 | 0.4963 | -589.0 | -385.1 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 12.06 | 163.16 | -29.83 | 77.50 | 0.5002 | 607.0 | 446.9 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 12.35 | 162.87 | -30.11 | 77.01 | 0.5050 | 781.0 | 681.9 | |
| 0.00 | 6.08 | 0.00 | 3.49 | 12.18 | 162.65 | -30.34 | 77.39 | 0.5080 | 1017.0 | 752.1 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 11.72 | 162.49 | -30.50 | 78.34 | 0.5094 | 610.0 | 465.6 | |
| 0.00 | 1.32 | 0.00 | 0.76 | 12.21 | 162.14 | -30.85 | 77.46 | 0.5154 | 890.0 | 778.3 | |
| 0.88 | 4.23 | 0.51 | 2.45 | 12.34 | 161.73 | -31.26 | 77.31 | 0.5216 | 817.5 | 716.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 14.20 | 161.32 | -31.67 | 73.93 | 0.5318 | 704.0 | 595.1 | |
| 0.00 | 3.44 | 0.00 | 2.01 | 14.02 | 161.31 | -31.68 | 74.27 | 0.5314 | 658.0 | 537.4 | |
| 0.53 | 2.56 | 0.31 | 1.49 | 12.04 | 161.34 | -31.65 | 77.96 | 0.5268 | 870.7 | 737.7 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 12.06 | 161.12 | -31.87 | 77.98 | 0.5300 | 583.0 | 456.4 | |
| 0.00 | 3.62 | 0.00 | 2.11 | 11.77 | 160.83 | -32.16 | 78.58 | 0.5337 | 776.0 | 679.8 | |
| 0.00 | 1.68 | 0.00 | 0.98 | 11.94 | 160.66 | -32.33 | 78.30 | 0.5364 | 298.0 | 350.7 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 13.05 | 159.84 | -33.14 | 76.45 | 0.5500 | 600.0 | 479.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
