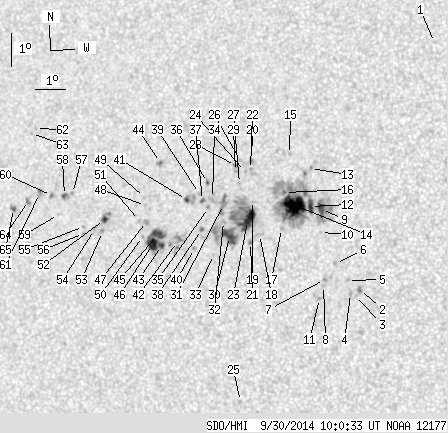

SDO HMI 2014-09-30 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.85 | 431.56 | 52.02 | 234.45 | 11.94 | 168.62 | -23.82 | 75.61 | 0.4095 | -86.0 | -18.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.70 | 17.46 | 174.63 | -17.81 | 56.73 | 0.3504 | 0.0 | -6.5 | |
| 0.00 | 3.00 | 0.00 | 1.58 | 9.91 | 172.79 | -19.64 | 79.40 | 0.3384 | -1081.0 | -868.9 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 9.73 | 172.68 | -19.76 | 79.98 | 0.3399 | -601.0 | -550.2 | |
| 0.00 | 2.29 | 0.00 | 1.21 | 9.78 | 172.51 | -19.93 | 79.89 | 0.3427 | -806.0 | -695.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 10.17 | 172.39 | -20.05 | 78.81 | 0.3455 | -748.0 | -554.0 | |
| 0.00 | 2.03 | 0.00 | 1.07 | 10.66 | 171.97 | -20.47 | 77.59 | 0.3535 | -741.0 | -733.3 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 10.17 | 171.64 | -20.80 | 79.11 | 0.3575 | -913.0 | -799.3 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 9.99 | 171.62 | -20.82 | 79.62 | 0.3574 | -753.0 | -620.5 | |
| 6.00 | 168.66 | 3.19 | 90.26 | 12.27 | 171.39 | -21.05 | 73.50 | 0.3677 | -1203.9 | -446.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 11.58 | 171.41 | -21.03 | 75.35 | 0.3650 | -732.0 | -518.4 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 9.59 | 171.52 | -20.92 | 80.76 | 0.3583 | -622.0 | -373.2 | |
| 5.03 | -9.00 | 2.68 | -9.00 | 12.35 | 171.02 | -21.42 | 73.52 | 0.3737 | -986.3 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 13.49 | 170.91 | -21.53 | 70.63 | 0.3798 | -722.0 | -513.4 | |
| 30.59 | -9.00 | 16.39 | -9.00 | 12.35 | 170.49 | -21.95 | 73.80 | 0.3819 | -1139.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 13.88 | 170.18 | -22.26 | 70.15 | 0.3927 | -742.0 | -553.2 | |
| 0.53 | -9.00 | 0.28 | -9.00 | 12.73 | 170.12 | -22.32 | 73.05 | 0.3889 | -660.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 11.64 | 170.12 | -22.32 | 75.82 | 0.3854 | -766.0 | -546.7 | |
| 0.00 | 3.26 | 0.00 | 1.76 | 11.43 | 169.40 | -23.04 | 76.67 | 0.3959 | -578.0 | -532.6 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 12.44 | 169.08 | -23.36 | 74.32 | 0.4039 | -476.0 | -443.8 | |
| 0.00 | 1.76 | 0.00 | 0.96 | 13.65 | 168.92 | -23.52 | 71.51 | 0.4106 | 765.0 | 685.0 | |
| 0.00 | 1.94 | 0.00 | 1.05 | 11.18 | 169.12 | -23.32 | 77.41 | 0.3996 | 874.0 | 664.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 13.38 | 168.92 | -23.52 | 72.16 | 0.4096 | 850.0 | 727.8 | |
| 15.87 | 91.96 | 8.59 | 49.88 | 11.83 | 168.97 | -23.47 | 75.86 | 0.4038 | -930.9 | -9.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 13.31 | 168.76 | -23.68 | 72.41 | 0.4118 | 858.0 | 651.8 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 6.39 | 169.11 | -23.33 | 89.51 | 0.3953 | 776.0 | 552.8 | |
| 0.00 | 1.94 | 0.00 | 1.06 | 13.63 | 168.55 | -23.88 | 71.76 | 0.4161 | 527.0 | 463.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.94 | 168.59 | -23.85 | 73.38 | 0.4130 | 706.0 | 542.9 | |
| 0.00 | 2.29 | 0.00 | 1.25 | 13.47 | 168.40 | -24.04 | 72.21 | 0.4178 | 736.0 | 638.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 13.29 | 168.42 | -24.02 | 72.63 | 0.4168 | 937.0 | 779.9 | |
| 10.67 | -23.00 | 5.79 | -23.00 | 11.33 | 168.41 | -24.03 | 77.32 | 0.4110 | 488.5 | 999999 | |
| 0.00 | 9.61 | 0.00 | 5.24 | 12.28 | 168.12 | -24.32 | 75.16 | 0.4181 | 346.0 | 599.6 | |
| 0.00 | 2.29 | 0.00 | 1.25 | 11.77 | 168.17 | -24.27 | 76.35 | 0.4159 | -598.0 | -459.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 10.76 | 167.92 | -24.52 | 78.84 | 0.4173 | 738.0 | 574.4 | |
| 0.00 | 5.03 | 0.00 | 2.75 | 12.44 | 167.73 | -24.71 | 74.94 | 0.4245 | 895.0 | 737.5 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 12.17 | 167.62 | -24.82 | 75.63 | 0.4253 | 880.0 | 764.9 | |
| 0.62 | 1.41 | 0.34 | 0.77 | 12.92 | 167.51 | -24.93 | 73.95 | 0.4293 | 779.0 | 642.3 | |
| 0.62 | 1.94 | 0.34 | 1.06 | 12.37 | 167.40 | -25.04 | 75.26 | 0.4293 | 1026.1 | 848.0 | |
| 0.62 | 1.85 | 0.34 | 1.01 | 11.49 | 167.45 | -24.99 | 77.27 | 0.4262 | 762.7 | 642.8 | |
| 0.00 | 1.85 | 0.00 | 1.02 | 12.57 | 167.28 | -25.16 | 74.84 | 0.4318 | 841.0 | 647.5 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 10.91 | 167.27 | -25.17 | 78.68 | 0.4277 | 857.0 | 734.3 | |
| 1.32 | 7.93 | 0.73 | 4.36 | 12.37 | 166.85 | -25.59 | 75.47 | 0.4376 | 855.9 | 796.0 | |
| 0.00 | 18.43 | 0.00 | 10.14 | 11.09 | 166.67 | -25.77 | 78.44 | 0.4372 | 922.0 | 753.2 | |
| 2.47 | 31.74 | 1.36 | 17.57 | 10.95 | 166.14 | -26.30 | 78.92 | 0.4451 | 1018.5 | 724.1 | |
| 0.35 | 2.82 | 0.20 | 1.57 | 13.44 | 165.84 | -26.60 | 73.53 | 0.4560 | 869.5 | 710.8 | |
| 7.14 | -43.00 | 3.95 | -43.00 | 11.27 | 165.97 | -26.47 | 78.24 | 0.4483 | 1027.5 | 999999 | |
| 9.17 | -43.00 | 5.08 | -43.00 | 10.96 | 165.83 | -26.61 | 78.97 | 0.4498 | 925.2 | 999999 | |
| 0.00 | 3.35 | 0.00 | 1.86 | 11.64 | 165.56 | -26.88 | 77.55 | 0.4554 | 803.0 | 746.1 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 12.12 | 165.47 | -26.97 | 76.53 | 0.4578 | 615.0 | 562.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 12.36 | 165.41 | -27.03 | 76.04 | 0.4593 | 548.0 | 467.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 11.18 | 165.47 | -26.97 | 78.57 | 0.4558 | 546.0 | 451.6 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 11.66 | 165.32 | -27.12 | 77.58 | 0.4591 | 623.0 | 530.4 | |
| 2.38 | 6.88 | 1.34 | 3.87 | 11.63 | 164.11 | -28.33 | 77.99 | 0.4772 | -778.6 | -581.1 | |
| 0.00 | 1.76 | 0.00 | 0.99 | 11.26 | 164.08 | -28.36 | 78.76 | 0.4770 | -914.0 | -761.8 | |
| 0.00 | 3.61 | 0.00 | 2.04 | 11.31 | 163.79 | -28.65 | 78.74 | 0.4813 | -859.0 | -670.3 | |
| 0.00 | 1.41 | 0.00 | 0.80 | 11.38 | 163.40 | -29.04 | 78.69 | 0.4873 | -686.0 | -580.9 | |
| 0.00 | 1.59 | 0.00 | 0.90 | 11.17 | 163.42 | -29.02 | 79.11 | 0.4866 | -796.0 | -674.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 12.35 | 162.90 | -29.54 | 76.85 | 0.4966 | 819.0 | 740.4 | |
| 1.15 | 4.50 | 0.65 | 2.57 | 12.27 | 162.62 | -29.82 | 77.08 | 0.5005 | 915.9 | 747.9 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 11.69 | 162.48 | -29.96 | 78.27 | 0.5015 | 650.0 | 517.6 | |
| 0.00 | 2.56 | 0.00 | 1.47 | 12.24 | 162.17 | -30.27 | 77.25 | 0.5072 | 915.0 | 734.9 | |
| 0.00 | 3.53 | 0.00 | 2.03 | 12.28 | 161.73 | -30.71 | 77.29 | 0.5136 | 857.0 | 749.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 14.23 | 161.32 | -31.12 | 73.69 | 0.5241 | 666.0 | 557.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 14.07 | 161.19 | -31.25 | 74.03 | 0.5254 | 616.0 | 476.2 | |
| 0.00 | 3.44 | 0.00 | 1.99 | 12.05 | 161.37 | -31.07 | 77.83 | 0.5184 | 741.0 | 722.7 | |
| 1.32 | 3.61 | 0.77 | 2.10 | 11.77 | 160.86 | -31.58 | 78.46 | 0.5253 | 732.1 | 562.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
