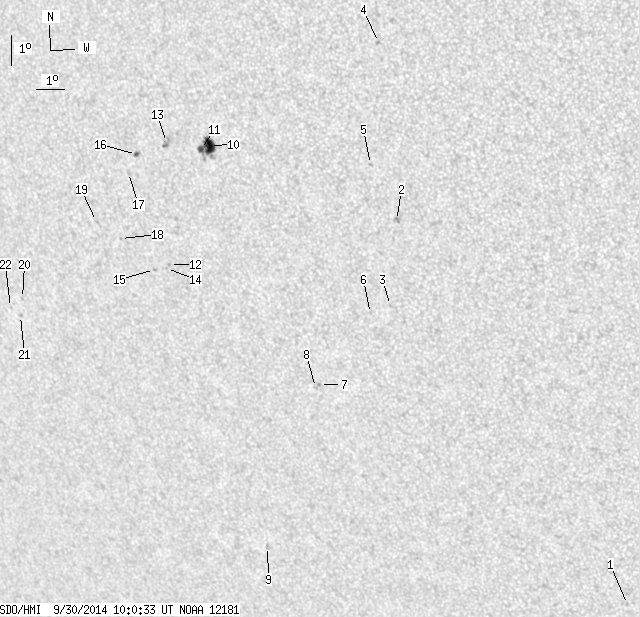

SDO HMI 2014-09-30 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.04 | 55.28 | 9.85 | 34.35 | -12.08 | 160.68 | -31.76 | 120.72 | 0.6025 | -169.1 | 124.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.82 | -24.57 | 173.17 | -19.27 | 149.71 | 0.5972 | 560.0 | 454.2 | |
| 0.00 | 3.00 | 0.00 | 1.74 | -12.12 | 166.94 | -25.50 | 126.56 | 0.5261 | 662.0 | 617.7 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -14.86 | 166.41 | -26.03 | 130.07 | 0.5563 | 621.0 | 531.3 | |
| 0.00 | 2.03 | 0.00 | 1.15 | -6.57 | 166.78 | -25.66 | 116.96 | 0.4846 | 838.0 | 662.2 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -10.39 | 166.23 | -26.21 | 123.06 | 0.5204 | 718.0 | 567.9 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -15.16 | 165.68 | -26.76 | 129.71 | 0.5671 | 522.0 | 412.6 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -17.60 | 163.48 | -28.96 | 130.79 | 0.6118 | 690.0 | 610.0 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -17.71 | 163.32 | -29.12 | 130.77 | 0.6144 | 478.0 | 448.8 | |
| 0.00 | 1.68 | 0.00 | 1.14 | -23.24 | 160.29 | -32.15 | 134.66 | 0.6898 | 628.0 | 549.7 | |
| 12.25 | 24.33 | 7.50 | 14.90 | -10.12 | 160.63 | -31.81 | 117.73 | 0.5885 | -918.3 | -333.4 | |
| 2.64 | -10.00 | 1.62 | -10.00 | -10.27 | 160.28 | -32.15 | 117.69 | 0.5937 | -510.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -14.02 | 158.61 | -33.83 | 121.82 | 0.6379 | -502.0 | -443.5 | |
| 0.00 | 5.29 | 0.00 | 3.29 | -10.13 | 159.06 | -33.37 | 116.60 | 0.6079 | 803.0 | 692.6 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -14.15 | 158.48 | -33.96 | 121.91 | 0.6404 | -664.0 | -515.4 | |
| 0.00 | 1.23 | 0.00 | 0.80 | -14.22 | 158.02 | -34.42 | 121.65 | 0.6460 | -629.0 | -595.4 | |
| 1.15 | 2.29 | 0.73 | 1.45 | -10.58 | 157.90 | -34.54 | 116.47 | 0.6248 | 749.0 | 638.0 | |
| 0.00 | 2.20 | 0.00 | 1.41 | -11.17 | 157.52 | -34.92 | 117.06 | 0.6329 | 317.0 | 281.7 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -13.31 | 156.89 | -35.55 | 119.61 | 0.6531 | -612.0 | -454.0 | |
| 0.00 | 1.41 | 0.00 | 0.93 | -12.83 | 156.05 | -36.38 | 118.39 | 0.6598 | -623.0 | -527.4 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -15.55 | 152.58 | -39.86 | 119.76 | 0.7135 | -510.0 | -502.0 | |
| 0.00 | 1.41 | 0.00 | 1.00 | -16.11 | 152.37 | -40.07 | 120.34 | 0.7189 | -629.0 | -566.1 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -15.88 | 152.01 | -40.43 | 119.84 | 0.7214 | -380.0 | -405.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
