SDO HMI 2014-09-30 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.13 | 0.00 | 9.56 | -24.51 | 197.78 | 5.89 | 190.91 | 0.5414 | -294.2 | -269.5 | |
|
previous
or next observation for the same group /

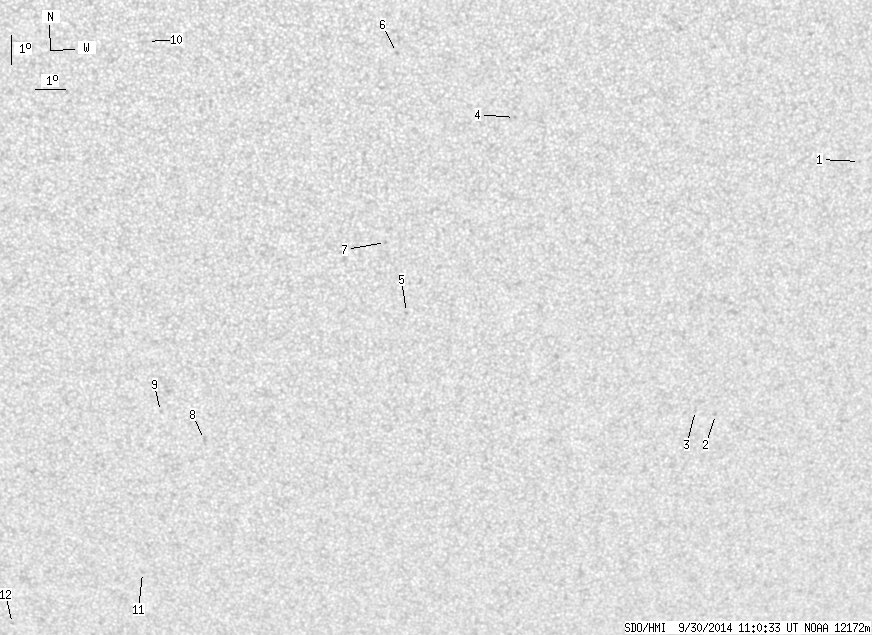

back to the solar disc SDO HMI 2014-09-30 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.52 | -18.09 | 214.01 | 22.12 | 221.00 | 0.5477 | 734.0 | 590.2 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -26.61 | 210.30 | 18.41 | 207.42 | 0.6155 | 678.0 | 601.2 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -26.43 | 209.57 | 17.67 | 206.63 | 0.6088 | 607.0 | 505.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -16.23 | 202.52 | 10.63 | 204.51 | 0.4285 | -806.0 | -641.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -22.69 | 199.39 | 7.50 | 193.79 | 0.5071 | -515.0 | -491.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -14.05 | 198.71 | 6.82 | 198.03 | 0.3740 | -843.0 | -686.6 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -20.29 | 198.59 | 6.70 | 193.55 | 0.4687 | -710.0 | -553.7 | |
| 0.00 | 2.73 | 0.00 | 1.63 | -27.11 | 192.82 | 0.93 | 181.48 | 0.5594 | -744.0 | -626.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -26.10 | 191.34 | -0.55 | 179.09 | 0.5445 | -627.0 | -465.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.63 | 190.99 | -0.90 | 177.50 | 0.3500 | -5.0 | 1.4 | |
| 0.00 | 1.76 | 0.00 | 1.12 | -32.08 | 190.66 | -1.23 | 178.34 | 0.6294 | -686.0 | -463.6 | |
| 0.00 | 1.32 | 0.00 | 0.87 | -34.11 | 185.90 | -5.99 | 172.47 | 0.6616 | -613.0 | -451.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
