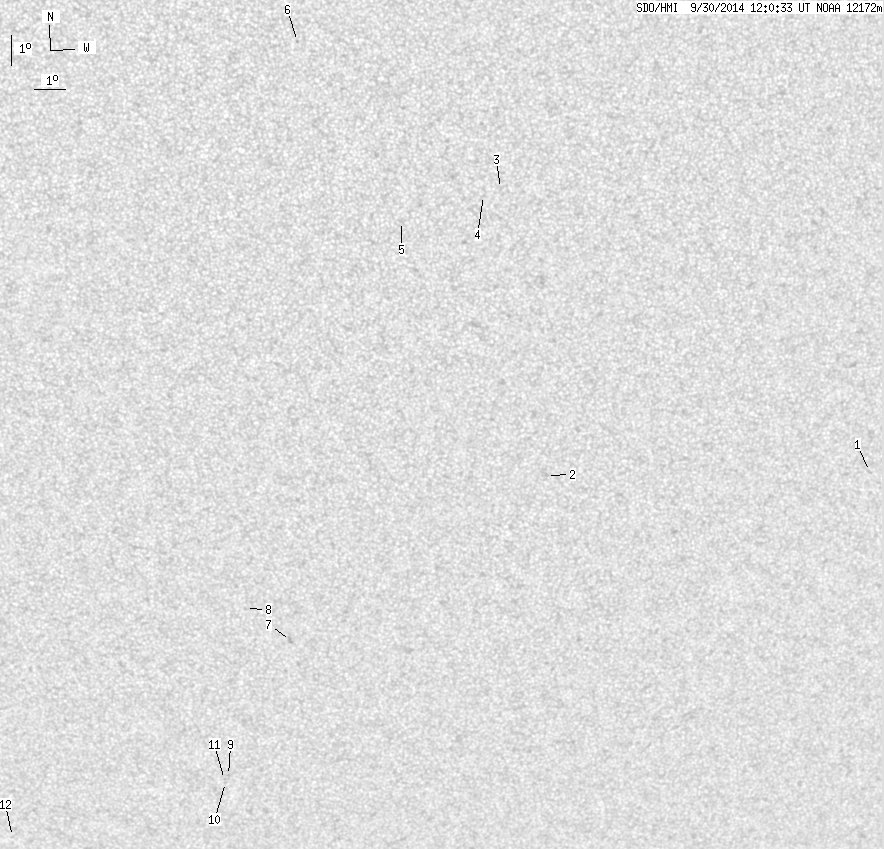

SDO HMI 2014-09-30 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.07 | 0.00 | 8.78 | -23.01 | 195.18 | 3.83 | 188.79 | 0.5092 | -362.8 | -288.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.91 | -21.77 | 211.96 | 20.61 | 214.80 | 0.5750 | 248.0 | 285.9 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -21.54 | 201.10 | 9.75 | 198.46 | 0.4998 | -384.0 | -320.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -12.09 | 199.20 | 7.85 | 202.56 | 0.3498 | 13.0 | 18.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.30 | 198.68 | 7.33 | 200.98 | 0.3499 | -18.0 | -6.4 | |
| 0.00 | 3.00 | 0.00 | 1.58 | -13.09 | 196.16 | 4.81 | 193.56 | 0.3501 | -17.0 | -5.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -7.41 | 192.92 | 1.58 | 186.39 | 0.2471 | -767.0 | -610.1 | |
| 0.00 | 2.38 | 0.00 | 1.42 | -27.22 | 192.85 | 1.50 | 182.39 | 0.5612 | -728.0 | -621.6 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -26.06 | 191.33 | -0.02 | 179.97 | 0.5439 | -315.0 | -353.6 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -32.27 | 190.72 | -0.63 | 179.16 | 0.6318 | -648.0 | -536.1 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -32.54 | 190.61 | -0.74 | 179.02 | 0.6355 | -571.0 | -467.4 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -32.43 | 190.57 | -0.77 | 178.97 | 0.6339 | -702.0 | -597.0 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -34.75 | 182.76 | -8.58 | 169.50 | 0.6750 | -465.0 | -406.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
