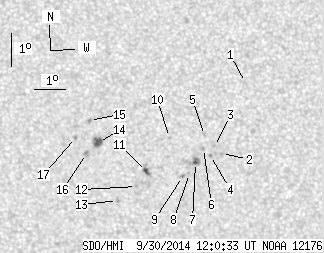

SDO HMI 2014-09-30 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.25 | 37.19 | 3.23 | 19.29 | 7.54 | 208.60 | 17.26 | 273.77 | 0.2961 | -138.3 | -3.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.70 | 9.55 | 211.80 | 20.46 | 279.29 | 0.3508 | 9.0 | 7.5 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 7.45 | 210.91 | 19.57 | 273.31 | 0.3341 | -820.0 | -630.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 7.67 | 210.70 | 19.35 | 273.98 | 0.3307 | -831.0 | -704.1 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 7.41 | 210.55 | 19.21 | 273.19 | 0.3282 | -862.0 | -761.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 8.02 | 210.39 | 19.05 | 275.07 | 0.3259 | -698.0 | -447.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 7.63 | 210.34 | 19.00 | 273.87 | 0.3248 | -842.0 | -702.0 | |
| 0.88 | 5.73 | 0.46 | 2.99 | 7.22 | 210.07 | 18.72 | 272.61 | 0.3202 | -1090.5 | -900.3 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 6.89 | 209.86 | 18.52 | 271.59 | 0.3168 | -700.0 | -544.4 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 6.81 | 209.63 | 18.29 | 271.32 | 0.3131 | -866.0 | -679.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 8.00 | 209.27 | 17.93 | 275.18 | 0.3074 | -793.0 | -681.0 | |
| 1.76 | 5.02 | 0.91 | 2.60 | 7.01 | 208.50 | 17.15 | 271.92 | 0.2942 | 843.2 | 576.4 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 6.57 | 208.16 | 16.82 | 270.39 | 0.2888 | -807.0 | -685.7 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 6.17 | 207.55 | 16.21 | 268.90 | 0.2788 | 830.0 | 695.4 | |
| 3.61 | 8.37 | 1.86 | 4.31 | 7.93 | 207.02 | 15.68 | 275.35 | 0.2700 | 1033.4 | 776.2 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 8.60 | 206.76 | 15.42 | 277.92 | 0.2666 | 907.0 | 712.3 | |
| 0.00 | 2.64 | 0.00 | 1.36 | 7.61 | 206.63 | 15.29 | 274.22 | 0.2632 | 904.0 | 759.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 8.10 | 206.30 | 14.96 | 276.18 | 0.2582 | 950.0 | 764.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
