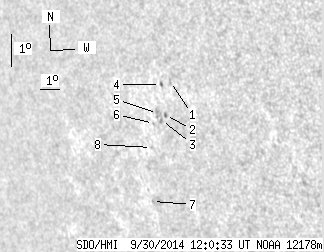

SDO HMI 2014-09-30 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.66 | 0.00 | 11.33 | -4.54 | 139.14 | -52.21 | 100.80 | 0.8042 | -513.2 | -486.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 1.58 | -3.48 | 139.76 | -51.59 | 99.66 | 0.7956 | -520.0 | -522.6 | |
| 0.00 | 1.41 | 0.00 | 1.16 | -4.55 | 139.41 | -51.93 | 100.89 | 0.8014 | -659.0 | -549.6 | |
| 0.00 | 1.67 | 0.00 | 1.39 | -4.73 | 139.20 | -52.15 | 101.05 | 0.8040 | -568.0 | -502.3 | |
| 0.00 | 1.50 | 0.00 | 1.23 | -3.62 | 139.25 | -52.09 | 99.71 | 0.8011 | -490.0 | -412.8 | |
| 0.00 | 4.76 | 0.00 | 3.96 | -4.53 | 139.02 | -52.32 | 100.76 | 0.8053 | -544.0 | -518.1 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -4.86 | 138.79 | -52.56 | 101.10 | 0.8084 | -399.0 | -348.3 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -7.29 | 138.39 | -52.96 | 103.91 | 0.8179 | -494.0 | -443.9 | |
| 0.00 | 0.79 | 0.00 | 0.67 | -5.61 | 138.59 | -52.75 | 101.96 | 0.8120 | -432.0 | -391.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
