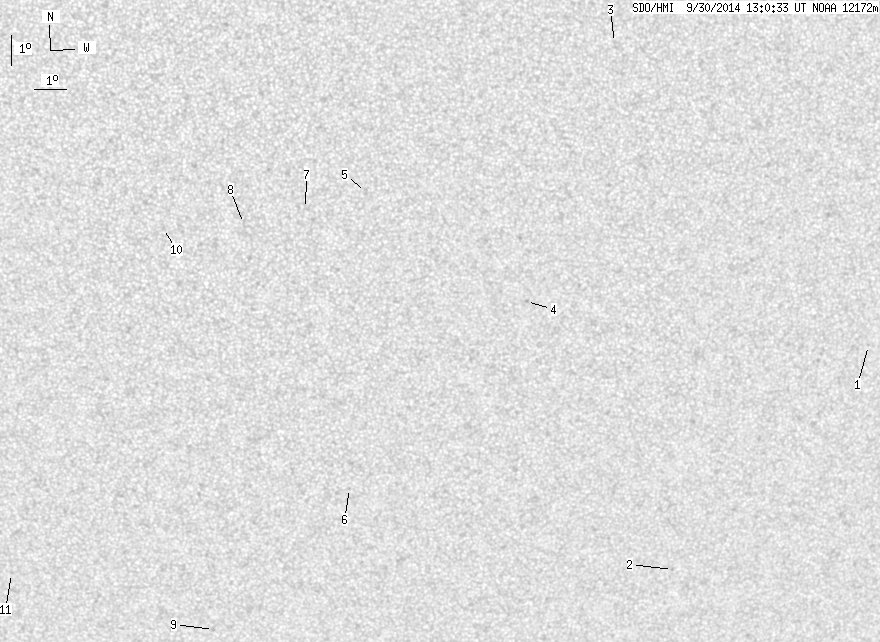

SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.04 | 0.00 | 8.83 | -16.58 | 197.96 | 7.17 | 196.46 | 0.4231 | -120.3 | -78.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.47 | -18.07 | 213.97 | 23.18 | 222.34 | 0.5577 | 704.0 | 486.6 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -25.46 | 208.28 | 17.49 | 207.20 | 0.5958 | 607.0 | 490.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -8.04 | 204.89 | 14.09 | 223.79 | 0.3499 | -11.0 | -2.7 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -16.19 | 202.50 | 11.71 | 206.72 | 0.4353 | -816.0 | -640.6 | |
| 0.00 | 3.00 | 0.00 | 1.58 | -12.54 | 197.30 | 6.50 | 198.56 | 0.3490 | 1.0 | -4.3 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -22.33 | 197.13 | 6.33 | 191.88 | 0.4978 | -358.0 | -264.5 | |
| 0.00 | 2.20 | 0.00 | 1.16 | -13.06 | 195.45 | 4.66 | 193.17 | 0.3489 | -2.0 | -1.4 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.52 | 193.54 | 2.75 | 187.68 | 0.3507 | -27.0 | -14.6 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -27.26 | 192.77 | 1.98 | 183.14 | 0.5621 | -696.0 | -571.0 | |
| 0.00 | 2.11 | 0.00 | 1.12 | -13.67 | 191.07 | 0.28 | 180.78 | 0.3502 | 0.0 | -6.6 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -25.26 | 186.03 | -4.77 | 171.92 | 0.5369 | -725.0 | -586.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
