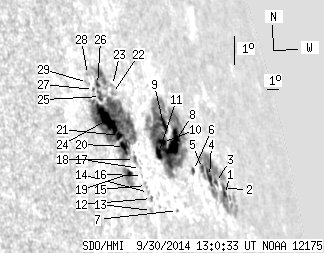

SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.74 | 475.42 | 121.95 | 664.87 | 15.24 | 260.84 | 70.04 | 283.82 | 0.9342 | -50.5 | -96.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.85 | 84.51 | 3.34 | 148.35 | 13.12 | 265.94 | 75.14 | 281.77 | 0.9628 | -272.7 | -50.3 | |
| 0.26 | -1.00 | 0.48 | -1.00 | 13.30 | 265.98 | 75.18 | 281.96 | 0.9629 | -108.3 | 999999 | |
| 1.50 | -1.00 | 2.60 | -1.00 | 13.57 | 265.26 | 74.46 | 282.20 | 0.9595 | -167.1 | 999999 | |
| 5.64 | -1.00 | 9.48 | -1.00 | 13.81 | 264.77 | 73.98 | 282.42 | 0.9570 | -407.1 | 999999 | |
| 2.20 | -1.00 | 3.60 | -1.00 | 14.12 | 264.25 | 73.46 | 282.72 | 0.9544 | -545.2 | 999999 | |
| 1.23 | 2.56 | 1.92 | 3.97 | 14.16 | 263.32 | 72.52 | 282.72 | 0.9495 | -374.0 | -311.0 | |
| 0.00 | 0.97 | 0.00 | 1.36 | 13.17 | 261.02 | 70.23 | 281.58 | 0.9368 | 218.0 | 164.5 | |
| 20.89 | 178.45 | 30.56 | 256.45 | 15.13 | 262.08 | 71.29 | 283.70 | 0.9425 | -559.6 | -294.3 | |
| 6.43 | -8.00 | 9.24 | -8.00 | 15.77 | 261.63 | 70.84 | 284.37 | 0.9399 | -543.6 | 999999 | |
| 5.20 | -8.00 | 7.29 | -8.00 | 15.27 | 261.13 | 70.34 | 283.82 | 0.9370 | -880.8 | 999999 | |
| 5.46 | -8.00 | 7.47 | -8.00 | 15.02 | 260.57 | 69.78 | 283.54 | 0.9338 | -130.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.70 | 13.76 | 259.10 | 68.30 | 282.13 | 0.9248 | 480.0 | 461.7 | |
| 0.00 | 2.47 | 0.00 | 3.15 | 13.41 | 258.88 | 68.09 | 281.75 | 0.9234 | 86.0 | 99.0 | |
| 0.00 | 0.70 | 0.00 | 0.90 | 13.95 | 258.97 | 68.17 | 282.34 | 0.9239 | 490.0 | 459.6 | |
| 0.00 | 2.03 | 0.00 | 2.59 | 14.17 | 258.94 | 68.14 | 282.58 | 0.9237 | 573.0 | 445.4 | |
| 0.00 | 0.79 | 0.00 | 1.01 | 14.50 | 258.81 | 68.02 | 282.93 | 0.9228 | 476.0 | 393.1 | |
| 0.00 | 0.26 | 0.00 | 0.34 | 14.72 | 258.79 | 67.99 | 283.17 | 0.9226 | 247.0 | 319.7 | |
| 0.00 | 3.88 | 0.00 | 4.88 | 15.03 | 258.49 | 67.70 | 283.50 | 0.9206 | 428.0 | 323.3 | |
| 2.47 | 12.25 | 3.03 | 14.96 | 14.66 | 257.85 | 67.05 | 283.09 | 0.9164 | 638.2 | 439.3 | |
| 7.58 | 156.07 | 9.33 | 189.98 | 15.49 | 257.98 | 67.18 | 283.99 | 0.9171 | 510.5 | 48.0 | |
| 3.79 | -20.00 | 4.63 | -20.00 | 15.85 | 257.81 | 67.02 | 284.38 | 0.9160 | 494.0 | 999999 | |
| 0.00 | 2.64 | 0.00 | 3.28 | 17.12 | 258.15 | 67.36 | 285.77 | 0.9182 | -467.0 | -352.1 | |
| 0.00 | 1.41 | 0.00 | 1.76 | 17.35 | 258.32 | 67.53 | 286.03 | 0.9194 | -324.0 | -248.6 | |
| 20.36 | -20.00 | 24.35 | -20.00 | 16.41 | 257.23 | 66.44 | 284.99 | 0.9121 | 671.3 | 999999 | |
| 2.38 | -20.00 | 2.84 | -20.00 | 17.13 | 257.18 | 66.39 | 285.79 | 0.9117 | 382.8 | 999999 | |
| 1.50 | 19.83 | 1.79 | 24.00 | 17.50 | 257.22 | 66.42 | 286.20 | 0.9120 | 326.2 | -195.4 | |
| 0.00 | 1.23 | 0.00 | 1.45 | 17.39 | 256.82 | 66.02 | 286.07 | 0.9092 | 591.0 | 556.4 | |
| 0.00 | 1.67 | 0.00 | 1.97 | 17.87 | 256.70 | 65.90 | 286.61 | 0.9084 | 331.0 | 304.7 | |
| 0.00 | 2.38 | 0.00 | 2.77 | 17.64 | 256.53 | 65.73 | 286.35 | 0.9072 | 563.0 | 478.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
