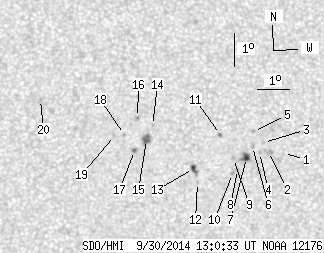

SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.90 | 42.11 | 3.08 | 21.93 | 7.56 | 208.74 | 17.94 | 273.87 | 0.3074 | -113.1 | -3.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | 7.32 | 211.35 | 20.56 | 272.90 | 0.3503 | -15.0 | -14.7 | |
| 0.00 | 3.61 | 0.00 | 1.90 | 7.40 | 210.87 | 20.08 | 273.14 | 0.3425 | -624.0 | -685.4 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 7.68 | 210.73 | 19.93 | 273.96 | 0.3401 | -798.0 | -629.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 7.39 | 210.58 | 19.79 | 273.10 | 0.3377 | -877.0 | -729.0 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 8.02 | 210.42 | 19.63 | 275.01 | 0.3354 | -789.0 | -576.4 | |
| 0.00 | 1.67 | 0.00 | 0.88 | 7.57 | 210.37 | 19.57 | 273.67 | 0.3342 | -827.0 | -685.7 | |
| 3.17 | 6.61 | 1.66 | 3.47 | 7.25 | 210.16 | 19.36 | 272.71 | 0.3307 | -1077.2 | -829.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 6.90 | 209.85 | 19.06 | 271.64 | 0.3258 | -706.0 | -515.2 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 7.24 | 209.74 | 18.95 | 272.67 | 0.3239 | -628.0 | -565.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 6.79 | 209.69 | 18.90 | 271.28 | 0.3231 | -748.0 | -589.4 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 7.97 | 209.36 | 18.57 | 275.01 | 0.3179 | -1006.0 | -890.1 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 6.56 | 208.57 | 17.77 | 270.47 | 0.3046 | -793.0 | -684.6 | |
| 2.29 | 5.38 | 1.19 | 2.79 | 6.99 | 208.46 | 17.66 | 271.87 | 0.3026 | 875.0 | 496.1 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 8.32 | 207.21 | 16.42 | 276.60 | 0.2828 | 627.0 | 502.9 | |
| 0.00 | 7.40 | 0.00 | 3.82 | 7.91 | 207.01 | 16.21 | 275.18 | 0.2789 | 1178.0 | 909.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 8.58 | 206.75 | 15.96 | 277.66 | 0.2755 | 884.0 | 734.8 | |
| 0.44 | 2.11 | 0.23 | 1.09 | 7.59 | 206.61 | 15.82 | 274.08 | 0.2721 | 930.4 | 780.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 8.08 | 206.32 | 15.53 | 275.96 | 0.2676 | 825.0 | 621.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 8.06 | 206.00 | 15.21 | 275.97 | 0.2624 | 795.0 | 661.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 9.21 | 203.73 | 12.94 | 281.77 | 0.2268 | 721.0 | 611.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
