SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.13 | 407.48 | 49.22 | 261.91 | -1.42 | 151.89 | -38.91 | 100.49 | 0.6405 | 223.1 | 189.7 | |
|
previous
or next observation for the same group /

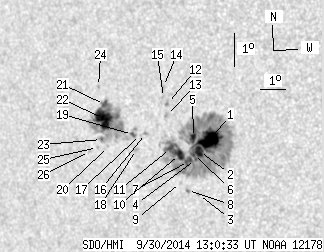

back to the solar disc SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.94 | 286.93 | 13.83 | 181.86 | -1.34 | 153.39 | -37.41 | 100.85 | 0.6206 | 1062.0 | 379.3 | |
| 6.52 | -1.00 | 4.14 | -1.00 | -1.73 | 153.00 | -37.80 | 101.33 | 0.6270 | 853.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -3.05 | 152.92 | -37.88 | 103.33 | 0.6324 | -421.0 | -428.8 | |
| 0.79 | -1.00 | 0.50 | -1.00 | -1.99 | 152.84 | -37.95 | 101.67 | 0.6299 | 589.8 | 999999 | |
| 4.93 | -1.00 | 3.14 | -1.00 | -1.33 | 152.78 | -38.01 | 100.61 | 0.6287 | 652.4 | 999999 | |
| 0.53 | -1.00 | 0.34 | -1.00 | -1.84 | 152.77 | -38.03 | 101.41 | 0.6304 | 735.2 | 999999 | |
| 4.58 | -1.00 | 2.93 | -1.00 | -2.07 | 152.57 | -38.23 | 101.69 | 0.6337 | 712.2 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -2.96 | 152.50 | -38.30 | 103.03 | 0.6375 | -588.0 | -541.4 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -2.73 | 152.24 | -38.56 | 102.58 | 0.6402 | 280.0 | 104.4 | |
| 6.43 | -1.00 | 4.13 | -1.00 | -1.88 | 152.23 | -38.57 | 101.28 | 0.6376 | 752.2 | 999999 | |
| 3.70 | -1.00 | 2.38 | -1.00 | -1.72 | 151.89 | -38.91 | 100.92 | 0.6417 | 551.8 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.42 | -0.37 | 151.79 | -39.00 | 98.81 | 0.6391 | 581.0 | 589.7 | |
| 0.00 | 1.76 | 0.00 | 1.13 | -0.73 | 151.75 | -39.04 | 99.36 | 0.6407 | 509.0 | 447.4 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 0.14 | 151.64 | -39.16 | 97.99 | 0.6399 | 585.0 | 453.5 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -0.20 | 151.64 | -39.16 | 98.50 | 0.6407 | 574.0 | 501.6 | |
| 0.00 | 1.85 | 0.00 | 1.21 | -1.34 | 150.92 | -39.87 | 100.02 | 0.6532 | 608.0 | 417.7 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -1.39 | 150.72 | -40.07 | 100.03 | 0.6558 | 383.0 | 335.4 | |
| 0.00 | 1.50 | 0.00 | 0.98 | -1.85 | 150.55 | -40.24 | 100.67 | 0.6593 | -199.0 | -226.9 | |
| 1.15 | 102.40 | 0.75 | 68.22 | -1.41 | 150.41 | -40.39 | 99.96 | 0.6600 | 507.6 | -348.6 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -1.85 | 149.44 | -41.36 | 100.30 | 0.6735 | -232.0 | -223.5 | |
| 3.00 | -19.00 | 2.00 | -19.00 | -0.59 | 149.30 | -41.49 | 98.42 | 0.6720 | -682.1 | 999999 | |
| 21.77 | -19.00 | 14.55 | -19.00 | -1.01 | 149.26 | -41.54 | 99.03 | 0.6736 | -869.4 | 999999 | |
| 0.79 | -19.00 | 0.53 | -19.00 | -1.66 | 149.16 | -41.63 | 99.94 | 0.6765 | -590.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -0.06 | 149.07 | -41.73 | 97.58 | 0.6738 | -602.0 | -520.7 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -1.91 | 148.99 | -41.80 | 100.26 | 0.6793 | -608.0 | -460.9 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -2.06 | 148.66 | -42.13 | 100.37 | 0.6838 | -650.0 | -500.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
