SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 16.03 | 0.36 | 13.12 | -4.55 | 139.24 | -51.55 | 100.97 | 0.7975 | -480.8 | -478.6 | |
|
previous
or next observation for the same group /

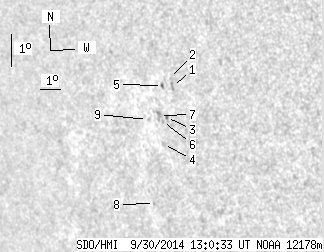

back to the solar disc SDO HMI 2014-09-30 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 2.48 | -3.58 | 139.79 | -51.01 | 99.93 | 0.7897 | -591.0 | -551.8 | |
| 0.00 | 0.62 | 0.00 | 0.50 | -3.35 | 139.66 | -51.13 | 99.61 | 0.7906 | -452.0 | -462.1 | |
| 0.00 | 1.32 | 0.00 | 1.08 | -4.56 | 139.41 | -51.39 | 101.04 | 0.7958 | -664.0 | -579.5 | |
| 0.00 | 2.47 | 0.00 | 2.03 | -5.41 | 139.17 | -51.63 | 102.02 | 0.8002 | -443.0 | -370.0 | |
| 0.44 | 1.67 | 0.36 | 1.36 | -3.60 | 139.30 | -51.49 | 99.82 | 0.7948 | -389.6 | -363.9 | |
| 0.00 | 1.59 | 0.00 | 1.30 | -4.71 | 139.20 | -51.60 | 101.16 | 0.7983 | -613.0 | -496.3 | |
| 0.00 | 3.61 | 0.00 | 2.96 | -4.53 | 139.07 | -51.72 | 100.92 | 0.7992 | -597.0 | -558.4 | |
| 0.00 | 0.97 | 0.00 | 0.82 | -7.29 | 138.45 | -52.35 | 104.09 | 0.8119 | -294.0 | -347.5 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -4.71 | 138.46 | -52.33 | 100.98 | 0.8058 | -316.0 | -310.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
