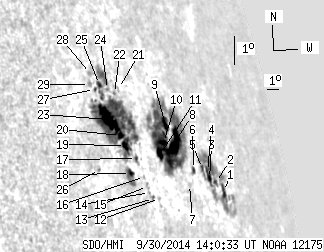

SDO HMI 2014-09-30 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.80 | 457.64 | 121.63 | 652.04 | 15.27 | 260.74 | 70.50 | 283.87 | 0.9369 | -27.4 | -103.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.88 | 73.66 | 7.24 | 132.85 | 13.21 | 265.94 | 75.70 | 281.90 | 0.9653 | -158.2 | -73.8 | |
| 1.15 | -1.00 | 2.05 | -1.00 | 13.57 | 265.27 | 75.03 | 282.22 | 0.9621 | -203.5 | 999999 | |
| 2.73 | -1.00 | 4.73 | -1.00 | 13.75 | 264.73 | 74.48 | 282.39 | 0.9595 | -401.6 | 999999 | |
| 0.70 | -1.00 | 1.22 | -1.00 | 13.97 | 264.69 | 74.45 | 282.62 | 0.9593 | -245.6 | 999999 | |
| 1.59 | -1.00 | 2.67 | -1.00 | 14.12 | 264.24 | 74.00 | 282.74 | 0.9571 | -562.7 | 999999 | |
| 1.41 | 3.17 | 2.26 | 5.07 | 14.19 | 263.30 | 73.06 | 282.78 | 0.9523 | -358.3 | -289.0 | |
| 0.00 | 1.59 | 0.00 | 2.45 | 13.81 | 262.57 | 72.32 | 282.34 | 0.9485 | -553.0 | -474.9 | |
| 20.62 | 174.81 | 30.93 | 257.69 | 15.14 | 262.01 | 71.77 | 283.73 | 0.9452 | -540.4 | -291.9 | |
| 6.08 | -8.00 | 8.98 | -8.00 | 15.76 | 261.74 | 71.49 | 284.38 | 0.9436 | -484.5 | 999999 | |
| 4.32 | -8.00 | 6.20 | -8.00 | 15.27 | 261.13 | 70.89 | 283.83 | 0.9403 | -882.0 | 999999 | |
| 5.11 | -8.00 | 7.16 | -8.00 | 14.98 | 260.62 | 70.38 | 283.51 | 0.9373 | -191.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.90 | 13.70 | 259.62 | 69.38 | 282.10 | 0.9316 | 281.0 | 178.2 | |
| 0.00 | 1.67 | 0.00 | 2.21 | 13.75 | 259.13 | 68.88 | 282.15 | 0.9285 | 436.0 | 376.0 | |
| 0.00 | 0.88 | 0.00 | 1.15 | 13.96 | 258.92 | 68.67 | 282.36 | 0.9271 | 529.0 | 483.3 | |
| 0.00 | 2.29 | 0.00 | 2.99 | 14.15 | 258.87 | 68.62 | 282.57 | 0.9267 | 514.0 | 441.0 | |
| 0.00 | 0.88 | 0.00 | 1.15 | 14.47 | 258.82 | 68.57 | 282.91 | 0.9264 | 455.0 | 399.2 | |
| 0.97 | 3.08 | 1.25 | 3.97 | 15.05 | 258.53 | 68.29 | 283.54 | 0.9245 | 335.4 | 320.5 | |
| 2.73 | 12.34 | 3.41 | 15.38 | 14.67 | 257.78 | 67.53 | 283.11 | 0.9196 | 681.2 | 432.1 | |
| 4.58 | 149.08 | 5.75 | 185.09 | 15.52 | 257.93 | 67.68 | 284.04 | 0.9205 | 575.5 | 42.4 | |
| 3.26 | -19.00 | 4.06 | -19.00 | 15.85 | 257.74 | 67.50 | 284.39 | 0.9192 | 481.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.81 | 17.23 | 258.60 | 68.35 | 285.89 | 0.9247 | -435.0 | -426.8 | |
| 0.00 | 1.15 | 0.00 | 1.45 | 17.12 | 258.17 | 67.92 | 285.77 | 0.9220 | -449.0 | -376.3 | |
| 25.29 | -19.00 | 30.83 | -19.00 | 16.41 | 257.15 | 66.91 | 285.00 | 0.9153 | 633.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.75 | 17.29 | 257.71 | 67.47 | 285.96 | 0.9190 | -373.0 | -324.6 | |
| 1.85 | 22.47 | 2.26 | 27.59 | 17.50 | 257.21 | 66.97 | 286.19 | 0.9157 | 318.0 | -43.7 | |
| 0.00 | 1.15 | 0.00 | 1.32 | 15.03 | 255.56 | 65.32 | 283.47 | 0.9042 | 504.0 | 403.3 | |
| 0.53 | -25.00 | 0.63 | -25.00 | 17.40 | 256.73 | 66.49 | 286.08 | 0.9124 | 546.7 | 999999 | |
| 0.00 | 3.08 | 0.00 | 3.70 | 17.89 | 256.78 | 66.54 | 286.63 | 0.9128 | 258.0 | 257.0 | |
| 0.00 | 2.11 | 0.00 | 2.52 | 17.58 | 256.47 | 66.23 | 286.29 | 0.9106 | 546.0 | 527.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
