SDO HMI 2014-09-30 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 34.97 | 4.69 | 18.25 | 7.42 | 208.69 | 18.45 | 273.32 | 0.3158 | -58.6 | 48.7 | |
|
previous
or next observation for the same group /

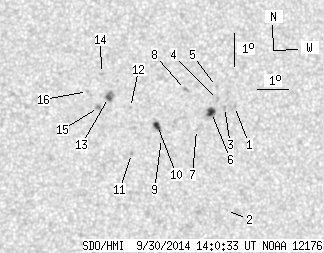

back to the solar disc SDO HMI 2014-09-30 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.47 | 7.41 | 210.97 | 20.72 | 273.13 | 0.3529 | -623.0 | -626.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 4.30 | 210.58 | 20.34 | 264.18 | 0.3499 | -29.0 | -9.7 | |
| 0.00 | 1.67 | 0.00 | 0.88 | 7.39 | 210.64 | 20.40 | 273.09 | 0.3477 | -828.0 | -657.4 | |
| 0.00 | 1.85 | 0.00 | 0.98 | 7.64 | 210.43 | 20.18 | 273.82 | 0.3442 | -746.0 | -631.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 8.03 | 210.42 | 20.17 | 274.96 | 0.3442 | -642.0 | -523.1 | |
| 4.05 | 6.78 | 2.13 | 3.57 | 7.26 | 210.22 | 19.97 | 272.71 | 0.3407 | -1088.8 | -836.8 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 6.77 | 209.71 | 19.47 | 271.24 | 0.3325 | -592.0 | -481.2 | |
| 0.00 | 2.11 | 0.00 | 1.11 | 7.98 | 209.42 | 19.17 | 274.94 | 0.3279 | -982.0 | -771.2 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 6.54 | 208.58 | 18.34 | 270.45 | 0.3140 | -770.0 | -566.6 | |
| 3.17 | 4.93 | 1.65 | 2.57 | 6.93 | 208.47 | 18.23 | 271.71 | 0.3120 | 767.7 | 552.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 6.12 | 207.62 | 17.37 | 268.96 | 0.2982 | 904.0 | 741.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 7.51 | 207.64 | 17.39 | 273.61 | 0.2983 | 719.0 | 549.5 | |
| 1.76 | 6.17 | 0.91 | 3.19 | 7.83 | 206.95 | 16.71 | 274.81 | 0.2871 | 1161.6 | 858.1 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 8.56 | 206.77 | 16.52 | 277.40 | 0.2848 | 858.0 | 645.9 | |
| 0.00 | 2.56 | 0.00 | 1.32 | 7.54 | 206.63 | 16.38 | 273.83 | 0.2815 | 982.0 | 835.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 8.03 | 206.30 | 16.06 | 275.66 | 0.2764 | 708.0 | 586.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
