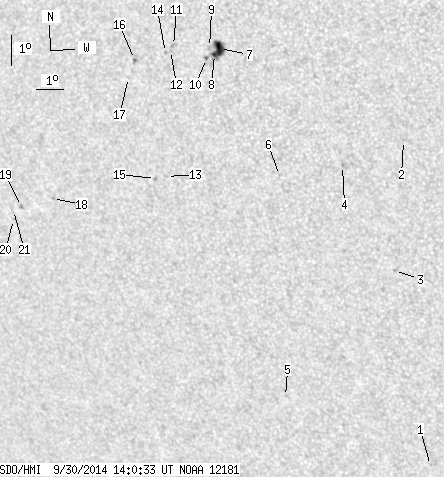

SDO HMI 2014-09-30 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.51 | 39.38 | 7.46 | 24.03 | -11.85 | 159.81 | -30.43 | 121.42 | 0.5836 | -126.5 | -64.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.39 | -23.38 | 166.35 | -23.90 | 142.95 | 0.6195 | 693.0 | 556.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -12.62 | 166.97 | -23.28 | 129.87 | 0.5045 | 737.0 | 543.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -16.84 | 166.16 | -24.08 | 134.98 | 0.5542 | 657.0 | 579.6 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -13.52 | 164.80 | -25.44 | 128.75 | 0.5376 | 691.0 | 519.9 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -21.29 | 161.52 | -28.73 | 135.54 | 0.6417 | 533.0 | 410.9 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -13.96 | 162.57 | -27.67 | 127.06 | 0.5670 | 594.0 | 445.6 | |
| 9.69 | 16.83 | 5.77 | 10.03 | -10.04 | 160.93 | -29.31 | 119.60 | 0.5566 | -925.7 | -603.1 | |
| 1.85 | -7.00 | 1.10 | -7.00 | -10.24 | 160.74 | -29.51 | 119.74 | 0.5604 | -853.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -10.03 | 160.58 | -29.66 | 119.28 | 0.5609 | -14.0 | -58.1 | |
| 0.62 | 2.82 | 0.37 | 1.69 | -10.38 | 160.44 | -29.80 | 119.72 | 0.5651 | -526.0 | -433.4 | |
| 0.00 | 2.56 | 0.00 | 1.55 | -10.04 | 159.31 | -30.94 | 118.27 | 0.5770 | 549.0 | 408.0 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -10.20 | 159.18 | -31.06 | 118.42 | 0.5796 | 596.0 | 608.6 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -14.24 | 158.50 | -31.75 | 123.76 | 0.6158 | -707.0 | -591.1 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -10.28 | 159.00 | -31.25 | 118.39 | 0.5824 | 738.0 | 637.8 | |
| 0.00 | 1.32 | 0.00 | 0.83 | -14.33 | 158.08 | -32.17 | 123.54 | 0.6212 | -757.0 | -609.5 | |
| 0.35 | 1.85 | 0.22 | 1.14 | -10.57 | 157.85 | -32.40 | 117.96 | 0.5985 | 686.2 | 609.1 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -11.15 | 157.56 | -32.69 | 118.61 | 0.6058 | 598.0 | 487.0 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -15.24 | 154.04 | -36.21 | 121.73 | 0.6724 | -601.0 | -528.1 | |
| 0.00 | 1.76 | 0.00 | 1.20 | -15.60 | 152.75 | -37.49 | 121.32 | 0.6885 | -659.0 | -610.3 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -16.05 | 152.34 | -37.91 | 121.62 | 0.6957 | -613.0 | -526.6 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -15.75 | 152.40 | -37.84 | 121.28 | 0.6932 | -218.0 | -301.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
