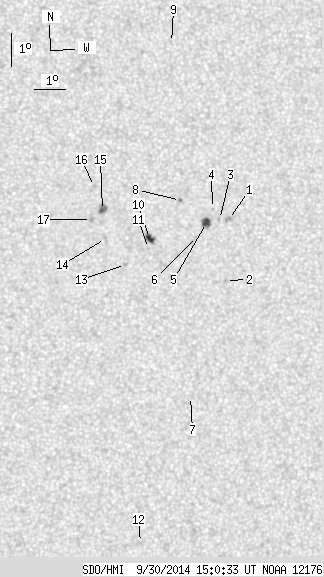

SDO HMI 2014-09-30 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.48 | 38.93 | 5.49 | 20.44 | 6.62 | 208.85 | 19.16 | 270.87 | 0.3301 | -97.2 | -11.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.00 | 0.00 | 1.59 | 7.35 | 211.00 | 21.30 | 272.96 | 0.3624 | -647.0 | -646.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 5.53 | 210.82 | 21.12 | 267.87 | 0.3605 | -741.0 | -569.3 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 7.36 | 210.70 | 21.01 | 273.00 | 0.3576 | -856.0 | -647.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 7.70 | 210.50 | 20.80 | 273.97 | 0.3543 | -770.0 | -645.9 | |
| 4.40 | 7.22 | 2.33 | 3.82 | 7.29 | 210.28 | 20.59 | 272.80 | 0.3507 | -1121.7 | -856.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 6.88 | 209.94 | 20.24 | 271.63 | 0.3452 | -796.0 | -593.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 2.09 | 209.60 | 19.91 | 257.72 | 0.3498 | 7.0 | 3.8 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 7.99 | 209.48 | 19.78 | 274.88 | 0.3379 | -992.0 | -821.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 12.74 | 209.50 | 19.81 | 288.62 | 0.3503 | 7.0 | 8.4 | |
| 4.14 | 6.34 | 2.16 | 3.32 | 6.89 | 208.43 | 18.74 | 271.57 | 0.3204 | 794.8 | 593.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 6.59 | 208.39 | 18.69 | 270.63 | 0.3198 | -743.0 | -551.8 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -2.26 | 208.01 | 18.32 | 244.39 | 0.3497 | -4.0 | -12.6 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 6.13 | 207.64 | 17.94 | 269.09 | 0.3077 | 909.0 | 708.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 6.94 | 207.03 | 17.34 | 271.70 | 0.2973 | 725.0 | 533.5 | |
| 1.94 | 5.73 | 1.00 | 2.97 | 7.78 | 206.97 | 17.28 | 274.55 | 0.2965 | 1101.0 | 866.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 8.51 | 206.75 | 17.06 | 277.07 | 0.2936 | 851.0 | 618.2 | |
| 0.00 | 2.29 | 0.00 | 1.19 | 7.52 | 206.61 | 16.92 | 273.71 | 0.2904 | 952.0 | 779.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
