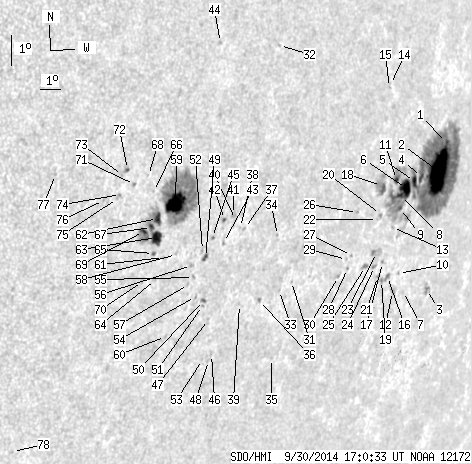

SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.95 | 674.87 | 124.28 | 628.20 | -11.02 | 243.63 | 55.04 | 252.17 | 0.8427 | 57.3 | 78.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 369.30 | 1.39 | 382.62 | -9.86 | 248.46 | 59.86 | 255.01 | 0.8840 | 546.8 | 235.8 | |
| 50.29 | -1.00 | 52.92 | -1.00 | -10.74 | 248.24 | 59.65 | 253.99 | 0.8840 | 724.4 | 999999 | |
| 1.32 | 5.72 | 1.47 | 6.37 | -14.53 | 248.98 | 60.39 | 250.06 | 0.8971 | 635.3 | 497.0 | |
| 2.99 | -1.00 | 3.06 | -1.00 | -10.82 | 247.25 | 58.66 | 253.63 | 0.8763 | 749.7 | 999999 | |
| 5.64 | -1.00 | 5.69 | -1.00 | -10.91 | 246.86 | 58.27 | 253.43 | 0.8733 | 411.9 | 999999 | |
| 12.77 | -1.00 | 12.74 | -1.00 | -11.08 | 246.45 | 57.86 | 253.12 | 0.8704 | 698.2 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.56 | -14.44 | 247.51 | 58.92 | 249.73 | 0.8861 | 332.0 | 346.7 | |
| 2.03 | -1.00 | 2.01 | -1.00 | -11.27 | 246.16 | 57.57 | 252.82 | 0.8684 | 854.7 | 999999 | |
| 0.97 | -1.00 | 0.97 | -1.00 | -11.69 | 246.30 | 57.71 | 252.39 | 0.8705 | 731.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.00 | -13.81 | 246.95 | 58.36 | 250.25 | 0.8804 | -132.0 | -63.9 | |
| 3.17 | -1.00 | 3.10 | -1.00 | -10.73 | 245.77 | 57.18 | 253.32 | 0.8640 | 757.8 | 999999 | |
| 0.00 | 2.91 | 0.00 | 3.02 | -14.37 | 246.82 | 58.23 | 249.60 | 0.8807 | 409.0 | 439.0 | |
| 0.00 | 1.06 | 0.00 | 1.05 | -12.26 | 246.03 | 57.44 | 251.68 | 0.8695 | 428.0 | 399.9 | |
| 0.00 | 0.62 | 0.00 | 0.57 | -7.68 | 244.68 | 56.09 | 256.49 | 0.8480 | 573.0 | 477.0 | |
| 0.00 | 0.88 | 0.00 | 0.82 | -7.77 | 244.64 | 56.05 | 256.38 | 0.8478 | 441.0 | 399.5 | |
| 1.06 | 5.81 | 1.07 | 5.89 | -13.84 | 246.32 | 57.72 | 250.03 | 0.8755 | -159.4 | -182.3 | |
| 0.00 | 1.23 | 0.00 | 1.23 | -13.35 | 245.84 | 57.25 | 250.42 | 0.8705 | -223.0 | -122.6 | |
| 0.00 | 15.77 | 0.00 | 15.06 | -10.84 | 244.96 | 56.37 | 252.96 | 0.8573 | 814.0 | 610.0 | |
| 0.35 | -16.00 | 0.36 | -16.00 | -13.93 | 246.00 | 57.41 | 249.83 | 0.8732 | -378.8 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.37 | -11.77 | 245.18 | 56.59 | 251.98 | 0.8614 | 554.0 | 593.1 | |
| 0.00 | 1.14 | 0.00 | 1.14 | -13.78 | 245.71 | 57.12 | 249.91 | 0.8705 | -405.0 | -342.5 | |
| 0.00 | 0.79 | 0.00 | 0.77 | -11.91 | 245.06 | 56.47 | 251.78 | 0.8607 | 771.0 | 703.3 | |
| 0.00 | 6.69 | 0.00 | 6.58 | -12.98 | 245.36 | 56.77 | 250.68 | 0.8658 | 620.0 | 374.6 | |
| 0.00 | 2.03 | 0.00 | 2.00 | -13.43 | 245.41 | 56.82 | 250.20 | 0.8673 | -351.0 | -268.1 | |
| 0.88 | 3.08 | 0.86 | 3.00 | -13.37 | 244.88 | 56.29 | 250.09 | 0.8628 | -507.4 | -436.8 | |
| 0.00 | 1.06 | 0.00 | 0.99 | -11.57 | 243.85 | 55.26 | 251.80 | 0.8496 | 534.0 | 458.9 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -12.93 | 243.96 | 55.37 | 250.29 | 0.8539 | -405.0 | -363.6 | |
| 0.00 | 0.97 | 0.00 | 0.92 | -13.34 | 243.88 | 55.28 | 249.81 | 0.8543 | -427.0 | -382.5 | |
| 0.00 | 0.97 | 0.00 | 0.91 | -13.04 | 243.72 | 55.13 | 250.10 | 0.8521 | -420.0 | -325.2 | |
| 0.00 | 1.23 | 0.00 | 1.16 | -13.55 | 243.46 | 54.87 | 249.44 | 0.8513 | -487.0 | -426.4 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -13.46 | 240.97 | 52.38 | 248.67 | 0.8291 | 279.0 | 329.7 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -5.91 | 238.77 | 50.18 | 256.96 | 0.7864 | -542.0 | -404.1 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -13.69 | 240.43 | 51.84 | 248.20 | 0.8250 | 505.0 | 423.1 | |
| 0.00 | 1.14 | 0.00 | 0.97 | -11.90 | 239.82 | 51.23 | 250.07 | 0.8137 | 661.0 | 562.5 | |
| 0.00 | 0.97 | 0.00 | 0.87 | -15.90 | 240.78 | 52.19 | 245.81 | 0.8350 | 471.0 | 310.8 | |
| 0.00 | 1.85 | 0.00 | 1.58 | -13.92 | 239.51 | 50.92 | 247.59 | 0.8172 | 620.0 | 508.3 | |
| 0.00 | 1.14 | 0.00 | 0.93 | -11.52 | 238.13 | 49.54 | 249.89 | 0.7961 | -489.0 | -407.3 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -11.47 | 237.93 | 49.34 | 249.87 | 0.7940 | -476.0 | -284.1 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -13.96 | 238.54 | 49.95 | 247.16 | 0.8083 | 451.0 | 379.5 | |
| 0.00 | 1.50 | 0.00 | 1.20 | -11.19 | 237.63 | 49.04 | 250.10 | 0.7901 | -447.0 | -362.6 | |
| 0.00 | 2.82 | 0.00 | 2.26 | -11.02 | 237.49 | 48.90 | 250.25 | 0.7882 | -551.0 | -484.9 | |
| 0.62 | 1.76 | 0.49 | 1.40 | -11.14 | 237.10 | 48.51 | 249.95 | 0.7846 | -630.0 | -535.1 | |
| 0.00 | 1.23 | 0.00 | 0.99 | -11.87 | 237.23 | 48.63 | 249.11 | 0.7884 | -401.0 | -351.4 | |
| 0.00 | 1.85 | 0.00 | 1.39 | -5.56 | 236.01 | 47.42 | 256.55 | 0.7559 | -630.0 | -438.3 | |
| 0.00 | 1.23 | 0.00 | 0.98 | -11.67 | 236.67 | 48.08 | 249.14 | 0.7820 | -579.0 | -604.6 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -15.47 | 237.66 | 49.07 | 245.03 | 0.8054 | -347.0 | -330.0 | |
| 0.00 | 1.23 | 0.00 | 1.01 | -14.31 | 237.17 | 48.57 | 246.19 | 0.7964 | -443.0 | -368.4 | |
| 0.00 | 1.94 | 0.00 | 1.61 | -15.66 | 237.58 | 48.99 | 244.78 | 0.8053 | -409.0 | -323.0 | |
| 1.67 | 3.70 | 1.32 | 2.93 | -12.28 | 236.49 | 47.90 | 248.33 | 0.7824 | -451.9 | -300.9 | |
| 0.70 | 2.11 | 0.57 | 1.70 | -13.66 | 236.75 | 48.16 | 246.77 | 0.7900 | -541.0 | -420.6 | |
| 0.00 | 1.06 | 0.00 | 0.85 | -13.82 | 236.75 | 48.16 | 246.58 | 0.7906 | -392.0 | -308.4 | |
| 0.00 | 1.23 | 0.00 | 0.97 | -12.04 | 236.29 | 47.70 | 248.54 | 0.7796 | -630.0 | -508.1 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -15.60 | 237.27 | 48.68 | 244.72 | 0.8023 | -572.0 | -586.2 | |
| 0.00 | 1.41 | 0.00 | 1.12 | -13.50 | 236.34 | 47.75 | 246.79 | 0.7853 | -383.0 | -522.9 | |
| 0.00 | 1.32 | 0.00 | 1.04 | -12.87 | 236.08 | 47.49 | 247.44 | 0.7805 | -616.0 | -531.7 | |
| 0.00 | 1.94 | 0.00 | 1.52 | -12.48 | 235.90 | 47.30 | 247.84 | 0.7771 | -644.0 | -522.5 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -13.08 | 235.91 | 47.32 | 247.11 | 0.7795 | -569.0 | -457.4 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -12.06 | 235.12 | 46.53 | 248.02 | 0.7676 | -668.0 | -536.0 | |
| 27.30 | 144.36 | 20.64 | 109.30 | -10.43 | 234.73 | 46.14 | 249.89 | 0.7575 | -928.3 | -206.5 | |
| 0.00 | 1.76 | 0.00 | 1.39 | -14.68 | 235.28 | 46.69 | 244.92 | 0.7795 | -154.0 | -191.6 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -12.11 | 234.55 | 45.96 | 247.72 | 0.7619 | -535.0 | -495.1 | |
| 5.28 | 51.08 | 3.95 | 38.14 | -10.83 | 234.02 | 45.43 | 249.07 | 0.7514 | -886.8 | -605.1 | |
| 9.60 | -62.00 | 7.22 | -62.00 | -11.44 | 234.10 | 45.51 | 248.35 | 0.7546 | -707.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -12.78 | 234.35 | 45.76 | 246.79 | 0.7625 | -310.0 | -333.9 | |
| 0.62 | 1.85 | 0.46 | 1.39 | -11.94 | 234.07 | 45.48 | 247.71 | 0.7562 | -604.7 | -510.3 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -9.96 | 233.69 | 45.09 | 250.04 | 0.7445 | -644.0 | -592.1 | |
| 2.29 | -62.00 | 1.71 | -62.00 | -11.10 | 233.81 | 45.22 | 248.65 | 0.7502 | -936.3 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -9.44 | 233.38 | 44.79 | 250.58 | 0.7392 | -653.0 | -524.6 | |
| 2.55 | -62.00 | 1.90 | -62.00 | -11.19 | 233.48 | 44.89 | 248.38 | 0.7470 | -982.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -12.80 | 233.78 | 45.19 | 246.51 | 0.7566 | -563.0 | -463.4 | |
| 0.00 | 1.76 | 0.00 | 1.28 | -9.67 | 232.82 | 44.23 | 250.04 | 0.7339 | -744.0 | -588.7 | |
| 0.53 | 2.47 | 0.38 | 1.77 | -9.17 | 232.44 | 43.85 | 250.53 | 0.7277 | -660.8 | -560.7 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -9.34 | 232.26 | 43.67 | 250.22 | 0.7263 | -633.0 | -514.0 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -9.93 | 232.27 | 43.68 | 249.46 | 0.7288 | -784.0 | -675.8 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -10.05 | 232.16 | 43.57 | 249.26 | 0.7280 | -633.0 | -563.7 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -10.06 | 231.57 | 42.98 | 248.97 | 0.7215 | -739.0 | -621.3 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -9.08 | 229.45 | 40.86 | 249.28 | 0.6931 | -658.0 | -593.9 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -17.90 | 229.52 | 40.93 | 238.00 | 0.7375 | -565.0 | -478.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
