SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.72 | 160.84 | 43.06 | 196.81 | -16.64 | 250.98 | 62.39 | 248.31 | 0.9118 | -215.1 | -109.5 | |
|
previous
or next observation for the same group /

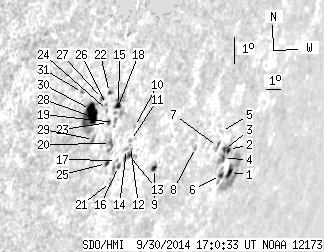

back to the solar disc SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.43 | 40.87 | 5.30 | 63.10 | -18.06 | 256.32 | 67.73 | 248.30 | 0.9483 | -14.3 | -125.0 | |
| 2.03 | 15.41 | 2.99 | 22.56 | -17.24 | 255.61 | 67.01 | 248.97 | 0.9435 | 297.9 | 367.5 | |
| 2.03 | -2.00 | 2.95 | -2.00 | -17.20 | 255.25 | 66.66 | 248.92 | 0.9415 | 585.0 | 999999 | |
| 1.76 | -2.00 | 2.58 | -2.00 | -17.50 | 255.40 | 66.81 | 248.64 | 0.9427 | 610.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 2.10 | -16.54 | 254.56 | 65.97 | 249.43 | 0.9367 | 364.0 | 316.4 | |
| 1.94 | -1.00 | 2.89 | -1.00 | -18.07 | 255.59 | 66.99 | 248.10 | 0.9445 | 485.6 | 999999 | |
| 0.00 | 3.61 | 0.00 | 5.08 | -17.03 | 254.58 | 65.99 | 248.93 | 0.9375 | 479.0 | 395.9 | |
| 0.00 | 1.41 | 0.00 | 1.84 | -16.86 | 252.81 | 64.22 | 248.65 | 0.9269 | 513.0 | 433.4 | |
| 2.20 | 3.70 | 2.62 | 4.40 | -17.25 | 250.19 | 61.60 | 247.51 | 0.9110 | -209.6 | -7.7 | |
| 0.00 | 1.41 | 0.00 | 1.54 | -15.68 | 248.08 | 59.48 | 248.56 | 0.8930 | -112.0 | -66.1 | |
| 0.00 | 1.76 | 0.00 | 1.93 | -16.12 | 248.04 | 59.45 | 248.07 | 0.8937 | -457.0 | -435.9 | |
| 0.00 | 1.59 | 0.00 | 1.75 | -16.33 | 248.14 | 59.55 | 247.88 | 0.8949 | -402.0 | -384.7 | |
| 1.50 | 6.61 | 1.66 | 7.33 | -16.62 | 248.23 | 59.64 | 247.59 | 0.8962 | -428.6 | -309.4 | |
| 0.00 | 1.85 | 0.00 | 2.02 | -16.40 | 247.93 | 59.34 | 247.74 | 0.8936 | -617.0 | -530.5 | |
| 2.11 | 12.68 | 2.20 | 13.23 | -14.87 | 246.74 | 58.15 | 249.03 | 0.8812 | -274.0 | 270.5 | |
| 0.88 | 5.64 | 0.96 | 6.13 | -16.92 | 247.70 | 59.11 | 247.11 | 0.8931 | -353.7 | -378.9 | |
| 0.00 | 1.41 | 0.00 | 1.53 | -16.71 | 247.47 | 58.88 | 247.27 | 0.8909 | -486.0 | -462.6 | |
| 0.00 | 1.41 | 0.00 | 1.46 | -15.08 | 246.65 | 58.06 | 248.77 | 0.8810 | -417.0 | -332.3 | |
| 0.00 | 3.08 | 0.00 | 3.22 | -15.41 | 246.74 | 58.15 | 248.44 | 0.8824 | -325.0 | -284.6 | |
| 0.00 | 5.90 | 0.00 | 6.22 | -16.09 | 246.81 | 58.22 | 247.72 | 0.8846 | 350.0 | -96.5 | |
| 0.00 | 2.38 | 0.00 | 2.59 | -17.42 | 247.47 | 58.88 | 246.50 | 0.8925 | -421.0 | -384.1 | |
| 0.79 | 2.11 | 0.80 | 2.15 | -14.38 | 246.01 | 57.42 | 249.34 | 0.8743 | -188.2 | -78.8 | |
| 0.70 | 2.03 | 0.73 | 2.09 | -15.37 | 246.37 | 57.77 | 248.36 | 0.8795 | -464.4 | -326.6 | |
| 0.00 | 1.23 | 0.00 | 1.26 | -14.96 | 246.13 | 57.54 | 248.73 | 0.8767 | -317.0 | -279.7 | |
| 1.23 | 2.55 | 1.31 | 2.72 | -16.74 | 246.88 | 58.29 | 247.04 | 0.8867 | -567.4 | -432.3 | |
| 0.00 | 0.88 | 0.00 | 0.89 | -14.76 | 245.99 | 57.40 | 248.91 | 0.8751 | -191.0 | -129.8 | |
| 0.62 | 2.03 | 0.62 | 2.03 | -14.53 | 245.66 | 57.07 | 249.06 | 0.8720 | -434.6 | -356.8 | |
| 7.22 | 33.56 | 7.24 | 33.40 | -15.11 | 245.38 | 56.79 | 248.33 | 0.8712 | -602.1 | -414.6 | |
| 0.00 | 2.91 | 0.00 | 2.96 | -15.85 | 245.70 | 57.11 | 247.63 | 0.8755 | -533.0 | -431.0 | |
| 8.28 | -28.00 | 8.21 | -28.00 | -14.82 | 245.10 | 56.51 | 248.55 | 0.8682 | -847.1 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.28 | -14.21 | 244.41 | 55.82 | 249.00 | 0.8610 | -633.0 | -485.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
