SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.83 | 398.37 | 114.33 | 616.92 | 15.19 | 260.94 | 72.35 | 283.84 | 0.9473 | 18.2 | -121.6 | |
|
previous
or next observation for the same group /

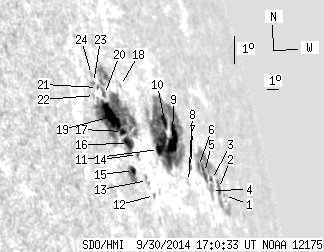

back to the solar disc SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 2.10 | 12.93 | 266.46 | 77.86 | 281.75 | 0.9743 | 211.0 | 218.0 | |
| 2.73 | 18.50 | 5.67 | 39.02 | 13.21 | 265.88 | 77.29 | 282.00 | 0.9720 | -102.3 | -54.5 | |
| 0.79 | 39.72 | 1.57 | 76.66 | 13.56 | 265.27 | 76.68 | 282.32 | 0.9694 | -175.0 | -7.6 | |
| 0.00 | 6.61 | 0.00 | 12.88 | 13.26 | 264.96 | 76.37 | 281.98 | 0.9681 | -533.0 | -424.0 | |
| 4.40 | -3.00 | 8.35 | -3.00 | 13.85 | 264.63 | 76.04 | 282.58 | 0.9666 | -375.5 | 999999 | |
| 1.59 | -3.00 | 2.92 | -3.00 | 14.10 | 264.10 | 75.51 | 282.80 | 0.9642 | -529.7 | 999999 | |
| 0.00 | 1.94 | 0.00 | 3.38 | 14.17 | 263.19 | 74.60 | 282.83 | 0.9600 | -315.0 | -331.4 | |
| 0.00 | 1.67 | 0.00 | 2.82 | 13.80 | 262.62 | 74.03 | 282.41 | 0.9573 | -576.0 | -501.9 | |
| 20.35 | 163.47 | 33.18 | 261.11 | 15.14 | 262.03 | 73.44 | 283.79 | 0.9540 | -477.7 | -301.1 | |
| 5.11 | -9.00 | 8.18 | -9.00 | 15.79 | 261.76 | 73.17 | 284.46 | 0.9525 | -499.2 | 999999 | |
| 3.79 | -9.00 | 5.71 | -9.00 | 15.03 | 260.45 | 71.86 | 283.62 | 0.9458 | -100.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.99 | 13.76 | 259.09 | 70.49 | 282.21 | 0.9383 | 371.0 | 353.4 | |
| 0.00 | 3.43 | 0.00 | 4.79 | 14.26 | 258.79 | 70.19 | 282.73 | 0.9364 | 337.0 | 294.7 | |
| 0.53 | 2.82 | 0.73 | 3.88 | 15.10 | 258.48 | 69.89 | 283.62 | 0.9344 | 295.2 | 278.5 | |
| 2.55 | 10.83 | 3.42 | 14.41 | 14.67 | 257.81 | 69.22 | 283.15 | 0.9304 | 555.7 | 433.7 | |
| 7.75 | 123.48 | 10.42 | 163.24 | 15.49 | 257.96 | 69.37 | 284.03 | 0.9312 | 461.5 | 36.1 | |
| 3.26 | -16.00 | 4.34 | -16.00 | 15.89 | 257.73 | 69.13 | 284.46 | 0.9297 | 403.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.95 | 17.23 | 258.63 | 70.04 | 285.91 | 0.9351 | -390.0 | -394.6 | |
| 21.84 | -16.00 | 28.36 | -16.00 | 16.42 | 257.16 | 68.57 | 285.02 | 0.9261 | 629.9 | 999999 | |
| 0.79 | 17.88 | 1.03 | 23.36 | 17.12 | 257.09 | 68.50 | 285.77 | 0.9257 | 408.2 | -27.0 | |
| 0.35 | -20.00 | 0.45 | -20.00 | 17.38 | 256.70 | 68.11 | 286.05 | 0.9231 | 504.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.21 | 17.17 | 256.29 | 67.69 | 285.83 | 0.9205 | 606.0 | 524.9 | |
| 0.00 | 1.67 | 0.00 | 2.11 | 17.56 | 256.50 | 67.91 | 286.25 | 0.9218 | 600.0 | 541.5 | |
| 0.00 | 1.59 | 0.00 | 2.01 | 17.80 | 256.53 | 67.94 | 286.52 | 0.9220 | 328.0 | 324.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
