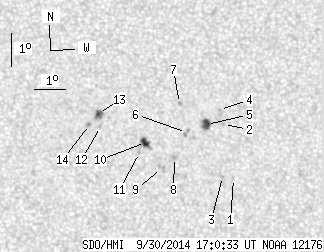

SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.75 | 38.38 | 5.68 | 20.29 | 7.02 | 208.97 | 20.38 | 272.07 | 0.3473 | -302.0 | -189.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | 5.64 | 211.21 | 22.62 | 268.47 | 0.3846 | -599.0 | -488.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 7.27 | 210.97 | 22.37 | 272.74 | 0.3797 | -820.0 | -625.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 5.72 | 210.86 | 22.27 | 268.61 | 0.3788 | -650.0 | -457.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 7.73 | 210.86 | 22.27 | 273.95 | 0.3780 | -789.0 | -632.5 | |
| 4.67 | 7.13 | 2.49 | 3.80 | 7.30 | 210.41 | 21.82 | 272.81 | 0.3707 | -1079.1 | -802.9 | |
| 0.00 | 2.91 | 0.00 | 1.54 | 7.09 | 209.75 | 21.16 | 272.22 | 0.3600 | -927.0 | -815.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 7.97 | 209.57 | 20.98 | 274.69 | 0.3573 | -911.0 | -781.3 | |
| 0.00 | 2.38 | 0.00 | 1.26 | 6.35 | 209.33 | 20.74 | 270.13 | 0.3534 | -935.0 | -673.9 | |
| 0.00 | 3.17 | 0.00 | 1.67 | 6.04 | 208.90 | 20.30 | 269.18 | 0.3466 | -581.0 | -726.7 | |
| 4.32 | 7.75 | 2.27 | 4.08 | 6.84 | 208.41 | 19.82 | 271.48 | 0.3383 | 848.0 | 392.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 6.55 | 208.21 | 19.62 | 270.59 | 0.3350 | -855.0 | -667.6 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 7.38 | 207.00 | 18.41 | 273.13 | 0.3150 | 795.0 | 589.6 | |
| 1.76 | 5.72 | 0.92 | 2.99 | 7.77 | 206.95 | 18.36 | 274.38 | 0.3144 | 1107.8 | 881.5 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 7.45 | 206.65 | 18.06 | 273.38 | 0.3093 | 977.0 | 804.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
