SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.86 | 399.32 | 51.35 | 211.44 | 11.90 | 168.52 | -20.07 | 73.69 | 0.3510 | -186.2 | -58.8 | |
|
previous
or next observation for the same group /

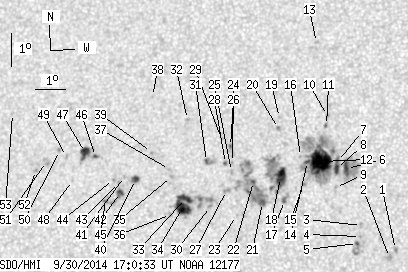

back to the solar disc SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.22 | 9.89 | 172.99 | -15.60 | 77.41 | 0.2727 | -1044.0 | -860.1 | |
| 0.00 | 3.43 | 0.00 | 1.77 | 9.64 | 172.81 | -15.78 | 78.41 | 0.2749 | -949.0 | -834.0 | |
| 0.00 | 1.85 | 0.00 | 0.96 | 10.58 | 171.87 | -16.72 | 75.76 | 0.2930 | -746.0 | -687.8 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 10.24 | 171.86 | -16.73 | 76.88 | 0.2922 | -944.0 | -815.7 | |
| 0.70 | 7.40 | 0.36 | 3.83 | 10.03 | 171.78 | -16.81 | 77.65 | 0.2929 | -1005.9 | -741.3 | |
| 5.28 | 28.36 | 2.75 | 14.76 | 12.28 | 171.29 | -17.30 | 70.72 | 0.3092 | -1194.3 | -612.2 | |
| 0.88 | 119.43 | 0.46 | 62.51 | 12.48 | 170.99 | -17.60 | 70.37 | 0.3149 | -941.7 | -405.2 | |
| 3.43 | -7.00 | 1.79 | -7.00 | 12.26 | 170.97 | -17.62 | 71.04 | 0.3142 | -1143.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 11.69 | 170.98 | -17.62 | 72.81 | 0.3116 | -924.0 | -689.9 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 13.85 | 170.56 | -18.03 | 66.70 | 0.3286 | -809.0 | -596.8 | |
| 0.00 | 1.67 | 0.00 | 0.88 | 13.55 | 170.55 | -18.04 | 67.59 | 0.3271 | -618.0 | -566.8 | |
| 34.44 | -7.00 | 18.02 | -7.00 | 12.46 | 170.44 | -18.15 | 70.90 | 0.3233 | -1206.8 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 16.05 | 170.01 | -18.58 | 61.30 | 0.3506 | -676.0 | -631.5 | |
| 1.23 | -7.00 | 0.65 | -7.00 | 12.44 | 170.02 | -18.57 | 71.29 | 0.3298 | -724.4 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 11.75 | 169.94 | -18.65 | 73.41 | 0.3282 | -926.0 | -751.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 12.59 | 169.78 | -18.81 | 71.07 | 0.3341 | -563.0 | -451.7 | |
| 0.88 | 4.93 | 0.46 | 2.59 | 11.24 | 169.36 | -19.23 | 75.27 | 0.3355 | 530.9 | 44.1 | |
| 12.24 | 47.47 | 6.45 | 25.03 | 11.93 | 169.18 | -19.41 | 73.40 | 0.3408 | -1120.5 | -323.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 13.74 | 169.00 | -19.59 | 68.48 | 0.3516 | 813.0 | 716.1 | |
| 0.00 | 2.03 | 0.00 | 1.07 | 13.40 | 169.00 | -19.59 | 69.40 | 0.3500 | 978.0 | 778.1 | |
| 2.55 | 59.19 | 1.35 | 31.33 | 11.16 | 168.65 | -19.94 | 75.93 | 0.3465 | 716.8 | 232.6 | |
| 0.88 | -21.00 | 0.47 | -21.00 | 11.78 | 168.31 | -20.28 | 74.38 | 0.3539 | -819.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 10.73 | 167.83 | -20.76 | 77.52 | 0.3582 | 705.0 | 539.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 12.32 | 167.58 | -21.01 | 73.34 | 0.3673 | 800.0 | 698.5 | |
| 0.00 | 1.94 | 0.00 | 1.03 | 12.05 | 167.57 | -21.02 | 74.07 | 0.3664 | 834.0 | 680.0 | |
| 0.00 | 2.03 | 0.00 | 1.08 | 12.80 | 167.47 | -21.12 | 72.14 | 0.3707 | 1015.0 | 803.9 | |
| 0.00 | 3.17 | 0.00 | 1.69 | 11.47 | 167.45 | -21.14 | 75.69 | 0.3664 | 869.0 | 785.8 | |
| 0.44 | 1.59 | 0.23 | 0.85 | 12.28 | 167.35 | -21.24 | 73.58 | 0.3706 | 970.2 | 820.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 13.03 | 167.15 | -21.44 | 71.75 | 0.3765 | 849.0 | 714.3 | |
| 0.00 | 1.76 | 0.00 | 0.94 | 10.97 | 166.96 | -21.63 | 77.26 | 0.3726 | 975.0 | 842.7 | |
| 1.06 | 6.34 | 0.57 | 3.39 | 12.32 | 166.72 | -21.87 | 73.85 | 0.3805 | 956.0 | 847.8 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 13.55 | 165.97 | -22.62 | 71.18 | 0.3967 | 885.0 | 730.2 | |
| 6.25 | 41.31 | 3.36 | 22.14 | 11.17 | 166.12 | -22.47 | 77.08 | 0.3864 | 1052.4 | 810.7 | |
| 13.30 | -33.00 | 7.14 | -33.00 | 10.90 | 166.04 | -22.55 | 77.81 | 0.3869 | 1065.0 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 11.81 | 165.60 | -22.99 | 75.68 | 0.3962 | 829.0 | 754.4 | |
| 0.00 | 1.85 | 0.00 | 1.00 | 10.67 | 165.66 | -22.93 | 78.53 | 0.3923 | 668.0 | 540.2 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 12.02 | 165.52 | -23.07 | 75.21 | 0.3982 | 840.0 | 614.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 14.20 | 164.73 | -23.86 | 70.42 | 0.4180 | 662.0 | 550.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 12.51 | 164.87 | -23.72 | 74.33 | 0.4097 | 704.0 | 410.5 | |
| 2.91 | 4.84 | 1.58 | 2.63 | 11.67 | 164.41 | -24.18 | 76.54 | 0.4142 | -986.5 | -786.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 11.74 | 164.03 | -24.56 | 76.51 | 0.4202 | -611.0 | -509.2 | |
| 2.11 | 10.30 | 1.15 | 5.63 | 11.26 | 163.94 | -24.65 | 77.69 | 0.4204 | -1021.5 | -713.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 11.56 | 163.88 | -24.71 | 77.01 | 0.4221 | -822.0 | -715.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 11.64 | 163.67 | -24.92 | 76.90 | 0.4255 | -591.0 | -491.2 | |
| 0.53 | -42.00 | 0.29 | -42.00 | 10.99 | 163.46 | -25.13 | 78.47 | 0.4273 | -754.7 | 999999 | |
| 0.97 | 2.73 | 0.53 | 1.50 | 12.30 | 162.99 | -25.60 | 75.64 | 0.4376 | 978.5 | 727.5 | |
| 6.78 | 11.98 | 3.74 | 6.61 | 12.40 | 162.64 | -25.95 | 75.54 | 0.4432 | 991.9 | 728.7 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 11.54 | 162.29 | -26.30 | 77.59 | 0.4464 | 700.0 | 556.7 | |
| 0.00 | 1.94 | 0.00 | 1.08 | 12.25 | 162.01 | -26.58 | 76.11 | 0.4524 | 897.0 | 669.9 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 12.42 | 161.75 | -26.84 | 75.84 | 0.4567 | 678.0 | 683.5 | |
| 0.00 | 3.70 | 0.00 | 2.06 | 12.06 | 161.34 | -27.25 | 76.74 | 0.4620 | 795.0 | 690.6 | |
| 0.00 | 1.76 | 0.00 | 0.99 | 11.77 | 160.99 | -27.60 | 77.47 | 0.4666 | 817.0 | 618.2 | |
| 0.00 | 1.59 | 0.00 | 0.90 | 13.45 | 159.99 | -28.60 | 74.32 | 0.4856 | 479.0 | 428.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
