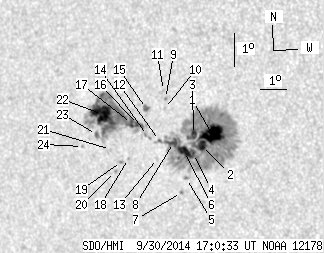

SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.40 | 461.43 | 57.27 | 287.93 | -1.43 | 151.91 | -36.68 | 101.29 | 0.6110 | 326.6 | 171.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.42 | 308.70 | 16.16 | 189.84 | -1.36 | 153.51 | -35.08 | 101.76 | 0.5891 | 1268.3 | 404.3 | |
| 7.49 | -1.00 | 4.61 | -1.00 | -1.72 | 153.14 | -35.46 | 102.20 | 0.5954 | 964.9 | 999999 | |
| 6.25 | -1.00 | 3.86 | -1.00 | -1.41 | 152.81 | -35.78 | 101.57 | 0.5989 | 741.1 | 999999 | |
| 0.88 | -1.00 | 0.54 | -1.00 | -1.99 | 152.80 | -35.80 | 102.50 | 0.6010 | 834.8 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.21 | -2.77 | 152.51 | -36.08 | 103.63 | 0.6075 | 584.0 | 382.8 | |
| 9.51 | -1.00 | 5.91 | -1.00 | -1.95 | 152.46 | -36.13 | 102.30 | 0.6054 | 851.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -3.21 | 152.31 | -36.29 | 104.25 | 0.6119 | -699.0 | -635.7 | |
| 4.84 | -1.00 | 3.02 | -1.00 | -1.70 | 152.06 | -36.53 | 101.75 | 0.6100 | 656.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -0.39 | 151.78 | -36.81 | 99.54 | 0.6099 | 827.0 | 688.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -0.70 | 151.74 | -36.85 | 100.02 | 0.6113 | 683.0 | 561.1 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -0.15 | 151.70 | -36.89 | 99.14 | 0.6102 | 662.0 | 557.6 | |
| 0.53 | -1.00 | 0.33 | -1.00 | -1.68 | 151.53 | -37.06 | 101.52 | 0.6170 | 581.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.00 | -2.23 | 151.44 | -37.15 | 102.35 | 0.6200 | 129.0 | 186.3 | |
| 0.00 | 3.35 | 0.00 | 2.11 | -1.56 | 151.08 | -37.51 | 101.16 | 0.6227 | 277.0 | 361.2 | |
| 1.76 | 3.61 | 1.11 | 2.28 | -0.74 | 151.06 | -37.53 | 99.87 | 0.6206 | 763.5 | 562.1 | |
| 2.99 | 132.38 | 1.90 | 85.21 | -1.25 | 150.74 | -37.85 | 100.56 | 0.6262 | 619.6 | -411.8 | |
| 2.99 | -16.00 | 1.91 | -16.00 | -1.24 | 150.48 | -38.11 | 100.45 | 0.6298 | 360.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -2.31 | 150.33 | -38.26 | 102.06 | 0.6349 | -660.0 | -597.0 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -2.42 | 150.06 | -38.53 | 102.13 | 0.6389 | 506.0 | 495.3 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -2.75 | 149.82 | -38.77 | 102.53 | 0.6431 | 493.0 | 432.3 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -2.09 | 149.65 | -38.94 | 101.47 | 0.6432 | -268.0 | -216.7 | |
| 26.77 | -16.00 | 17.29 | -16.00 | -1.05 | 149.36 | -39.23 | 99.79 | 0.6439 | -1005.2 | 999999 | |
| 0.97 | -16.00 | 0.63 | -16.00 | -1.67 | 149.12 | -39.48 | 100.66 | 0.6489 | -700.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -2.08 | 148.55 | -40.04 | 101.08 | 0.6574 | -526.0 | -458.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
