SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.94 | 674.53 | 124.59 | 635.99 | -11.04 | 243.51 | 55.48 | 252.28 | 0.8465 | 52.3 | 71.2 | |
|
previous
or next observation for the same group /

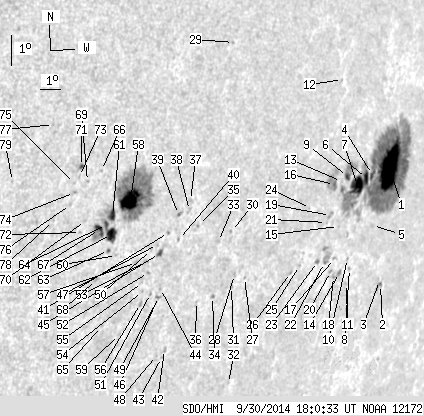

back to the solar disc SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.90 | 347.35 | 54.51 | 367.54 | -10.73 | 248.23 | 60.20 | 254.14 | 0.8882 | 688.6 | 226.1 | |
| 0.97 | 3.17 | 1.10 | 3.60 | -14.51 | 249.18 | 61.14 | 250.29 | 0.9024 | 584.3 | 506.1 | |
| 0.00 | 1.23 | 0.00 | 1.40 | -14.37 | 249.05 | 61.01 | 250.41 | 0.9012 | 500.0 | 496.6 | |
| 3.17 | -1.00 | 3.29 | -1.00 | -10.85 | 247.23 | 59.19 | 253.75 | 0.8806 | 693.5 | 999999 | |
| 0.00 | 2.20 | 0.00 | 2.36 | -12.50 | 247.82 | 59.78 | 252.09 | 0.8885 | 159.0 | 156.9 | |
| 5.64 | -1.00 | 5.79 | -1.00 | -10.94 | 246.90 | 58.86 | 253.56 | 0.8782 | 167.5 | 999999 | |
| 17.53 | -1.00 | 17.78 | -1.00 | -11.11 | 246.42 | 58.38 | 253.24 | 0.8747 | 692.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.11 | -13.77 | 246.91 | 58.88 | 250.45 | 0.8842 | -160.0 | -1.8 | |
| 2.91 | 16.47 | 2.88 | 16.39 | -10.75 | 245.73 | 57.69 | 253.44 | 0.8683 | 761.3 | 394.3 | |
| 0.00 | 0.97 | 0.00 | 1.01 | -13.42 | 246.66 | 58.62 | 250.75 | 0.8815 | -82.0 | -61.1 | |
| 0.00 | 0.88 | 0.00 | 0.93 | -14.24 | 246.93 | 58.89 | 249.93 | 0.8854 | 271.0 | 230.1 | |
| 0.00 | 0.53 | 0.00 | 0.50 | -7.64 | 244.66 | 56.63 | 256.68 | 0.8527 | 510.0 | 513.2 | |
| 0.00 | 0.88 | 0.00 | 0.87 | -10.88 | 245.42 | 57.39 | 253.21 | 0.8660 | 428.0 | 434.5 | |
| 0.00 | 1.59 | 0.00 | 1.64 | -13.83 | 246.34 | 58.30 | 250.21 | 0.8800 | -174.0 | -92.0 | |
| 0.00 | 0.35 | 0.00 | 0.35 | -12.32 | 245.72 | 57.68 | 251.69 | 0.8716 | 201.0 | 153.2 | |
| 1.32 | 16.65 | 1.29 | 16.13 | -10.93 | 245.04 | 57.00 | 253.04 | 0.8630 | 818.1 | 541.7 | |
| 0.00 | 1.32 | 0.00 | 1.34 | -13.34 | 245.86 | 57.82 | 250.60 | 0.8751 | -223.0 | -100.2 | |
| 0.00 | 1.67 | 0.00 | 1.72 | -13.93 | 246.03 | 57.99 | 250.01 | 0.8777 | -377.0 | -258.3 | |
| 0.00 | 3.35 | 0.00 | 3.29 | -11.91 | 245.12 | 57.08 | 251.97 | 0.8658 | 698.0 | 624.6 | |
| 0.00 | 1.50 | 0.00 | 1.52 | -13.74 | 245.78 | 57.74 | 250.13 | 0.8754 | -329.0 | -283.3 | |
| 0.00 | 0.70 | 0.00 | 0.69 | -12.11 | 244.96 | 56.92 | 251.69 | 0.8650 | 550.0 | 572.0 | |
| 0.44 | 10.22 | 0.44 | 10.21 | -13.41 | 245.30 | 57.26 | 250.36 | 0.8708 | -310.0 | 130.5 | |
| 0.70 | 2.20 | 0.70 | 2.17 | -13.33 | 244.88 | 56.84 | 250.31 | 0.8672 | -526.1 | -399.4 | |
| 0.00 | 0.44 | 0.00 | 0.42 | -11.57 | 243.90 | 55.86 | 251.99 | 0.8547 | 673.0 | 554.0 | |
| 0.00 | 0.88 | 0.00 | 0.85 | -13.36 | 243.87 | 55.84 | 249.96 | 0.8590 | -529.0 | -431.5 | |
| 0.00 | 1.41 | 0.00 | 1.34 | -13.54 | 243.44 | 55.40 | 249.62 | 0.8558 | -297.0 | -345.5 | |
| 0.00 | 0.97 | 0.00 | 0.87 | -13.45 | 240.97 | 52.93 | 248.88 | 0.8341 | 280.0 | 329.0 | |
| 0.00 | 1.50 | 0.00 | 1.32 | -13.30 | 240.41 | 52.37 | 248.85 | 0.8286 | 582.0 | 484.3 | |
| 0.00 | 1.06 | 0.00 | 0.85 | -5.93 | 238.78 | 50.75 | 257.10 | 0.7924 | -506.0 | -433.4 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -11.89 | 239.85 | 51.82 | 250.29 | 0.8192 | 639.0 | 572.3 | |
| 0.00 | 1.50 | 0.00 | 1.32 | -13.68 | 240.38 | 52.34 | 248.40 | 0.8294 | 433.0 | 377.5 | |
| 0.00 | 0.88 | 0.00 | 0.82 | -16.88 | 241.38 | 53.34 | 245.16 | 0.8480 | 429.0 | 359.5 | |
| 0.00 | 2.03 | 0.00 | 1.72 | -12.15 | 239.28 | 51.24 | 249.78 | 0.8146 | 176.0 | 173.4 | |
| 0.00 | 1.67 | 0.00 | 1.45 | -13.91 | 239.49 | 51.45 | 247.81 | 0.8221 | 578.0 | 464.2 | |
| 0.00 | 1.14 | 0.00 | 0.94 | -11.54 | 238.15 | 50.11 | 250.08 | 0.8018 | -457.0 | -395.5 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -13.99 | 238.73 | 50.69 | 247.41 | 0.8153 | 373.0 | 325.5 | |
| 0.00 | 2.03 | 0.00 | 1.64 | -10.70 | 237.57 | 49.53 | 250.87 | 0.7935 | -570.0 | -443.8 | |
| 0.00 | 2.55 | 0.00 | 2.07 | -11.02 | 237.60 | 49.56 | 250.50 | 0.7947 | -490.0 | -487.1 | |
| 0.35 | 1.94 | 0.28 | 1.56 | -11.10 | 237.10 | 49.06 | 250.22 | 0.7900 | -674.5 | -564.5 | |
| 0.00 | 0.97 | 0.00 | 0.79 | -11.90 | 237.28 | 49.25 | 249.32 | 0.7945 | -448.0 | -378.1 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -11.63 | 236.75 | 48.71 | 249.44 | 0.7883 | -636.0 | -582.0 | |
| 0.00 | 1.94 | 0.00 | 1.63 | -15.42 | 237.62 | 49.58 | 245.31 | 0.8100 | -384.0 | -354.6 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -15.67 | 237.56 | 49.52 | 244.99 | 0.8103 | -538.0 | -428.0 | |
| 0.00 | 1.23 | 0.00 | 1.00 | -13.40 | 236.82 | 48.79 | 247.35 | 0.7952 | -319.0 | -224.4 | |
| 1.76 | 4.05 | 1.41 | 3.24 | -12.26 | 236.48 | 48.44 | 248.57 | 0.7878 | -452.0 | -249.4 | |
| 0.00 | 2.20 | 0.00 | 1.79 | -13.65 | 236.80 | 48.76 | 247.04 | 0.7959 | -440.0 | -386.4 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -11.97 | 236.32 | 48.28 | 248.86 | 0.7851 | -412.0 | -436.2 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -15.58 | 237.29 | 49.25 | 244.98 | 0.8075 | -515.0 | -537.1 | |
| 0.00 | 1.59 | 0.00 | 1.29 | -13.81 | 236.75 | 48.71 | 246.83 | 0.7959 | -351.0 | -323.9 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -12.10 | 236.07 | 48.03 | 248.60 | 0.7831 | -608.0 | -522.3 | |
| 0.00 | 1.14 | 0.00 | 0.92 | -13.52 | 236.39 | 48.35 | 247.02 | 0.7914 | -541.0 | -528.5 | |
| 0.00 | 1.32 | 0.00 | 1.05 | -12.83 | 236.11 | 48.08 | 247.74 | 0.7862 | -616.0 | -484.0 | |
| 0.00 | 1.94 | 0.00 | 1.54 | -12.47 | 235.93 | 47.89 | 248.10 | 0.7830 | -694.0 | -539.8 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -13.42 | 235.99 | 47.95 | 246.97 | 0.7871 | -633.0 | -572.8 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -13.13 | 235.91 | 47.87 | 247.29 | 0.7852 | -508.0 | -391.3 | |
| 0.00 | 2.03 | 0.00 | 1.62 | -13.80 | 236.00 | 47.96 | 246.52 | 0.7886 | -587.0 | -506.9 | |
| 0.00 | 1.50 | 0.00 | 1.18 | -12.46 | 235.47 | 47.43 | 247.92 | 0.7783 | -517.0 | -378.2 | |
| 24.40 | 142.85 | 18.63 | 109.34 | -10.41 | 234.75 | 46.72 | 250.14 | 0.7636 | -969.5 | -211.1 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -14.73 | 235.29 | 47.25 | 245.11 | 0.7852 | -179.0 | -214.6 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -12.15 | 234.49 | 46.45 | 247.88 | 0.7672 | -519.0 | -430.6 | |
| 4.76 | 49.14 | 3.59 | 37.07 | -10.85 | 234.04 | 46.00 | 249.29 | 0.7576 | -884.4 | -572.2 | |
| 9.16 | -61.00 | 6.96 | -61.00 | -11.45 | 234.12 | 46.08 | 248.58 | 0.7607 | -701.7 | 999999 | |
| 0.62 | 1.67 | 0.47 | 1.28 | -11.95 | 234.09 | 46.05 | 247.94 | 0.7623 | -567.9 | -463.3 | |
| 1.67 | -61.00 | 1.26 | -61.00 | -11.11 | 233.83 | 45.79 | 248.87 | 0.7563 | -937.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.03 | -14.39 | 234.37 | 46.34 | 245.10 | 0.7748 | -545.0 | -408.9 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -9.38 | 233.29 | 45.25 | 250.84 | 0.7441 | -666.0 | -607.4 | |
| 4.76 | -61.00 | 3.57 | -61.00 | -11.25 | 233.55 | 45.51 | 248.59 | 0.7538 | -901.7 | 999999 | |
| 0.00 | 2.82 | 0.00 | 2.15 | -12.84 | 233.76 | 45.72 | 246.70 | 0.7623 | -677.0 | -453.5 | |
| 0.00 | 1.14 | 0.00 | 0.84 | -9.68 | 232.73 | 44.70 | 250.23 | 0.7391 | -676.0 | -542.6 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -10.91 | 232.87 | 44.83 | 248.72 | 0.7453 | -632.0 | -604.2 | |
| 0.88 | 2.11 | 0.64 | 1.54 | -9.18 | 232.40 | 44.36 | 250.73 | 0.7335 | -641.8 | -536.1 | |
| 0.00 | 1.14 | 0.00 | 0.85 | -11.27 | 232.72 | 44.68 | 248.19 | 0.7451 | -610.0 | -471.9 | |
| 0.00 | 1.50 | 0.00 | 1.09 | -9.49 | 232.36 | 44.32 | 250.31 | 0.7342 | -565.0 | -507.3 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -9.98 | 232.23 | 44.19 | 249.63 | 0.7346 | -775.0 | -696.2 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -9.69 | 232.18 | 44.14 | 249.97 | 0.7330 | -673.0 | -600.4 | |
| 0.00 | 1.32 | 0.00 | 0.96 | -10.34 | 232.12 | 44.08 | 249.11 | 0.7349 | -527.0 | -411.1 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -7.76 | 231.02 | 42.98 | 252.02 | 0.7125 | -567.0 | -408.6 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -10.79 | 231.48 | 43.44 | 248.24 | 0.7296 | 278.0 | 270.1 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -9.41 | 229.55 | 41.51 | 249.15 | 0.7021 | -247.0 | -265.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
