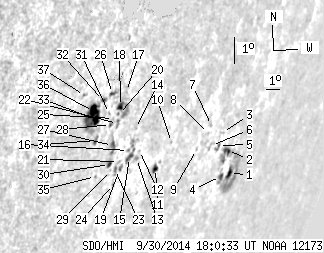

SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.00 | 166.53 | 40.42 | 207.05 | -16.58 | 250.84 | 62.80 | 248.49 | 0.9145 | -197.0 | -103.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.88 | 52.40 | 6.14 | 82.23 | -18.06 | 256.36 | 68.32 | 248.44 | 0.9513 | -10.8 | -31.9 | |
| 3.08 | -1.00 | 4.65 | -1.00 | -17.22 | 255.53 | 67.49 | 249.10 | 0.9460 | 436.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 2.03 | -16.55 | 254.63 | 66.59 | 249.58 | 0.9402 | 325.0 | 293.7 | |
| 1.94 | -1.00 | 2.97 | -1.00 | -18.07 | 255.60 | 67.56 | 248.25 | 0.9475 | 470.4 | 999999 | |
| 0.53 | 3.26 | 0.76 | 4.70 | -16.96 | 254.60 | 66.56 | 249.14 | 0.9406 | 388.7 | 389.8 | |
| 0.00 | 3.08 | 0.00 | 4.32 | -16.89 | 254.00 | 65.96 | 249.06 | 0.9372 | 444.0 | 417.7 | |
| 0.00 | 1.06 | 0.00 | 1.44 | -16.20 | 253.54 | 65.50 | 249.67 | 0.9335 | 492.0 | 404.7 | |
| 0.00 | 0.26 | 0.00 | 0.36 | -16.45 | 253.47 | 65.43 | 249.39 | 0.9335 | 417.0 | 366.0 | |
| 0.00 | 0.88 | 0.00 | 1.18 | -16.89 | 252.86 | 64.82 | 248.77 | 0.9306 | 409.0 | 364.7 | |
| 0.00 | 0.79 | 0.00 | 0.97 | -16.44 | 250.79 | 62.75 | 248.69 | 0.9170 | -193.0 | -144.2 | |
| 2.47 | 4.14 | 2.98 | 5.01 | -17.21 | 250.14 | 62.10 | 247.70 | 0.9142 | -179.6 | -91.2 | |
| 0.00 | 0.97 | 0.00 | 1.11 | -16.47 | 248.67 | 60.63 | 248.05 | 0.9029 | -90.0 | -68.2 | |
| 0.00 | 1.59 | 0.00 | 1.81 | -16.72 | 248.61 | 60.58 | 247.77 | 0.9030 | -333.0 | -277.1 | |
| 0.00 | 0.88 | 0.00 | 0.98 | -15.70 | 248.02 | 59.99 | 248.69 | 0.8967 | -174.0 | -141.0 | |
| 2.11 | 11.01 | 2.37 | 12.35 | -16.64 | 248.12 | 60.08 | 247.71 | 0.8994 | -437.0 | -331.2 | |
| 0.00 | 1.14 | 0.00 | 1.27 | -16.39 | 247.93 | 59.89 | 247.91 | 0.8975 | -559.0 | -534.3 | |
| 0.00 | 0.70 | 0.00 | 0.74 | -14.40 | 246.88 | 58.84 | 249.75 | 0.8853 | 573.0 | 549.1 | |
| 2.99 | 13.30 | 3.16 | 14.15 | -14.86 | 246.71 | 58.67 | 249.20 | 0.8851 | -182.9 | 286.9 | |
| 0.53 | 2.20 | 0.59 | 2.45 | -16.98 | 247.67 | 59.63 | 247.21 | 0.8969 | -277.5 | -264.6 | |
| 0.00 | 0.97 | 0.00 | 1.02 | -15.11 | 246.70 | 58.67 | 248.92 | 0.8857 | -331.0 | -314.7 | |
| 0.00 | 1.32 | 0.00 | 1.46 | -16.70 | 247.46 | 59.42 | 247.45 | 0.8948 | -455.0 | -497.9 | |
| 0.00 | 2.91 | 0.00 | 3.09 | -15.40 | 246.78 | 58.74 | 248.63 | 0.8869 | -350.0 | -240.8 | |
| 0.00 | 3.52 | 0.00 | 3.88 | -17.02 | 247.44 | 59.40 | 247.10 | 0.8954 | -500.0 | -413.6 | |
| 0.00 | 1.23 | 0.00 | 1.37 | -17.45 | 247.54 | 59.50 | 246.67 | 0.8971 | -371.0 | -348.2 | |
| 0.00 | 0.53 | 0.00 | 0.56 | -15.21 | 246.45 | 58.41 | 248.73 | 0.8840 | -228.0 | -251.8 | |
| 0.88 | 3.26 | 0.91 | 3.36 | -14.37 | 246.03 | 57.99 | 249.52 | 0.8788 | -229.5 | -98.7 | |
| 0.00 | 6.78 | 0.00 | 7.28 | -16.11 | 246.80 | 58.77 | 247.87 | 0.8887 | 415.0 | -57.1 | |
| 0.00 | 1.85 | 0.00 | 1.94 | -15.39 | 246.35 | 58.31 | 248.51 | 0.8836 | -427.0 | -295.7 | |
| 0.00 | 0.26 | 0.00 | 0.29 | -16.95 | 247.10 | 59.06 | 247.06 | 0.8928 | -519.0 | -494.3 | |
| 1.50 | 3.88 | 1.62 | 4.19 | -16.74 | 246.93 | 58.89 | 247.23 | 0.8911 | -597.2 | -428.4 | |
| 0.00 | 0.79 | 0.00 | 0.82 | -15.02 | 246.13 | 58.09 | 248.84 | 0.8811 | -381.0 | -317.7 | |
| 0.88 | 2.20 | 0.90 | 2.24 | -14.55 | 245.57 | 57.54 | 249.19 | 0.8757 | -420.2 | -382.0 | |
| 5.02 | 31.88 | 5.11 | 32.22 | -15.13 | 245.35 | 57.31 | 248.48 | 0.8753 | -595.6 | -473.4 | |
| 0.00 | 3.61 | 0.00 | 3.73 | -15.83 | 245.66 | 57.62 | 247.81 | 0.8794 | -508.0 | -394.9 | |
| 0.00 | 0.88 | 0.00 | 0.94 | -17.05 | 246.24 | 58.20 | 246.68 | 0.8867 | 283.0 | 214.4 | |
| 8.19 | -33.00 | 8.26 | -33.00 | -14.85 | 245.12 | 57.08 | 248.71 | 0.8728 | -814.6 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.56 | -14.26 | 244.37 | 56.34 | 249.12 | 0.8654 | -649.0 | -446.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
