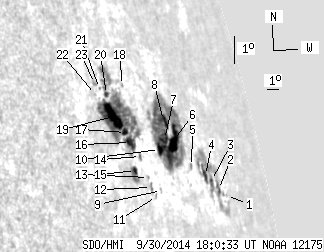

SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.54 | 396.74 | 117.81 | 630.16 | 15.19 | 260.87 | 72.83 | 283.85 | 0.9498 | 2.5 | -117.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.61 | 12.89 | 266.78 | 78.74 | 281.77 | 0.9775 | 416.0 | 404.7 | |
| 2.91 | 63.67 | 6.25 | 131.81 | 13.18 | 265.86 | 77.83 | 282.01 | 0.9741 | -177.3 | -76.5 | |
| 0.79 | -2.00 | 1.63 | -2.00 | 13.54 | 265.23 | 77.19 | 282.32 | 0.9715 | -227.4 | 999999 | |
| 3.26 | -2.00 | 6.40 | -2.00 | 13.76 | 264.63 | 76.59 | 282.52 | 0.9690 | -320.2 | 999999 | |
| 0.00 | 1.94 | 0.00 | 3.49 | 14.19 | 263.26 | 75.22 | 282.89 | 0.9628 | -471.0 | -324.4 | |
| 18.05 | 160.11 | 30.37 | 262.67 | 15.14 | 262.03 | 73.99 | 283.81 | 0.9568 | -430.5 | -299.0 | |
| 4.58 | -6.00 | 7.35 | -6.00 | 15.27 | 261.14 | 73.11 | 283.91 | 0.9523 | -803.6 | 999999 | |
| 6.61 | -6.00 | 10.81 | -6.00 | 15.82 | 261.55 | 73.51 | 284.50 | 0.9543 | -566.1 | 999999 | |
| 0.00 | 1.67 | 0.00 | 2.49 | 13.85 | 259.65 | 71.62 | 282.35 | 0.9447 | 113.0 | 108.5 | |
| 3.96 | -6.00 | 6.13 | -6.00 | 15.04 | 260.41 | 72.37 | 283.64 | 0.9485 | -35.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 2.05 | 13.73 | 259.07 | 71.04 | 282.20 | 0.9414 | 325.0 | 297.7 | |
| 0.00 | 3.08 | 0.00 | 4.42 | 14.04 | 258.82 | 70.78 | 282.52 | 0.9399 | 335.0 | 329.6 | |
| 0.00 | 0.88 | 0.00 | 1.26 | 14.35 | 258.76 | 70.72 | 282.85 | 0.9395 | 392.0 | 349.8 | |
| 0.00 | 2.73 | 0.00 | 3.85 | 15.03 | 258.52 | 70.48 | 283.57 | 0.9379 | 283.0 | 249.0 | |
| 2.20 | 9.69 | 3.01 | 13.19 | 14.68 | 257.79 | 69.75 | 283.17 | 0.9337 | 604.6 | 390.8 | |
| 8.19 | 126.20 | 11.28 | 170.88 | 15.53 | 257.97 | 69.93 | 284.08 | 0.9346 | 434.3 | 28.5 | |
| 3.26 | -16.00 | 4.44 | -16.00 | 15.86 | 257.77 | 69.73 | 284.43 | 0.9333 | 376.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.37 | 17.23 | 258.64 | 70.60 | 285.92 | 0.9383 | -431.0 | -395.2 | |
| 21.14 | -16.00 | 28.04 | -16.00 | 16.43 | 257.13 | 69.09 | 285.03 | 0.9294 | 626.1 | 999999 | |
| 1.59 | 20.34 | 2.10 | 27.20 | 17.12 | 257.07 | 69.03 | 285.78 | 0.9289 | 311.9 | -62.3 | |
| 0.00 | 0.62 | 0.00 | 0.80 | 17.36 | 256.64 | 68.60 | 286.03 | 0.9263 | 437.0 | 518.1 | |
| 0.00 | 0.70 | 0.00 | 0.90 | 17.22 | 256.18 | 68.14 | 285.88 | 0.9234 | 533.0 | 525.9 | |
| 0.00 | 2.47 | 0.00 | 3.17 | 17.54 | 256.36 | 68.32 | 286.23 | 0.9245 | 633.0 | 529.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
