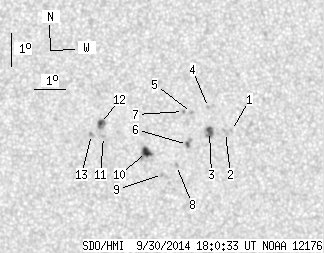

SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.69 | 40.95 | 6.72 | 21.72 | 7.20 | 209.02 | 20.98 | 272.56 | 0.3571 | -208.5 | -275.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.76 | 7.33 | 211.17 | 23.13 | 272.89 | 0.3918 | -689.0 | -483.1 | |
| 0.00 | 3.08 | 0.00 | 1.66 | 7.28 | 210.97 | 22.93 | 272.76 | 0.3886 | -730.0 | -613.6 | |
| 3.88 | 6.78 | 2.07 | 3.63 | 7.33 | 210.45 | 22.41 | 272.90 | 0.3802 | -1063.7 | -830.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 8.06 | 210.46 | 22.42 | 274.80 | 0.3805 | -791.0 | -624.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 7.93 | 209.89 | 21.85 | 274.51 | 0.3714 | -955.0 | -713.9 | |
| 0.97 | 4.05 | 0.52 | 2.16 | 6.98 | 209.71 | 21.67 | 271.93 | 0.3683 | -1076.1 | -829.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 7.97 | 209.63 | 21.59 | 274.65 | 0.3673 | -908.0 | -723.8 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 6.36 | 209.32 | 21.28 | 270.21 | 0.3623 | -957.0 | -756.1 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 6.11 | 208.86 | 20.82 | 269.46 | 0.3550 | -857.0 | -694.1 | |
| 5.37 | 9.42 | 2.84 | 4.97 | 6.79 | 208.37 | 20.33 | 271.36 | 0.3467 | 784.0 | -80.9 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 7.33 | 207.02 | 18.98 | 272.94 | 0.3244 | 831.0 | 700.7 | |
| 2.47 | 5.99 | 1.29 | 3.13 | 7.72 | 206.94 | 18.90 | 274.17 | 0.3232 | 1071.4 | 799.5 | |
| 0.00 | 2.03 | 0.00 | 1.06 | 7.40 | 206.64 | 18.60 | 273.19 | 0.3181 | 931.0 | 719.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
