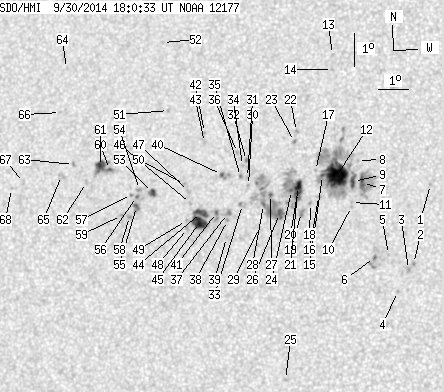

SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.49 | 433.65 | 49.93 | 228.85 | 11.95 | 168.54 | -19.50 | 73.18 | 0.3423 | -117.5 | -71.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.45 | 12.27 | 173.45 | -14.59 | 67.88 | 0.2668 | -886.0 | -715.2 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 9.88 | 173.04 | -15.00 | 77.05 | 0.2629 | -970.0 | -850.8 | |
| 0.00 | 2.47 | 0.00 | 1.27 | 9.69 | 172.89 | -15.15 | 77.84 | 0.2647 | -1110.0 | -864.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 9.02 | 172.57 | -15.47 | 80.52 | 0.2683 | -882.0 | -690.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 10.13 | 172.23 | -15.80 | 76.70 | 0.2767 | -768.0 | -622.4 | |
| 0.35 | 5.55 | 0.18 | 2.87 | 10.02 | 171.80 | -16.24 | 77.35 | 0.2836 | -1042.2 | -709.7 | |
| 4.40 | 29.50 | 2.29 | 15.31 | 12.26 | 171.28 | -16.75 | 70.26 | 0.3006 | -1195.6 | -650.5 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 12.92 | 171.08 | -16.96 | 68.39 | 0.3072 | -625.0 | -466.4 | |
| 3.96 | 138.62 | 2.06 | 72.33 | 12.29 | 170.99 | -17.04 | 70.46 | 0.3053 | -1118.1 | -346.8 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 11.53 | 170.98 | -17.06 | 72.88 | 0.3021 | -858.0 | -525.9 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 11.65 | 170.97 | -17.07 | 72.50 | 0.3028 | -910.0 | -599.5 | |
| 36.11 | -9.00 | 18.84 | -9.00 | 12.45 | 170.44 | -17.60 | 70.46 | 0.3147 | -1236.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 16.10 | 170.01 | -18.03 | 60.51 | 0.3431 | -742.0 | -510.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 15.65 | 170.05 | -17.99 | 61.67 | 0.3393 | -820.0 | -649.2 | |
| 1.06 | -9.00 | 0.55 | -9.00 | 12.43 | 169.98 | -18.05 | 70.90 | 0.3217 | -618.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 11.80 | 169.90 | -18.14 | 72.89 | 0.3203 | -777.0 | -749.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 12.58 | 169.75 | -18.29 | 70.67 | 0.3260 | -664.0 | -444.8 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 11.58 | 169.66 | -18.38 | 73.73 | 0.3233 | -742.0 | -699.5 | |
| 0.00 | 4.05 | 0.00 | 2.12 | 11.30 | 169.38 | -18.65 | 74.76 | 0.3265 | 143.0 | 272.7 | |
| 5.37 | 48.00 | 2.82 | 25.22 | 12.07 | 169.23 | -18.81 | 72.56 | 0.3319 | -1122.8 | -443.2 | |
| 3.70 | -20.00 | 1.94 | -20.00 | 11.89 | 169.21 | -18.83 | 73.10 | 0.3315 | -1175.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 13.73 | 169.04 | -19.00 | 67.99 | 0.3426 | 852.0 | 672.3 | |
| 0.00 | 1.76 | 0.00 | 0.93 | 13.43 | 169.00 | -19.04 | 68.87 | 0.3417 | 904.0 | 768.5 | |
| 0.79 | -20.00 | 0.42 | -20.00 | 11.95 | 169.02 | -19.02 | 73.09 | 0.3348 | -773.8 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.97 | 6.27 | 169.13 | -18.91 | 90.36 | 0.3236 | 823.0 | 629.9 | |
| 3.70 | 68.52 | 1.95 | 36.14 | 11.24 | 168.68 | -19.36 | 75.36 | 0.3376 | 285.3 | 213.7 | |
| 0.70 | -26.00 | 0.37 | -26.00 | 11.80 | 168.34 | -19.70 | 73.95 | 0.3448 | -809.9 | 999999 | |
| 0.53 | -26.00 | 0.28 | -26.00 | 11.49 | 168.14 | -19.90 | 74.96 | 0.3469 | 986.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 10.79 | 168.06 | -19.98 | 76.98 | 0.3460 | 751.0 | 682.0 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 12.04 | 167.61 | -20.43 | 73.73 | 0.3572 | 934.0 | 746.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 12.28 | 167.55 | -20.48 | 73.11 | 0.3589 | 718.0 | 673.6 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 12.79 | 167.48 | -20.56 | 71.78 | 0.3621 | 999.0 | 845.7 | |
| 0.00 | 4.58 | 0.00 | 2.43 | 11.46 | 167.45 | -20.58 | 75.41 | 0.3576 | 509.0 | 653.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 12.64 | 167.36 | -20.68 | 72.28 | 0.3633 | 808.0 | 678.8 | |
| 0.00 | 1.76 | 0.00 | 0.94 | 12.30 | 167.32 | -20.72 | 73.20 | 0.3626 | 1049.0 | 874.0 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 13.02 | 167.16 | -20.88 | 71.39 | 0.3679 | 802.0 | 623.5 | |
| 0.00 | 3.96 | 0.00 | 2.11 | 11.17 | 166.98 | -21.05 | 76.45 | 0.3641 | 926.0 | 902.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 10.96 | 167.00 | -21.04 | 77.01 | 0.3633 | 1079.0 | 927.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 10.45 | 167.00 | -21.04 | 78.41 | 0.3619 | 767.0 | 646.0 | |
| 1.06 | 5.64 | 0.56 | 3.00 | 12.34 | 166.69 | -21.34 | 73.49 | 0.3725 | 943.4 | 838.2 | |
| 0.88 | 4.93 | 0.47 | 2.63 | 11.19 | 166.62 | -21.42 | 76.58 | 0.3699 | 1086.1 | 886.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 13.58 | 166.02 | -22.02 | 70.73 | 0.3877 | 819.0 | 619.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 13.28 | 166.05 | -21.99 | 71.47 | 0.3860 | 832.0 | 731.0 | |
| 6.25 | 25.36 | 3.34 | 13.56 | 11.17 | 166.13 | -21.91 | 76.85 | 0.3776 | 1059.2 | 820.7 | |
| 12.51 | -44.00 | 6.69 | -44.00 | 10.87 | 166.09 | -21.95 | 77.67 | 0.3774 | 1072.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 11.42 | 165.75 | -22.29 | 76.36 | 0.3843 | 777.0 | 597.8 | |
| 0.00 | 1.76 | 0.00 | 0.95 | 11.78 | 165.65 | -22.39 | 75.49 | 0.3868 | 829.0 | 681.7 | |
| 0.00 | 1.76 | 0.00 | 0.94 | 10.67 | 165.71 | -22.33 | 78.33 | 0.3829 | 683.0 | 589.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 10.91 | 165.65 | -22.38 | 77.73 | 0.3843 | 619.0 | 493.7 | |
| 0.00 | 1.67 | 0.00 | 0.90 | 11.99 | 165.50 | -22.54 | 75.04 | 0.3898 | 785.0 | 660.9 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 14.19 | 164.75 | -23.29 | 70.07 | 0.4095 | 772.0 | 610.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 16.24 | 164.30 | -23.73 | 65.69 | 0.4258 | 798.0 | 592.2 | |
| 2.99 | 4.76 | 1.62 | 2.57 | 11.70 | 164.46 | -23.58 | 76.23 | 0.4051 | -984.6 | -807.5 | |
| 0.00 | 2.03 | 0.00 | 1.10 | 11.77 | 164.01 | -24.02 | 76.24 | 0.4121 | -804.0 | -652.5 | |
| 1.76 | 5.11 | 0.96 | 2.77 | 11.26 | 163.96 | -24.08 | 77.50 | 0.4116 | -1101.4 | -828.2 | |
| 0.35 | 3.70 | 0.19 | 2.01 | 11.56 | 163.93 | -24.11 | 76.79 | 0.4128 | -935.2 | -770.4 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 11.61 | 163.76 | -24.28 | 76.73 | 0.4156 | -603.0 | -552.4 | |
| 0.00 | 2.03 | 0.00 | 1.10 | 10.94 | 163.75 | -24.29 | 78.32 | 0.4141 | -817.0 | -705.8 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 10.96 | 163.48 | -24.56 | 78.37 | 0.4183 | -893.0 | -692.1 | |
| 0.97 | 18.41 | 0.53 | 10.11 | 12.32 | 162.95 | -25.09 | 75.38 | 0.4299 | 1049.4 | 739.8 | |
| 7.05 | -60.00 | 3.87 | -60.00 | 12.40 | 162.63 | -25.40 | 75.33 | 0.4349 | 991.7 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.26 | 11.90 | 162.21 | -25.83 | 76.63 | 0.4400 | 741.0 | 563.7 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 12.42 | 161.71 | -26.33 | 75.66 | 0.4489 | 944.0 | 774.8 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 15.30 | 161.11 | -26.92 | 69.76 | 0.4674 | 678.0 | 480.7 | |
| 0.00 | 2.73 | 0.00 | 1.52 | 12.06 | 161.34 | -26.70 | 76.56 | 0.4537 | 861.0 | 643.9 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 13.96 | 161.08 | -26.96 | 72.58 | 0.4630 | 760.0 | 619.8 | |
| 0.00 | 1.85 | 0.00 | 1.04 | 11.79 | 160.05 | -27.99 | 77.56 | 0.4724 | 214.0 | 274.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 11.58 | 159.66 | -28.38 | 78.09 | 0.4779 | 763.0 | 524.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
