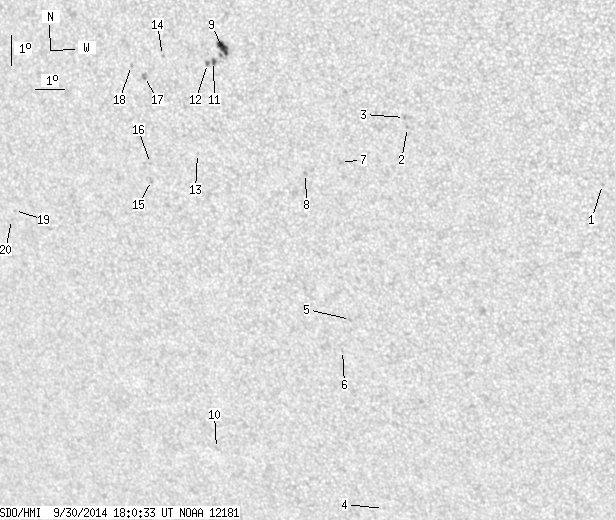

SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.60 | 40.68 | 5.58 | 24.17 | -12.69 | 161.06 | -26.98 | 125.87 | 0.5505 | -56.2 | 29.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.58 | -13.71 | 173.33 | -14.71 | 144.49 | 0.4265 | 808.0 | 591.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -12.12 | 167.14 | -20.90 | 132.15 | 0.4725 | 761.0 | 607.4 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -11.81 | 167.06 | -20.98 | 131.55 | 0.4701 | 941.0 | 774.6 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -24.89 | 164.53 | -23.51 | 144.94 | 0.6322 | 566.0 | 392.7 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -18.45 | 164.50 | -23.54 | 137.70 | 0.5652 | 426.0 | 516.5 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -19.50 | 164.06 | -23.98 | 138.47 | 0.5801 | 396.0 | 348.5 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -13.34 | 164.80 | -23.24 | 131.02 | 0.5110 | 348.0 | 386.4 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -13.75 | 163.57 | -24.47 | 130.19 | 0.5288 | 754.0 | 523.1 | |
| 7.49 | 13.21 | 4.35 | 7.68 | -9.89 | 161.14 | -26.90 | 121.56 | 0.5252 | -1041.2 | -684.4 | |
| 0.00 | 1.67 | 0.00 | 1.10 | -23.12 | 158.79 | -29.25 | 137.13 | 0.6628 | 780.0 | 582.4 | |
| 1.41 | 2.73 | 0.82 | 1.60 | -10.35 | 160.78 | -27.25 | 121.96 | 0.5331 | -919.6 | -698.8 | |
| 0.70 | 2.38 | 0.41 | 1.39 | -10.43 | 160.57 | -27.47 | 121.88 | 0.5363 | -736.8 | -535.6 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -13.31 | 159.90 | -28.14 | 125.66 | 0.5671 | -716.0 | -542.1 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -10.26 | 159.03 | -29.01 | 120.22 | 0.5544 | 860.0 | 682.7 | |
| 0.00 | 2.29 | 0.00 | 1.41 | -14.27 | 158.14 | -29.90 | 125.41 | 0.5950 | -733.0 | -559.9 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -13.73 | 158.18 | -29.86 | 124.67 | 0.5903 | -749.0 | -655.0 | |
| 0.00 | 3.26 | 0.00 | 1.96 | -10.96 | 158.32 | -29.72 | 120.70 | 0.5682 | 793.0 | 682.8 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -10.64 | 157.90 | -30.14 | 119.85 | 0.5712 | 917.0 | 731.2 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -15.58 | 152.85 | -35.19 | 122.91 | 0.6635 | -649.0 | -568.2 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -15.89 | 152.67 | -35.37 | 123.17 | 0.6674 | -507.0 | -368.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
