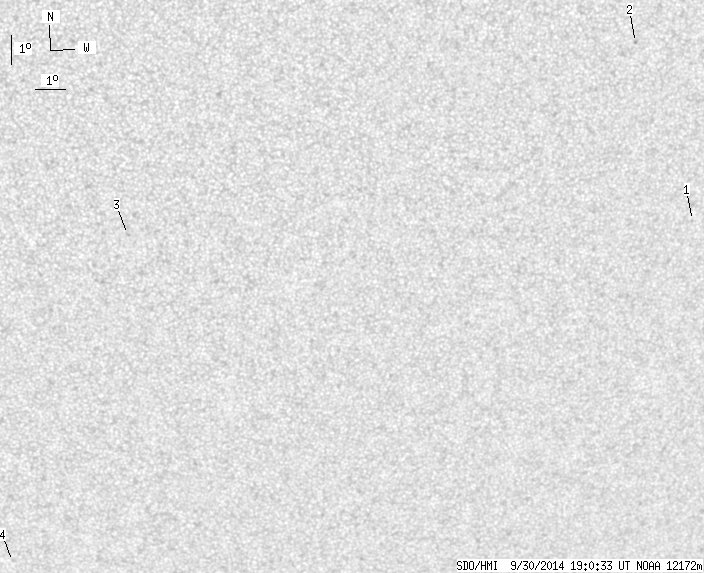

SDO HMI 2014-09-30 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.75 | 0.00 | 2.81 | -22.12 | 199.16 | 11.67 | 201.86 | 0.5401 | 34.8 | -19.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.65 | -21.17 | 210.64 | 23.15 | 218.61 | 0.5899 | 631.0 | 443.0 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -15.16 | 207.91 | 20.43 | 222.64 | 0.4993 | 847.0 | 658.1 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -21.06 | 191.82 | 4.34 | 188.61 | 0.4733 | -724.0 | -572.3 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -32.87 | 188.18 | 0.69 | 180.91 | 0.6400 | -615.0 | -413.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
