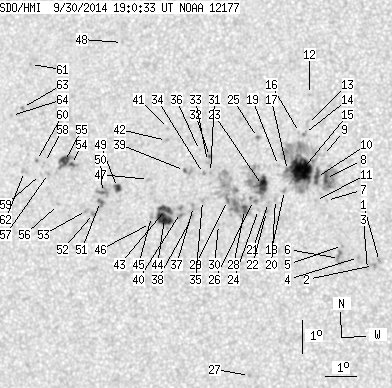

SDO HMI 2014-09-30 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.56 | 408.97 | 48.74 | 215.16 | 11.90 | 168.53 | -18.95 | 72.94 | 0.3337 | -143.6 | -81.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 0.90 | 9.81 | 173.09 | -14.40 | 76.89 | 0.2528 | -1084.0 | -839.8 | |
| 0.00 | 2.38 | 0.00 | 1.22 | 9.68 | 172.90 | -14.58 | 77.51 | 0.2554 | -1056.0 | -916.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 9.56 | 172.72 | -14.77 | 78.11 | 0.2580 | -894.0 | -715.7 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 9.91 | 172.42 | -15.07 | 76.98 | 0.2640 | -905.0 | -780.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 10.25 | 171.90 | -15.59 | 76.09 | 0.2737 | -822.0 | -708.2 | |
| 0.00 | 6.34 | 0.00 | 3.26 | 9.86 | 171.82 | -15.67 | 77.56 | 0.2736 | -589.0 | -724.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.59 | 171.32 | -16.17 | 71.92 | 0.2883 | -664.0 | -425.5 | |
| 3.43 | 25.89 | 1.78 | 13.40 | 12.25 | 171.24 | -16.24 | 69.79 | 0.2925 | -1230.0 | -727.0 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 12.94 | 171.14 | -16.35 | 67.68 | 0.2979 | -624.0 | -459.0 | |
| 4.32 | 122.15 | 2.24 | 63.56 | 12.27 | 170.96 | -16.53 | 70.01 | 0.2972 | -1127.1 | -357.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.58 | 170.97 | -16.52 | 72.27 | 0.2938 | -846.0 | -638.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 14.77 | 170.55 | -16.93 | 62.82 | 0.3180 | -709.0 | -532.3 | |
| 0.00 | 2.03 | 0.00 | 1.06 | 13.89 | 170.55 | -16.93 | 65.40 | 0.3123 | -560.0 | -521.1 | |
| 0.00 | 2.11 | 0.00 | 1.10 | 13.59 | 170.48 | -17.01 | 66.41 | 0.3116 | -854.0 | -718.4 | |
| 36.20 | -10.00 | 18.83 | -10.00 | 12.47 | 170.46 | -17.02 | 69.87 | 0.3058 | -1241.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 13.61 | 170.32 | -17.17 | 66.51 | 0.3142 | -453.0 | -379.8 | |
| 0.70 | -10.00 | 0.37 | -10.00 | 12.45 | 170.01 | -17.47 | 70.33 | 0.3128 | -674.4 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.06 | 11.85 | 169.96 | -17.53 | 72.26 | 0.3109 | -967.0 | -752.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.60 | 169.71 | -17.77 | 70.17 | 0.3181 | -637.0 | -414.2 | |
| 0.00 | 2.20 | 0.00 | 1.15 | 11.57 | 169.68 | -17.80 | 73.34 | 0.3140 | -688.0 | -592.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.47 | 169.47 | -18.02 | 73.80 | 0.3171 | -730.0 | -585.6 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 11.20 | 169.42 | -18.07 | 74.68 | 0.3168 | 816.0 | 621.5 | |
| 11.10 | 42.27 | 5.80 | 22.14 | 11.98 | 169.24 | -18.25 | 72.43 | 0.3227 | -1159.0 | -332.0 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 11.25 | 169.16 | -18.33 | 74.70 | 0.3212 | -685.0 | -411.4 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 13.42 | 168.97 | -18.52 | 68.43 | 0.3336 | 959.0 | 765.8 | |
| 0.00 | 6.43 | 0.00 | 3.37 | 11.51 | 168.98 | -18.51 | 74.01 | 0.3250 | -727.0 | -674.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 6.26 | 169.12 | -18.37 | 90.46 | 0.3146 | 775.0 | 638.7 | |
| 2.99 | 67.46 | 1.57 | 35.47 | 11.23 | 168.71 | -18.78 | 75.03 | 0.3283 | 185.7 | 205.2 | |
| 0.79 | -28.00 | 0.42 | -28.00 | 11.48 | 168.14 | -19.35 | 74.65 | 0.3382 | 976.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 10.75 | 167.90 | -19.59 | 76.91 | 0.3397 | 789.0 | 632.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 12.31 | 167.52 | -19.96 | 72.71 | 0.3509 | 948.0 | 811.4 | |
| 0.70 | 1.50 | 0.37 | 0.79 | 12.79 | 167.45 | -20.03 | 71.44 | 0.3540 | 857.5 | 664.9 | |
| 0.00 | 1.76 | 0.00 | 0.93 | 12.63 | 167.40 | -20.09 | 71.89 | 0.3541 | 808.0 | 676.8 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 12.27 | 167.30 | -20.19 | 72.97 | 0.3542 | 1044.0 | 825.7 | |
| 0.00 | 1.76 | 0.00 | 0.93 | 11.45 | 167.33 | -20.16 | 75.21 | 0.3509 | 984.0 | 784.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 12.95 | 167.11 | -20.38 | 71.23 | 0.3599 | 796.0 | 581.6 | |
| 0.00 | 2.73 | 0.00 | 1.45 | 11.26 | 167.05 | -20.44 | 75.90 | 0.3547 | 876.0 | 836.5 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 10.96 | 167.04 | -20.45 | 76.75 | 0.3539 | 1060.0 | 907.9 | |
| 0.44 | 5.02 | 0.23 | 2.67 | 12.33 | 166.67 | -20.82 | 73.19 | 0.3643 | 919.8 | 849.6 | |
| 0.00 | 7.22 | 0.00 | 3.83 | 11.06 | 166.64 | -20.85 | 76.65 | 0.3606 | 884.0 | 890.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 13.58 | 166.03 | -21.45 | 70.36 | 0.3791 | 789.0 | 640.2 | |
| 0.00 | 2.11 | 0.00 | 1.13 | 13.21 | 166.00 | -21.49 | 71.31 | 0.3781 | 723.0 | 634.4 | |
| 5.64 | 26.16 | 3.00 | 13.93 | 11.13 | 166.14 | -21.35 | 76.69 | 0.3686 | 1061.3 | 851.8 | |
| 12.15 | -43.00 | 6.47 | -43.00 | 10.86 | 166.13 | -21.36 | 77.43 | 0.3681 | 1095.4 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.18 | 10.91 | 165.70 | -21.79 | 77.50 | 0.3750 | 608.0 | 468.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 10.69 | 165.68 | -21.81 | 78.07 | 0.3747 | 669.0 | 517.5 | |
| 0.00 | 1.76 | 0.00 | 0.94 | 12.01 | 165.51 | -21.98 | 74.69 | 0.3812 | 836.0 | 640.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 16.11 | 164.21 | -23.27 | 65.63 | 0.4185 | 660.0 | 503.3 | |
| 3.35 | 5.20 | 1.80 | 2.80 | 11.73 | 164.50 | -22.98 | 75.90 | 0.3959 | -956.5 | -750.3 | |
| 0.88 | 5.20 | 0.48 | 2.81 | 11.56 | 164.02 | -23.47 | 76.54 | 0.4029 | -948.0 | -763.0 | |
| 1.50 | 4.76 | 0.81 | 2.57 | 11.28 | 163.97 | -23.51 | 77.22 | 0.4029 | -1092.6 | -853.8 | |
| 0.00 | 2.55 | 0.00 | 1.38 | 10.91 | 163.77 | -23.71 | 78.21 | 0.4051 | -775.0 | -701.5 | |
| 0.00 | 2.20 | 0.00 | 1.19 | 10.99 | 163.53 | -23.95 | 78.10 | 0.4091 | -753.0 | -607.2 | |
| 1.32 | 16.82 | 0.72 | 9.20 | 12.35 | 162.90 | -24.58 | 75.10 | 0.4223 | 1093.8 | 771.6 | |
| 7.05 | -54.00 | 3.85 | -54.00 | 12.43 | 162.66 | -24.83 | 75.03 | 0.4263 | 984.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 11.13 | 162.58 | -24.91 | 78.09 | 0.4241 | 926.0 | 725.8 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 12.04 | 162.15 | -25.33 | 76.12 | 0.4329 | 914.0 | 741.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 12.37 | 161.98 | -25.50 | 75.45 | 0.4363 | 740.0 | 620.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 12.00 | 161.88 | -25.60 | 76.32 | 0.4368 | 727.0 | 548.2 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 12.41 | 161.71 | -25.78 | 75.45 | 0.4407 | 856.0 | 775.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 15.30 | 161.15 | -26.33 | 69.43 | 0.4589 | 772.0 | 637.5 | |
| 0.00 | 2.99 | 0.00 | 1.66 | 12.06 | 161.33 | -26.15 | 76.38 | 0.4454 | 827.0 | 681.1 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 13.99 | 161.05 | -26.44 | 72.29 | 0.4555 | 807.0 | 713.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 13.73 | 160.70 | -26.79 | 73.00 | 0.4597 | 731.0 | 562.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
