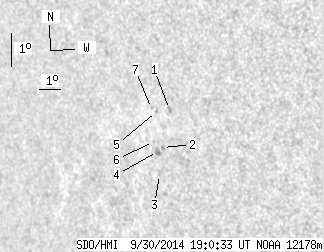

SDO HMI 2014-09-30 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.51 | 0.00 | 7.22 | -4.16 | 139.37 | -48.11 | 101.44 | 0.7599 | -609.6 | -569.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.72 | -3.40 | 139.85 | -47.63 | 100.58 | 0.7526 | -695.0 | -587.0 | |
| 0.00 | 1.23 | 0.00 | 0.94 | -4.59 | 139.44 | -48.04 | 102.01 | 0.7602 | -730.0 | -582.5 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -5.44 | 139.22 | -48.26 | 103.03 | 0.7648 | -538.0 | -555.0 | |
| 0.00 | 3.35 | 0.00 | 2.55 | -4.73 | 139.20 | -48.28 | 102.13 | 0.7632 | -707.0 | -653.7 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -3.51 | 139.26 | -48.23 | 100.57 | 0.7595 | -570.0 | -450.4 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -4.44 | 139.05 | -48.44 | 101.71 | 0.7641 | -614.0 | -535.7 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -3.44 | 139.04 | -48.45 | 100.41 | 0.7618 | -413.0 | -304.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
