SDO HMI 2014-09-30 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.29 | 352.10 | 104.07 | 586.78 | 15.31 | 260.68 | 73.75 | 284.01 | 0.9545 | 22.6 | -104.7 | |
|
previous
or next observation for the same group /

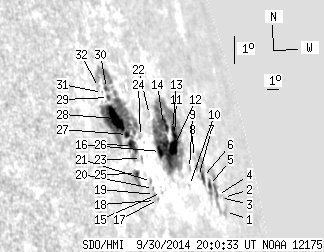

back to the solar disc SDO HMI 2014-09-30 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 6.76 | 12.51 | 266.58 | 79.64 | 281.45 | 0.9807 | 164.0 | 133.6 | |
| 0.00 | 0.35 | 0.00 | 0.89 | 12.93 | 266.75 | 79.82 | 281.89 | 0.9812 | 400.0 | 382.8 | |
| 0.00 | 1.59 | 0.00 | 3.84 | 12.98 | 266.29 | 79.36 | 281.91 | 0.9797 | 119.0 | 126.4 | |
| 0.79 | 23.95 | 1.85 | 54.81 | 13.08 | 265.92 | 78.98 | 281.99 | 0.9783 | -185.2 | -117.0 | |
| 2.11 | -4.00 | 4.67 | -4.00 | 13.49 | 265.12 | 78.19 | 282.34 | 0.9753 | -259.1 | 999999 | |
| 3.17 | 17.44 | 6.67 | 36.76 | 13.81 | 264.44 | 77.51 | 282.63 | 0.9727 | -215.7 | -76.6 | |
| 0.00 | 0.26 | 0.00 | 0.54 | 13.90 | 263.97 | 77.03 | 282.69 | 0.9707 | -411.0 | -488.0 | |
| 0.00 | 1.32 | 0.00 | 2.66 | 14.49 | 263.93 | 76.99 | 283.29 | 0.9704 | -242.0 | -179.2 | |
| 0.00 | 1.76 | 0.00 | 3.38 | 14.24 | 263.11 | 76.17 | 282.99 | 0.9671 | -260.0 | -314.2 | |
| 0.00 | 0.26 | 0.00 | 0.49 | 13.77 | 262.63 | 75.69 | 282.47 | 0.9651 | -460.0 | -460.3 | |
| 2.47 | 147.16 | 4.50 | 256.72 | 15.35 | 262.36 | 75.42 | 284.10 | 0.9635 | -38.5 | -289.3 | |
| 9.69 | -11.00 | 17.19 | -11.00 | 15.03 | 261.90 | 74.96 | 283.74 | 0.9614 | -548.3 | 999999 | |
| 1.76 | -11.00 | 3.20 | -11.00 | 15.55 | 262.31 | 75.38 | 284.30 | 0.9632 | -63.8 | 999999 | |
| 7.84 | -11.00 | 13.58 | -11.00 | 15.80 | 261.48 | 74.54 | 284.52 | 0.9593 | -557.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.66 | 13.90 | 259.52 | 72.58 | 282.45 | 0.9499 | 167.0 | 111.6 | |
| 4.93 | -11.00 | 8.05 | -11.00 | 15.07 | 260.42 | 73.49 | 283.72 | 0.9543 | -145.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 1.35 | 13.73 | 259.07 | 72.14 | 282.25 | 0.9476 | 340.0 | 279.3 | |
| 0.00 | 1.32 | 0.00 | 2.00 | 13.74 | 258.77 | 71.84 | 282.24 | 0.9459 | 394.0 | 304.1 | |
| 0.00 | 1.50 | 0.00 | 2.26 | 13.92 | 258.81 | 71.88 | 282.44 | 0.9461 | 452.0 | 367.8 | |
| 0.00 | 0.97 | 0.00 | 1.47 | 14.10 | 258.85 | 71.92 | 282.63 | 0.9463 | 441.0 | 367.3 | |
| 0.00 | 0.53 | 0.00 | 0.80 | 14.32 | 258.82 | 71.89 | 282.86 | 0.9460 | 396.0 | 322.8 | |
| 0.00 | 1.41 | 0.00 | 2.28 | 16.24 | 260.32 | 73.38 | 284.94 | 0.9535 | -453.0 | -425.0 | |
| 0.00 | 1.85 | 0.00 | 2.74 | 15.08 | 258.43 | 71.49 | 283.65 | 0.9437 | 157.0 | 215.0 | |
| 0.00 | 1.59 | 0.00 | 2.39 | 15.71 | 258.87 | 71.93 | 284.34 | 0.9460 | -316.0 | -288.0 | |
| 1.94 | 8.01 | 2.77 | 11.44 | 14.70 | 257.64 | 70.71 | 283.22 | 0.9393 | 619.1 | 408.1 | |
| 6.61 | 108.24 | 9.54 | 152.92 | 15.54 | 257.92 | 70.99 | 284.12 | 0.9408 | 441.2 | 95.2 | |
| 2.82 | -26.00 | 4.03 | -26.00 | 15.90 | 257.74 | 70.80 | 284.50 | 0.9397 | 315.3 | 999999 | |
| 17.61 | -26.00 | 24.49 | -26.00 | 16.47 | 257.07 | 70.14 | 285.10 | 0.9357 | 563.0 | 999999 | |
| 1.14 | 2.47 | 1.58 | 3.40 | 17.14 | 256.99 | 70.05 | 285.81 | 0.9351 | 378.5 | 379.8 | |
| 1.41 | 23.60 | 1.95 | 32.73 | 17.41 | 257.04 | 70.11 | 286.11 | 0.9354 | 324.6 | 9.2 | |
| 0.00 | 0.26 | 0.00 | 0.36 | 17.34 | 256.60 | 69.67 | 286.02 | 0.9328 | 543.0 | 562.3 | |
| 0.00 | 1.59 | 0.00 | 2.13 | 17.52 | 256.39 | 69.46 | 286.21 | 0.9315 | 653.0 | 534.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
