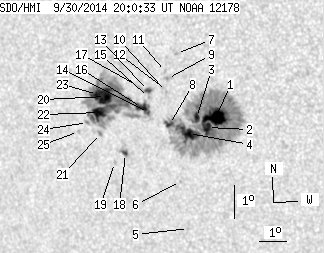

SDO HMI 2014-09-30 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.44 | 525.96 | 66.04 | 321.92 | -1.47 | 151.75 | -35.19 | 101.94 | 0.5907 | 302.0 | 143.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.07 | 321.10 | 13.83 | 193.39 | -1.36 | 153.57 | -33.37 | 102.48 | 0.5653 | 1343.4 | 431.0 | |
| 8.19 | -1.00 | 4.93 | -1.00 | -1.69 | 153.27 | -33.66 | 102.90 | 0.5706 | 989.4 | 999999 | |
| 4.67 | -1.00 | 2.82 | -1.00 | -1.41 | 152.88 | -34.05 | 102.26 | 0.5751 | 804.6 | 999999 | |
| 20.08 | -1.00 | 12.20 | -1.00 | -1.91 | 152.58 | -34.36 | 102.99 | 0.5810 | 860.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -4.82 | 152.45 | -34.48 | 107.68 | 0.5943 | -315.0 | -288.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -3.40 | 152.23 | -34.70 | 105.28 | 0.5913 | -590.0 | -444.8 | |
| 0.00 | 1.41 | 0.00 | 0.85 | 0.48 | 152.16 | -34.77 | 98.79 | 0.5792 | 768.0 | 640.3 | |
| 3.61 | -1.00 | 2.21 | -1.00 | -1.69 | 151.89 | -35.05 | 102.32 | 0.5897 | 655.5 | 999999 | |
| 0.00 | 3.43 | 0.00 | 2.10 | -0.30 | 151.83 | -35.10 | 99.99 | 0.5861 | 755.0 | 439.8 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -0.69 | 151.79 | -35.14 | 100.63 | 0.5878 | 743.0 | 642.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -0.09 | 151.76 | -35.17 | 99.61 | 0.5865 | 527.0 | 464.1 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -0.58 | 151.65 | -35.29 | 100.39 | 0.5895 | 546.0 | 444.4 | |
| 2.11 | 4.58 | 1.30 | 2.82 | -0.71 | 151.13 | -35.80 | 100.41 | 0.5970 | 861.0 | 612.3 | |
| 1.41 | 175.17 | 0.87 | 110.08 | -1.38 | 151.12 | -35.82 | 101.50 | 0.5992 | 713.4 | -425.2 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -0.92 | 151.13 | -35.81 | 100.76 | 0.5977 | 756.0 | 731.3 | |
| 7.49 | -14.00 | 4.64 | -14.00 | -1.24 | 150.86 | -36.07 | 101.19 | 0.6023 | 533.5 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -0.61 | 150.76 | -36.18 | 100.13 | 0.6018 | 391.0 | 314.5 | |
| 1.94 | 6.43 | 1.22 | 4.03 | -2.68 | 150.22 | -36.71 | 103.24 | 0.6157 | 720.1 | 383.5 | |
| 0.00 | 1.50 | 0.00 | 0.95 | -2.99 | 149.80 | -37.14 | 103.54 | 0.6224 | 464.0 | 346.6 | |
| 13.91 | -14.00 | 8.76 | -14.00 | -1.00 | 149.51 | -37.42 | 100.32 | 0.6198 | -1163.6 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.34 | -2.14 | 149.30 | -37.64 | 102.03 | 0.6262 | 1.0 | -1.5 | |
| 11.98 | -14.00 | 7.58 | -14.00 | -1.51 | 149.28 | -37.66 | 101.03 | 0.6245 | -852.5 | 999999 | |
| 8.98 | -14.00 | 5.68 | -14.00 | -0.96 | 149.21 | -37.72 | 100.16 | 0.6238 | -887.6 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.24 | -1.84 | 148.81 | -38.12 | 101.39 | 0.6317 | -543.0 | -413.2 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -2.14 | 148.46 | -38.48 | 101.72 | 0.6373 | -699.0 | -489.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
